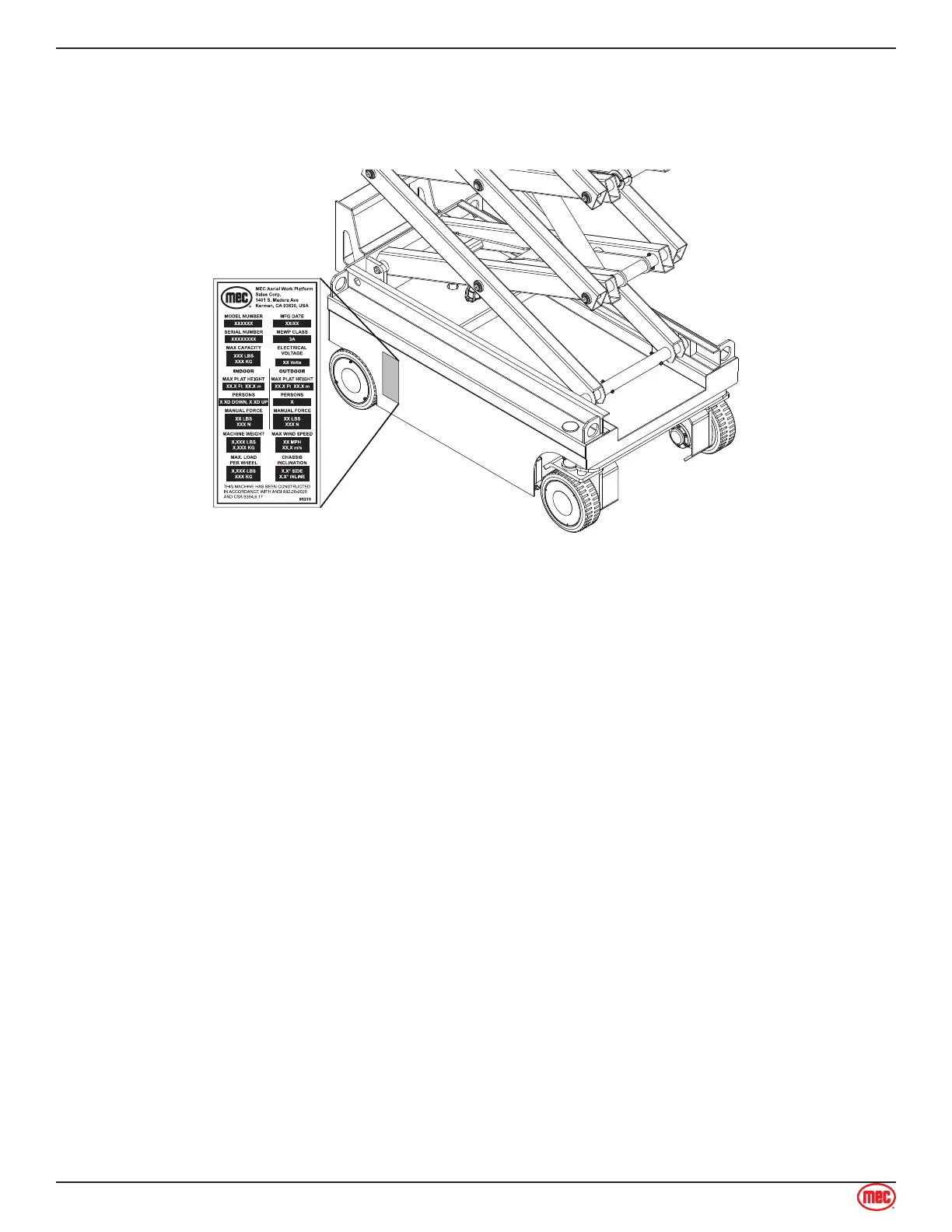

Serial Plate
The serial plate is attached to the machine at the time of manufacture. Important information about
the machine is recorded on the serial plate.
ART_4999
Serial Plate Description
MODEL NUMBER: Identies the machine.
MFG DATE: Month / Year of manufacture.
SERIAL NUMBER: Identies a machine with reference to its original owner. Refer to the number when requesting
information or ordering parts.
MODEL YEAR: Machine model year.
MAX. CAPACITY: The maximum safe load (material, persons + equipment) which can be correctly placed on the
platform at any elevation.
ELECTRICAL VOLTAGE: The voltage at which this machine operates.
MAX. PLATFORM HEIGHT (INDOOR): The indoors maximum attainable height measured from level ground
surface to platform oor.
PERSONS (INDOOR): The maximum number of occupants indoors.
MANUAL FORCE (INDOOR): Amount of manual force need to move machine indoors.
MAX. PLATFORM HEIGHT (OUTDOOR): The outdoors maximum attainable height measured from level ground
surface to platform oor.
PERSONS (OUTDOOR): The maximum number of occupants outdoors.
MANUAL FORCE (OUTDOOR): Amount of manual force need to move machine indoors.
MACHINE WEIGHT: The weight of the machine with no options.
MAX WIND SPEED: The maximum wind speed for safe working conditions.
MAX. LOAD PER WHEEL: The maximum safe weight applied to each wheel. Calculated with all available options
installed. Fw = 30% (Wm + Wc + Wopt)
CHASSIS INCLINATION: The maximum amount of tilt for safe working conditions.
