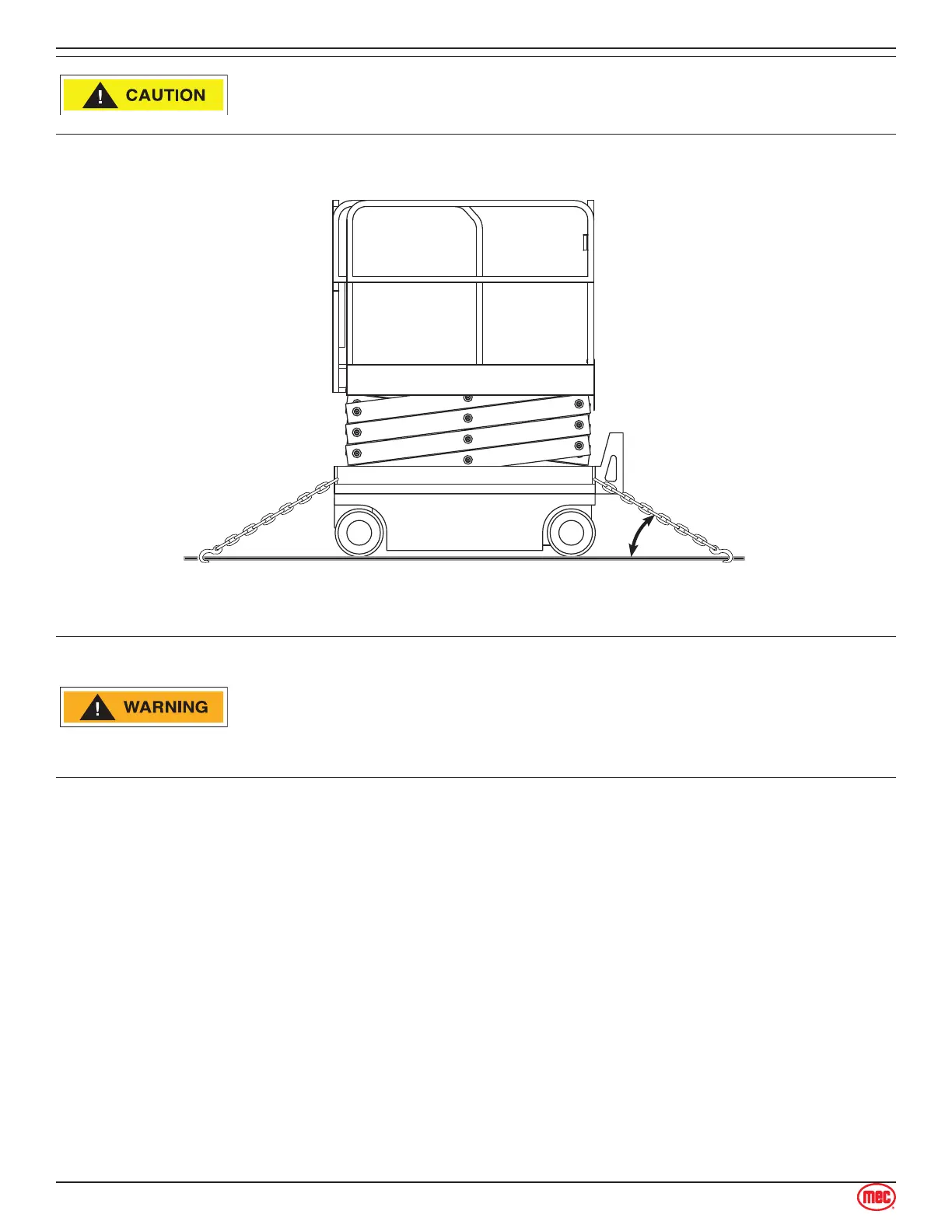

Ensure that angle of each hold-down chain or strap does not exceed 30°
relative to the trailer deck.
ART_5063
Truck Tie Down
Minimum 4 chains of adequate capacity
MAXIMUM
ANGLE
30°
30°
Lifting Instructions
Only qualied riggers should rig and lift the machine.
Ensure that the crane, loading surfaces, spreader bars, cables, chains
and straps are of sucient capacity to withstand the machine weight.
See the serial plate for the machine weight.
• Fully lower the platform. Be sure the deck extension is retracted and the controls and component
trays are closed and secure. Remove all loose items from the machine.
• Determine the center of gravity of the machine.
• Attach rigging to the designated lift points only.
