Serial Plate Location
The serial plate is attached to the machine at the time of manufacture. Important information about
the machine is recorded on the serial plate. The Serial Plate is located on the side of the chassis
below the Base Controls.

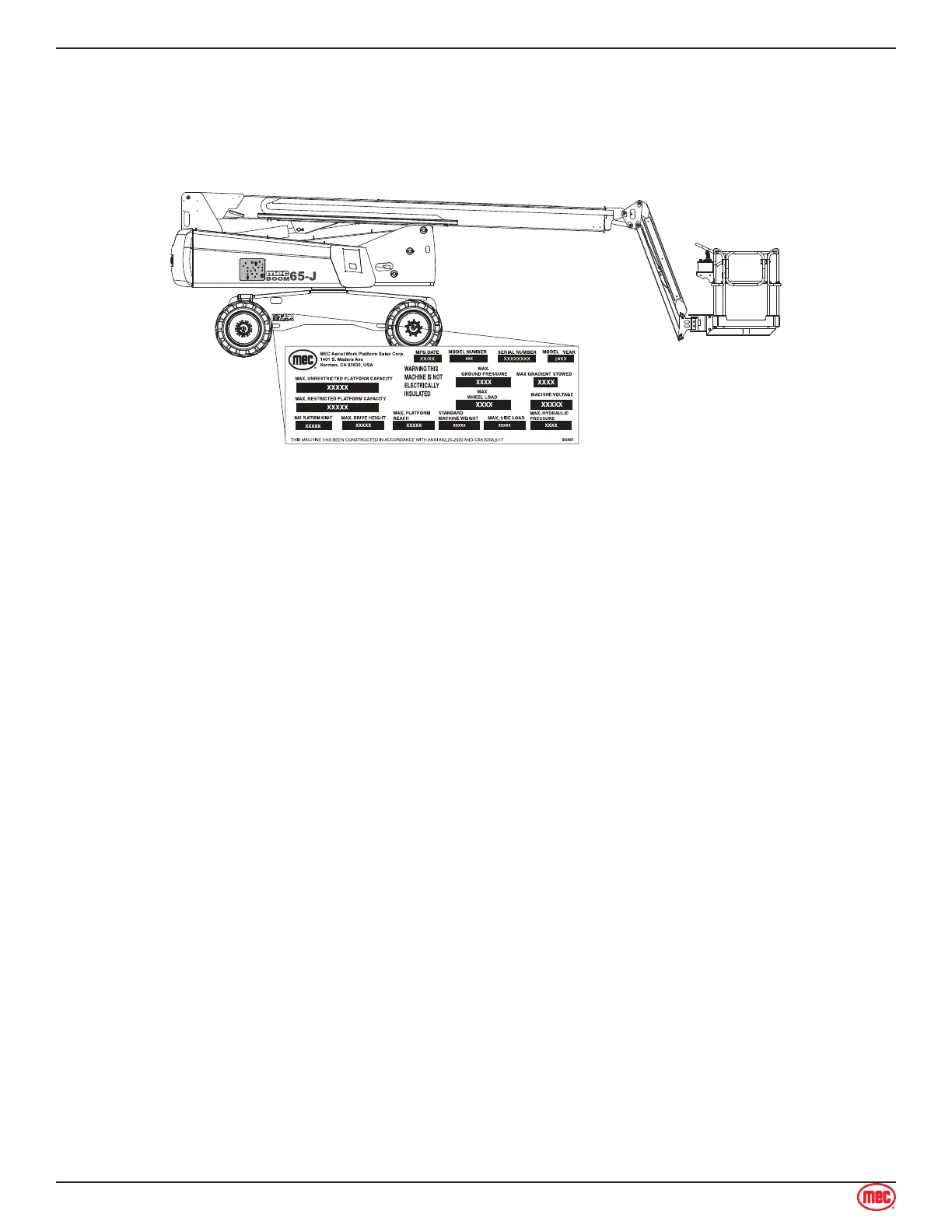

ART_4746
Serial Plate Description
MFG DATE Month / Year of manufacture
MODEL NUMBER Identies the machine.
SERIAL NUMBER Identies a machine with reference to its original owner. Refer to the number
when requesting information or ordering parts.
MODEL YEAR Identies the model year of the machine.
MAX. PLATFORM
UNRESTRICTED CAPACITY
The maximum safe load (material, persons + equipment) which can be
correctly placed on the platform within any range of motion.
MAX. PLATFORM
RESTRICTED CAPACITY
On optionally equipped machines, the maximum safe load (material,
persons + equipment) which can be correctly placed on the platform
when used within a restricted range of motion.
MAX. HYDRAULIC
SYSTEM PRESSURE
The maximum pressure generated by the machine’s hydraulic system.
MAX. WHEEL LOAD The maximum safe weight applied to each wheel. Calculated with all available
options installed. Fw = 30% (Wm + Wc + Wopt)
MACHINE VOLTAGE The electrical voltage at which the machine operates.
MAX. PLATFORM HEIGHT The maximum attainable height measured from level ground surface to
platform oor.
MAX. DRIVE HEIGHT The maximum safe platform height at which the machine can be driven.
MAX. PLATFORM REACH The maximum horizontal outreach of the extended boom.
STANDARD MACHINE WEIGHT The weight of the machine with no options.
MAX. GROUND
PRESSURE
The amount of pressure exerted on the surface at each wheel. Calculated with all
available options installed. Pmax = 30% (Wm + Wc + Wopt) / Contact Area
MAX. SIDE LOAD The maximum safe force that the occupant can exert laterally on an object outside
the platform.
