Securing to Truck or Trailer for Transport
• Turn the key Selector Key Switch to OFF and remove the key before transport.
• Turn the Battery Disconnect Switch to OFF before transport.
• Inspect the entire machine for loose or unsecured items.
• Secure the chassis.
• Engage the Rotation Lock.
• Secure the platform.
Securing the Chassis
Make sure each of your chains is rated to hold the machine’s weight (see serial number plate or
Specications). Use at least 4 chains.
Do not attach chain hooks directly to the machine. Loop the chain through the tie-down point and
connect the chain hook to the chain.
Be sure chains are arranged so that they do not damage the machine.
Engaging The Rotation Lock
Steering
Wheels

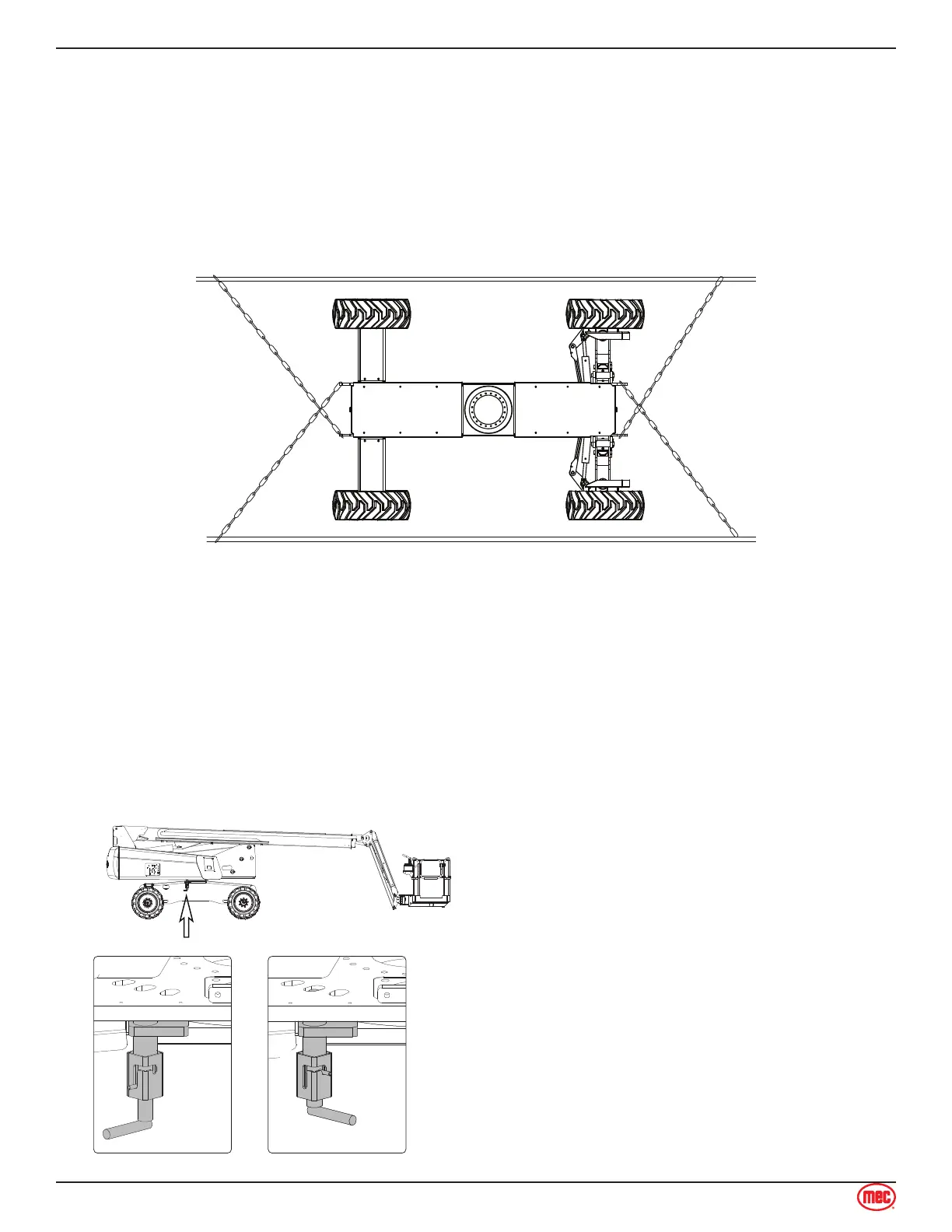

ART_4743
Rotation Lock
Disengaged
Engaged
Before transport, rotate the turntable so that one
of the three locking holes aligns with the Rotation
Lock located on the chassis. The lock holes are
located on the bottom of the Controls Module.
The Rotation Lock is located on the chassis
behind the left front wheel.
Lift the Rotation Lock using the attached pin,
then rotate to the right and lower it into the
shallow depression to engage.
See illustration.
Disengage the Rotation Lock before operation.
