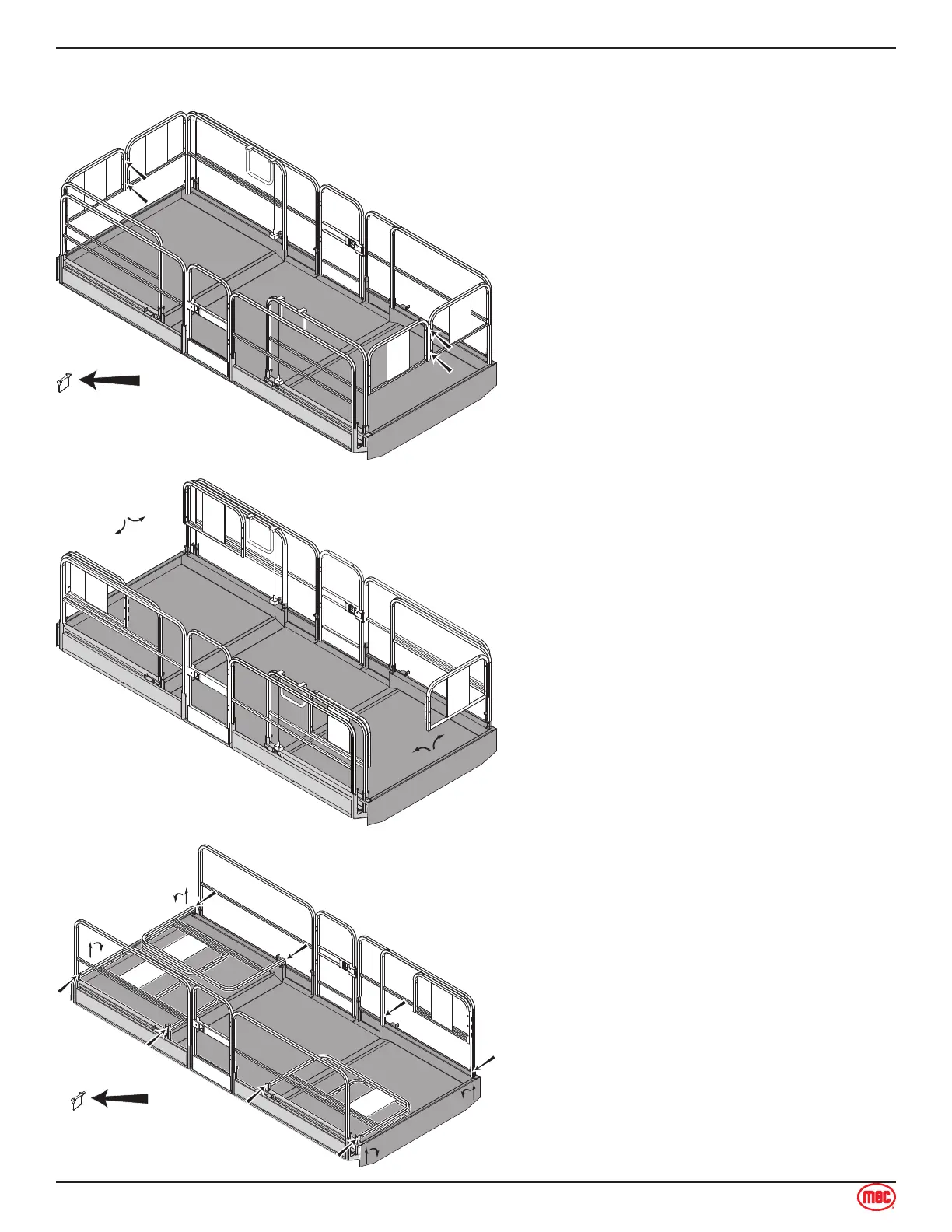

Fold Down Platform Railings
ART_3013
4 places
1
Remove the safety snap pins that
secure the front and rear deck
extension rail panels together.
Lift the bracket connecting the tops
of the deck extension rail panels.
ART_3014
2
Swing the deck extension rail panels
inward next to the deck extension
side rails and secure with a safety
snap pin.
ART_3015
8 places
3
Remove the safety snap pins from
the deck extension side rail bases.
Lift the deck extension side rails,
pivot, and place on the platform
floor.
