Disassembly and Assembly
41
10 Disassembly and Assembly

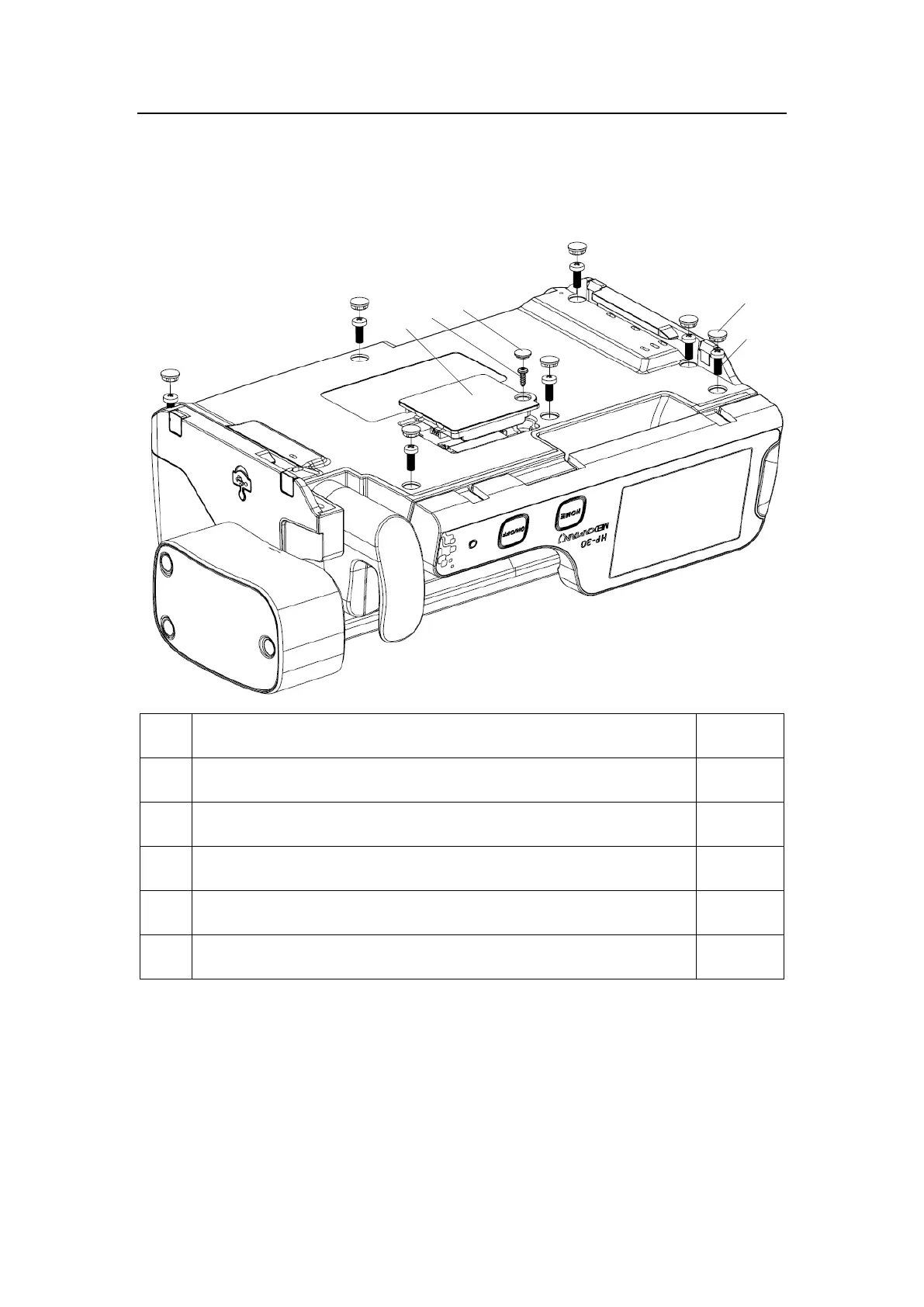

10.1 Dismantling the Lower Shell Small Cover Plate for Upgrade and Lower Shell
Screws
NO.
Name
Quantity
1
HP-30 lower shell small cover
1
2
PT2.3*6 cross recessed pan head drilling PT thread pressping screw
1
3
Small cover plate hole plug
1
4
Lower shell hole plug
7
5
PM3*8 cross recessed small pan head machine thread screw
7
1) Dismantle the hole plug (3) of the HP-30 small cover plate for upgrade and PT2.3*6 pressping
screw (2).
2) Dismantle the HP-30 lower shell small cover plate for upgrade (1), and then upgrade the pump
software and dismantle the main FFC.
3) Remove the seven HP-30 lower shell hole plugs (4) and the seven PM3*8 machine thread
screws (5). (To dismantle only the upper shell, you only need to remove four screws.)
3
1
2
4
5
