List of Spare Parts
Confidential Information of MEDCAPTAIN MEDICAL TECHNOLOGY CO., LTD. 63/ 82
11 List of Spare Parts
Note: For the disassembly and assembly procedure of spare parts, see the corresponding section listed in
the following table.
No.
Component
Name
Component
Code
Spare Parts
Name

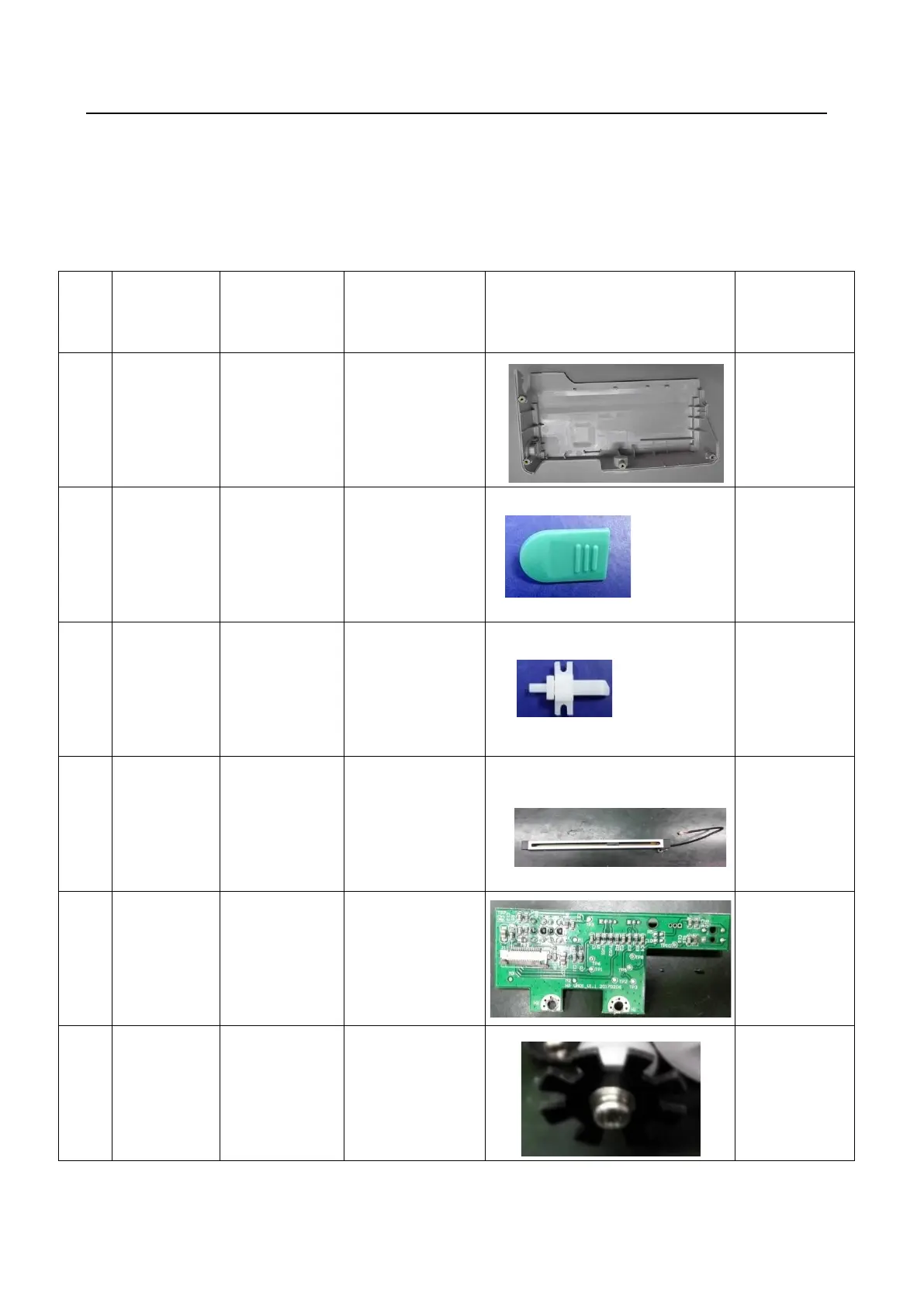

Spare Parts Picture
Disassembly
and Assembly
Procedure
1
Upper shell
assembly
1404-00073-01
HP-30 upper shell
Section 8.2
2
Upper shell
assembly
1404-00089-01
HP-30 shifting
block plate
Section 8.16
3
Upper shell
assembly
1202-00061-01
HP fastener and
fastener seat
Section 8.16
4
Middle
separation
assembly
1204-00098-01
HP-30 full-trip
resistance-type
position sensor
Section 8.4
5
Middle
separation
assembly
1204-00004-01
HP-30 speed
measuring PCBA
Section 8.12
6
Middle
separation
assembly
1402-00017-01
HP-30 speed
measuring
encoding disk
Section 8.12
