MEDCAPTAIN HP-30 - Drive Assembly and Middle Plate Removal

Disassembly and Assembly
46

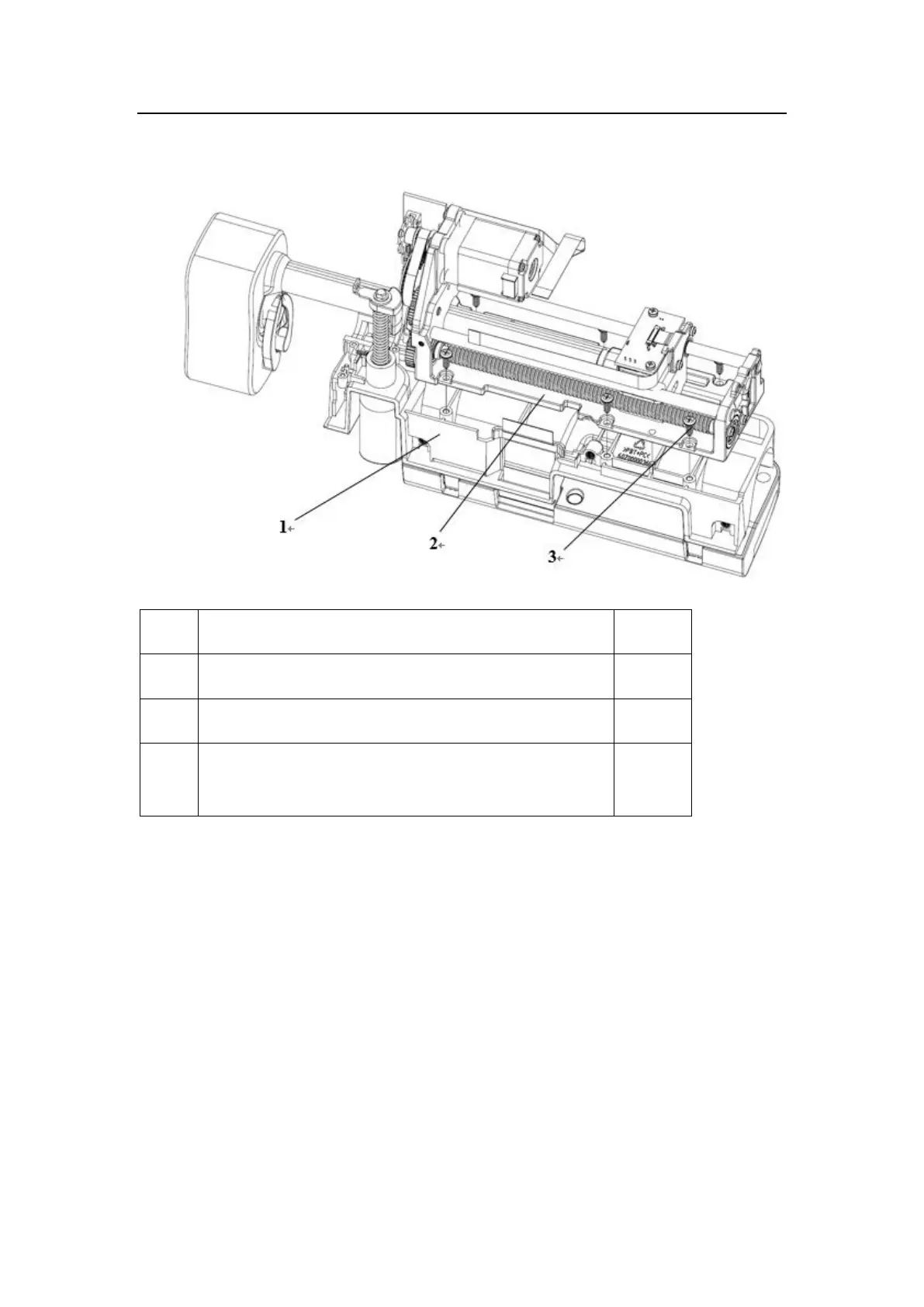

10.6 Dismantling the Drive Assembly and Middle Plate Assembly
No.
Name
Quantity
1
HP-30 middle plate assembly
1
2
HP-30 drive assembly
1
3
PT3*8 cross recessed pan head drilling PT thread pressping
screw
6
1) Remove the six pressping screws (3).
2) Separate the HP-30 drive assembly (2) from the HP-30 middle plate assembly (1).
