MEDCAPTAIN HP-30 - Trip Potentiometer Removal

Disassembly and Assembly
44
10.4 Dismantling the Trip Potentiometer
No.
Name
Quantity
1
PM2.5*6 cross recessed small pan head machine thread
screw+spring washer+flat washer assembly
1
4
PM2*14 cross recessed small pan head machine thread screw
1
3
HP-30 full-trip resistance-type position sensor
1

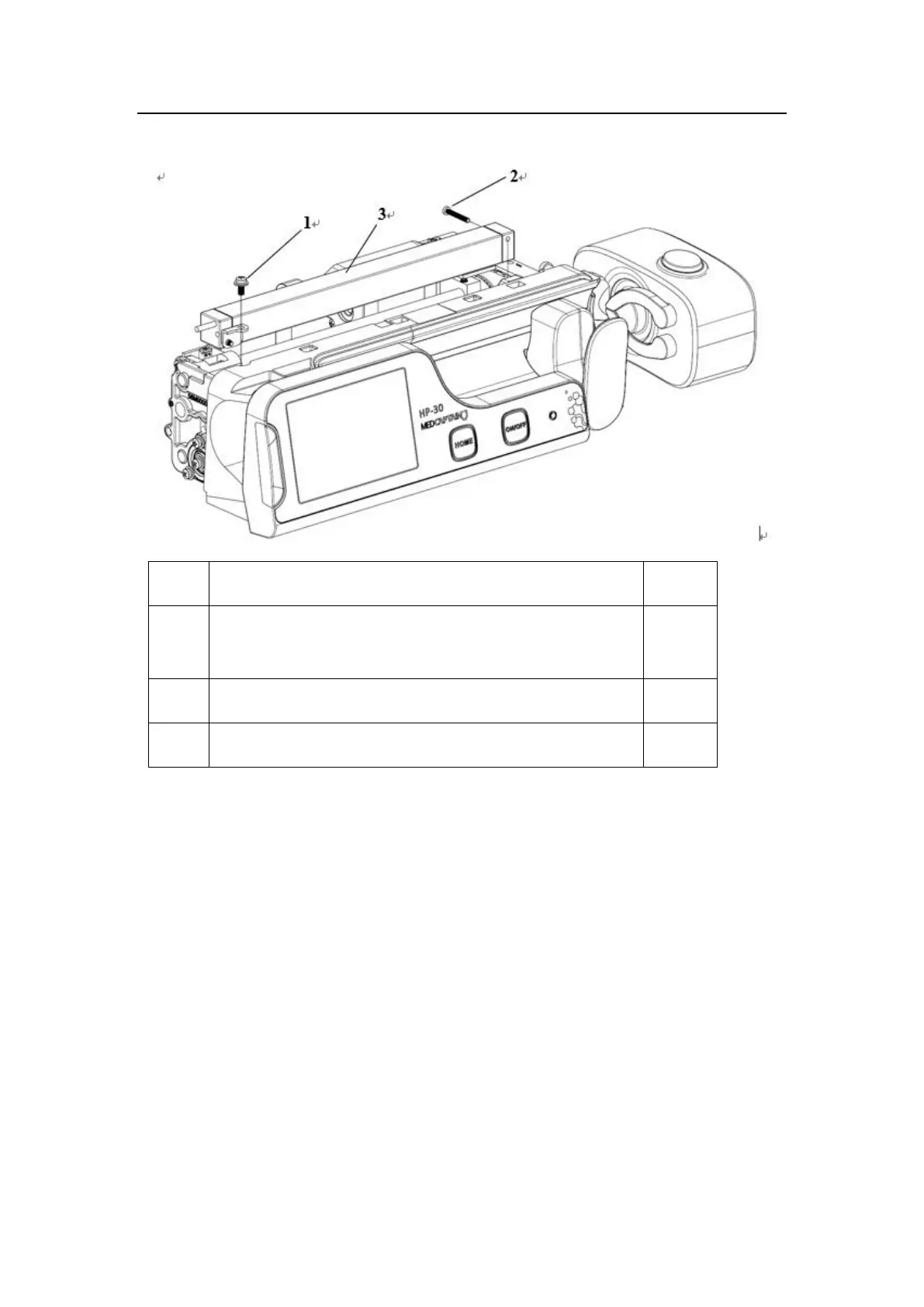

1) Remove screws 1 and 2 that fasten the trip potentiometer.
2) Remove the connection cable of the trip potentiometer from the main board, and take down the
trip potentiometer.
