MEDCAPTAIN HP-30 - Speed Measuring Board and Motor Removal

Disassembly and Assembly
Confidential Information of MEDCAPTAIN MEDICAL TECHNOLOGY CO., LTD. 56/ 82

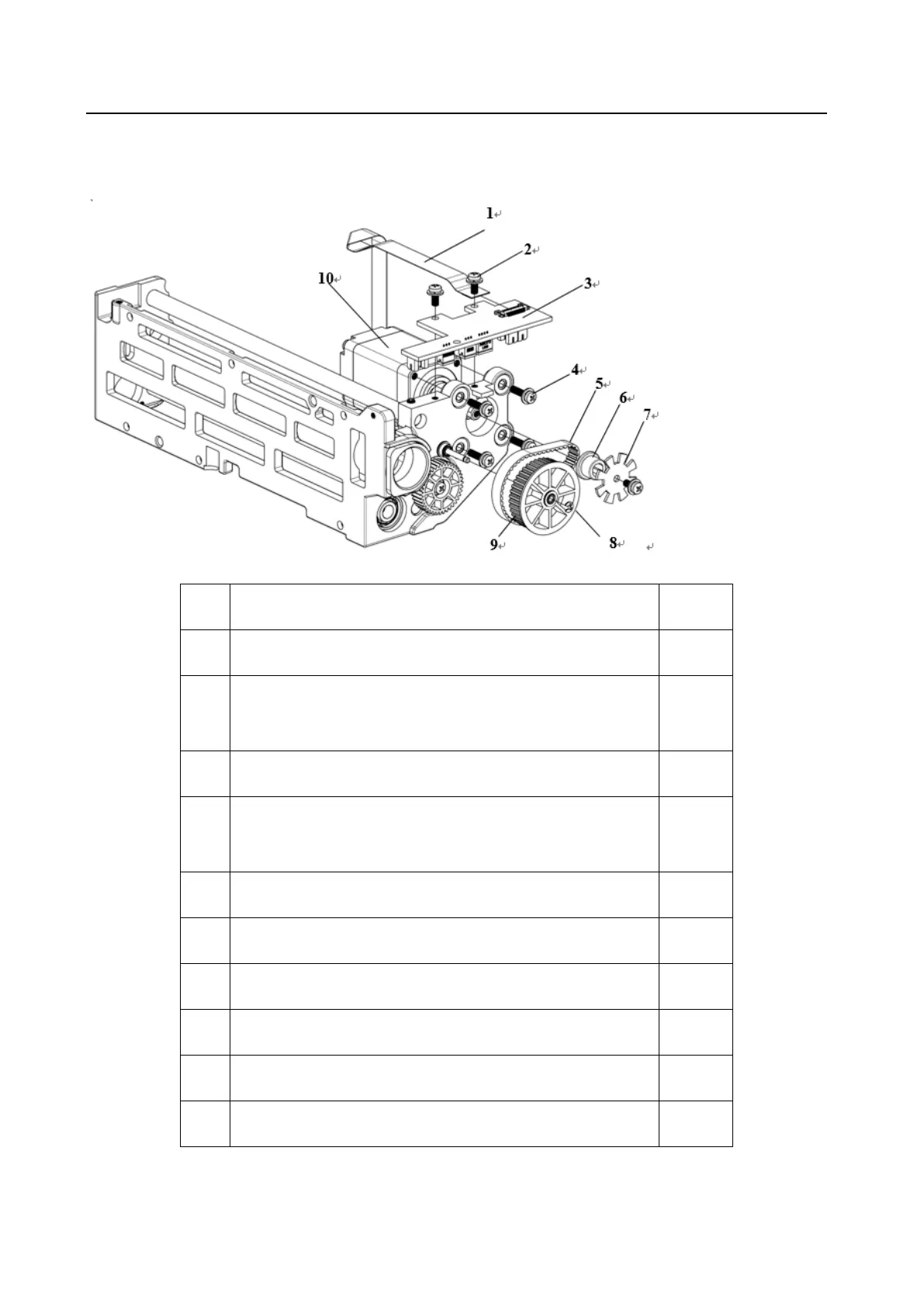

10.12 Dismantling the Speed Measuring Board and Its Connection FFC, Synchronous Cog Belt, and
Main Motor
No.
Name
Quantity
1
HP-30 speed measuring board connection FFC
1
2
PM2.5*6 cross recessed small pan head machine thread
screw+spring washer+flat washer assembly
3
3
HP-30 speed measuring PCBA
1
4
PM2.5*10 cross recessed small pan head machine thread
screw+spring washer+flat washer assembly
4
5
Synchronous cog belt
2
6
HP-30 synchronous pulley distance sleeve
1
7
HP-30 speed measuring encoding disk
1
8
ø1.5 snap ring
1
9
HP-30 jokey pulley of synchronous pulley
1
10
HP-30 main motor assembly
1
