Using the provided cables, connect each Trigger input jack on the rear panel of the module, and make sure each
pad is connected to its corresponding Trigger input jack.
Note:
1. The voice of hi-hat pad hitting is controlled by hi-hat pedal. Similar to a real drum kit, the hi-hat pad functions
as an 'open hi-hat' when the pedal is stepped. When the pedal is released, it functions as a 'closed hi-hat' .
2. The valid striking area of a cymbal pad (ride, crash or hi-hat) is near the edge of the pad, which is different from
other pads.
Caution!
To prevent electric shock and damage to the device, make sure the power is switched OFF
on the drum and all related device before making any connection.
Setup

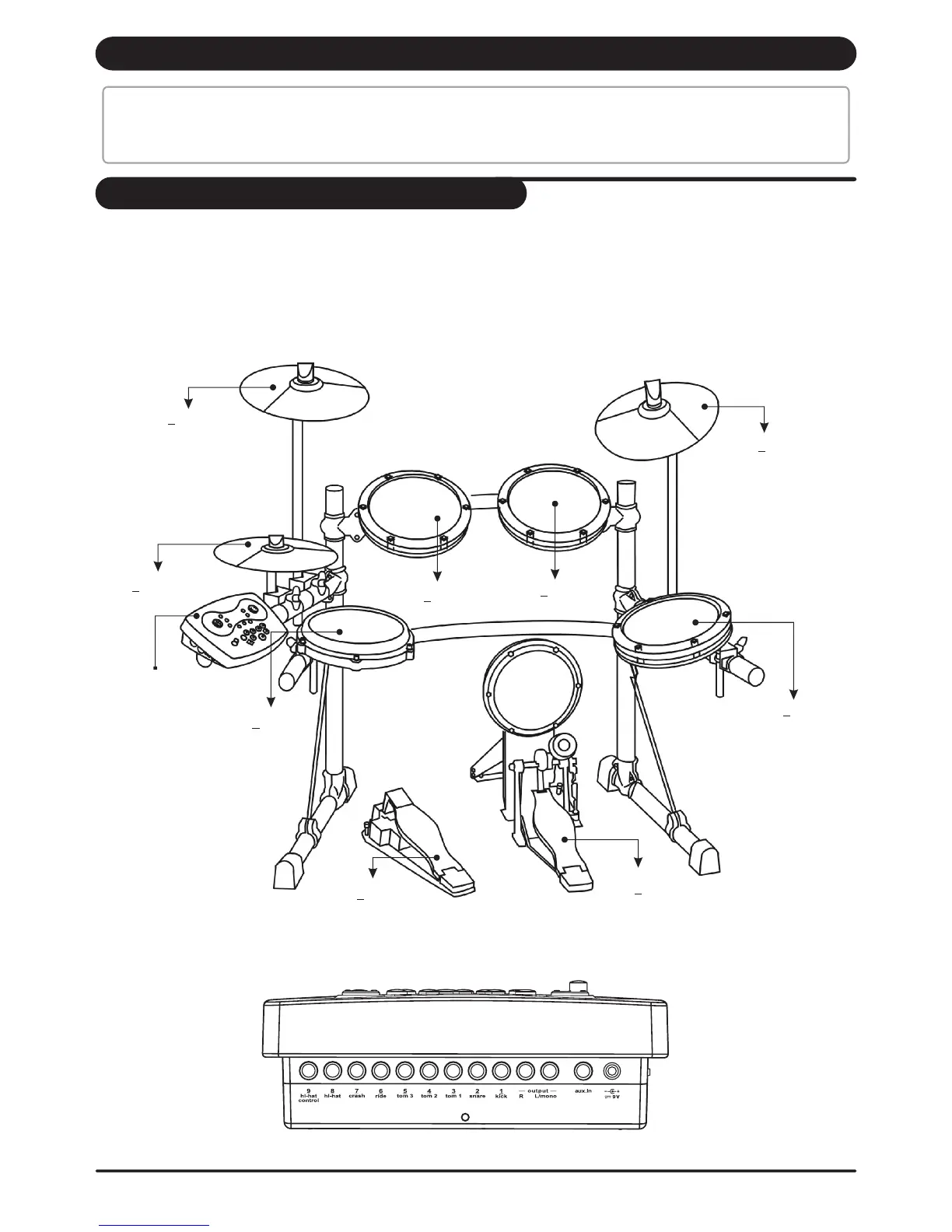

Connect the pads and the pedal
to 9 hi-hat
control
to 1 kick
to 7 crash
to 8 hi-hat
to 3 tom 1
to 4 tom 2
to 5 tom 3
to 6 ride
to 2 snare
Drum Module
6
To Next Page
