11.2 Installing the JTAG adapter

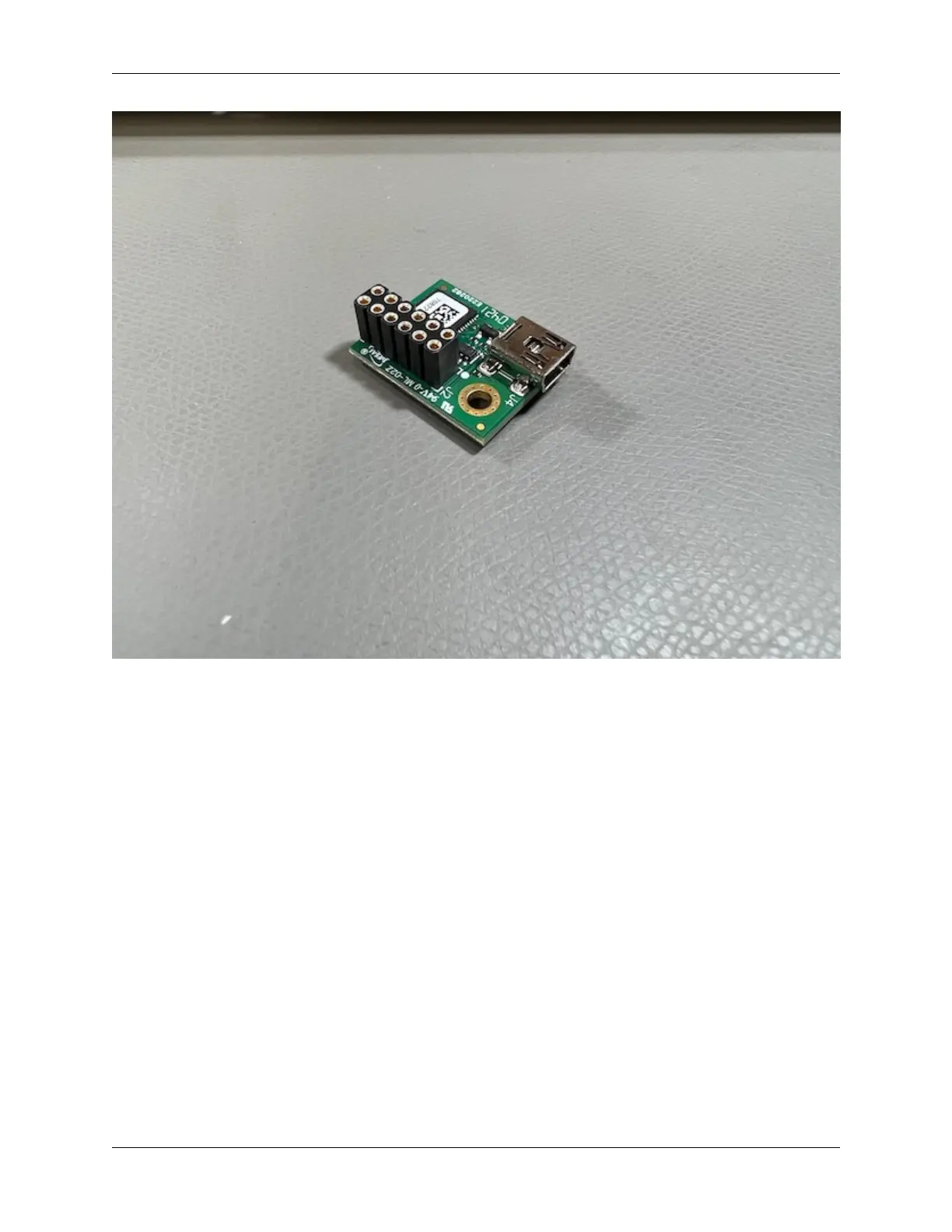

You will have to open the MEGA65 case to connect the adapter to the 12-pin JTAG connector on the main board, in the
back right corner. (See Opening the MEGA65 case for an annotated photo of the main board.) The adapter connects
with the mini-USB connector facing to the right.
