Double heading
This unit can be paired with another for more complex layouts. When paired one unit becomes the
master and the other the slave. The slave units toggle switches and memory functions are disabled;
however the on-board programming and servo reversing function as normal.
What is double heading?

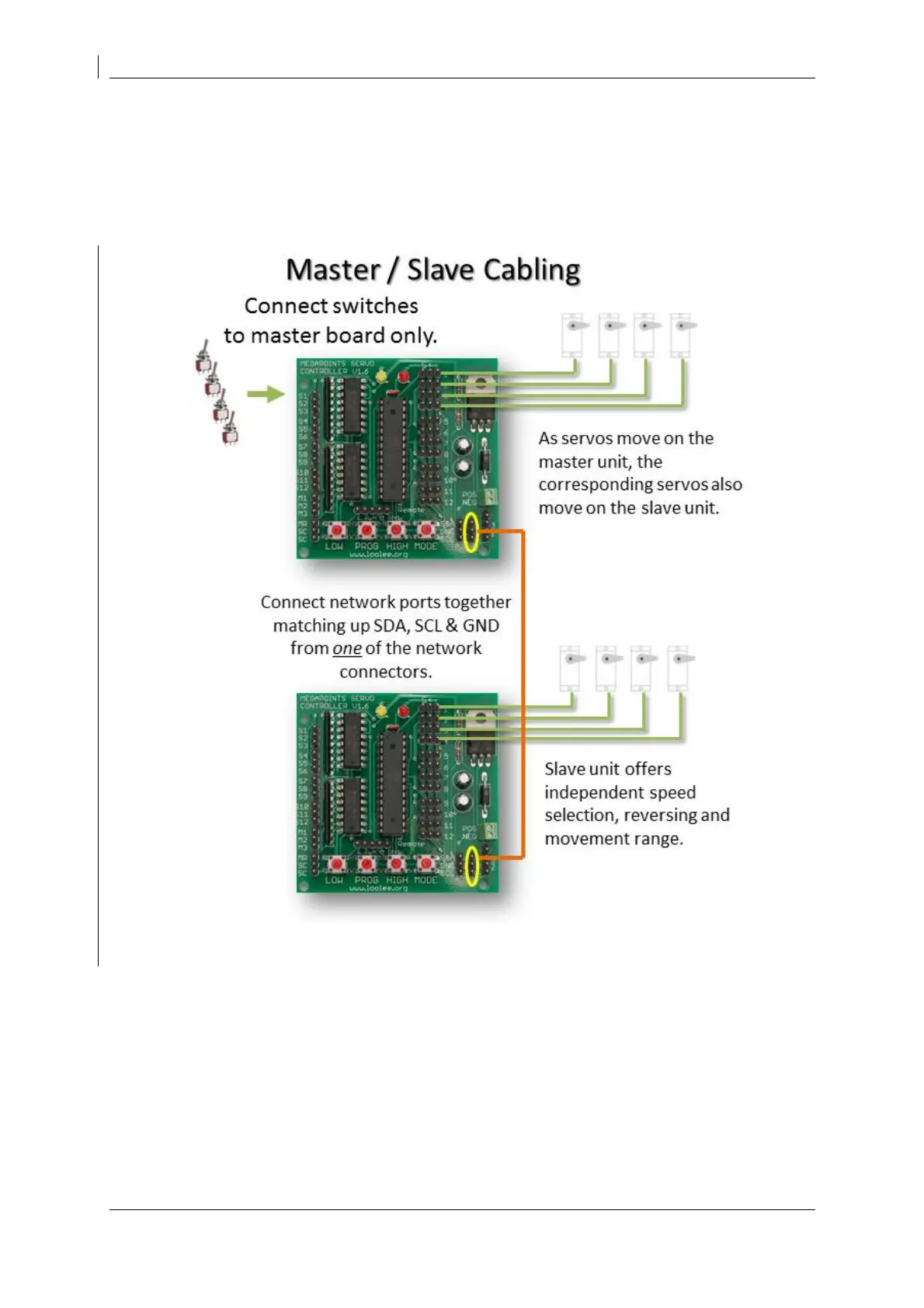

When in a double header configuration the switch inputs from the master also operate the slave
unit. Each servo channel is linked on both units so that when servo 1 is moved on the master, it will
also move on the slave unit. This means that on large or complex layouts such as pyramid or
rhombus fiddle yards as one set of points is opened at one end of the track, the corresponding
points are moved in synchronisation thus preventing the need for complex interlock mechanisms.
Factory reset (when servos mounted on baseboard)
With the unit powered off, hold down the LOW and HIGH buttons and turn the unit on. The red light
will blink for about 5 seconds indicating a factory reset. This will also reset the memories to factory
To Next Page
