NOTE: Master units simultaneously communicate with all 16 network addresses. It doesn’t matter
what slave address is programmed, the master will find it. Further expansion and control panel
headers will require each of the slaves to have a unique address.
NOTE: The pop-on switch board has an ON position marked on the switch, this is synonymous with
CLOSED in the above chart.

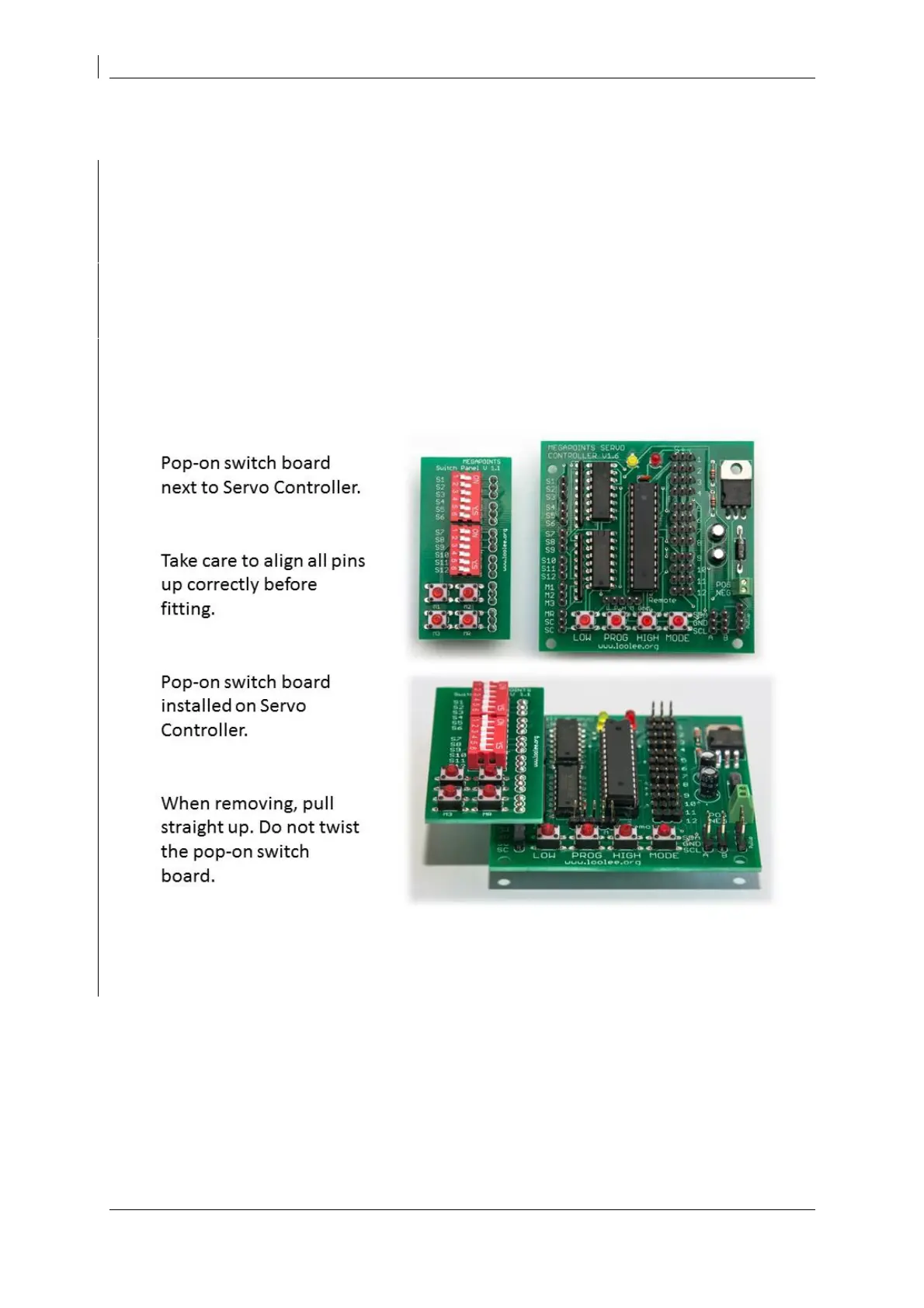

Pop-on switch board (optional)
The pop-on switch board simplifies network address setting if using the MultiPanel with many
MegaPoints Servo Controllers. When connected it attaches all 12 toggle switches and the four
memory/speed pushbuttons in a single connector so that the servo speed and network address can
be configured quickly. Once configured the pop-on switch board can be removed.
