Two identical cables will connect to the memory pushbuttons and switch common (M1, M2, M3, MR
& SC). See picture for cable identification. NOTE: There are two “SC” connectors. These are identical.
Remote setup connector

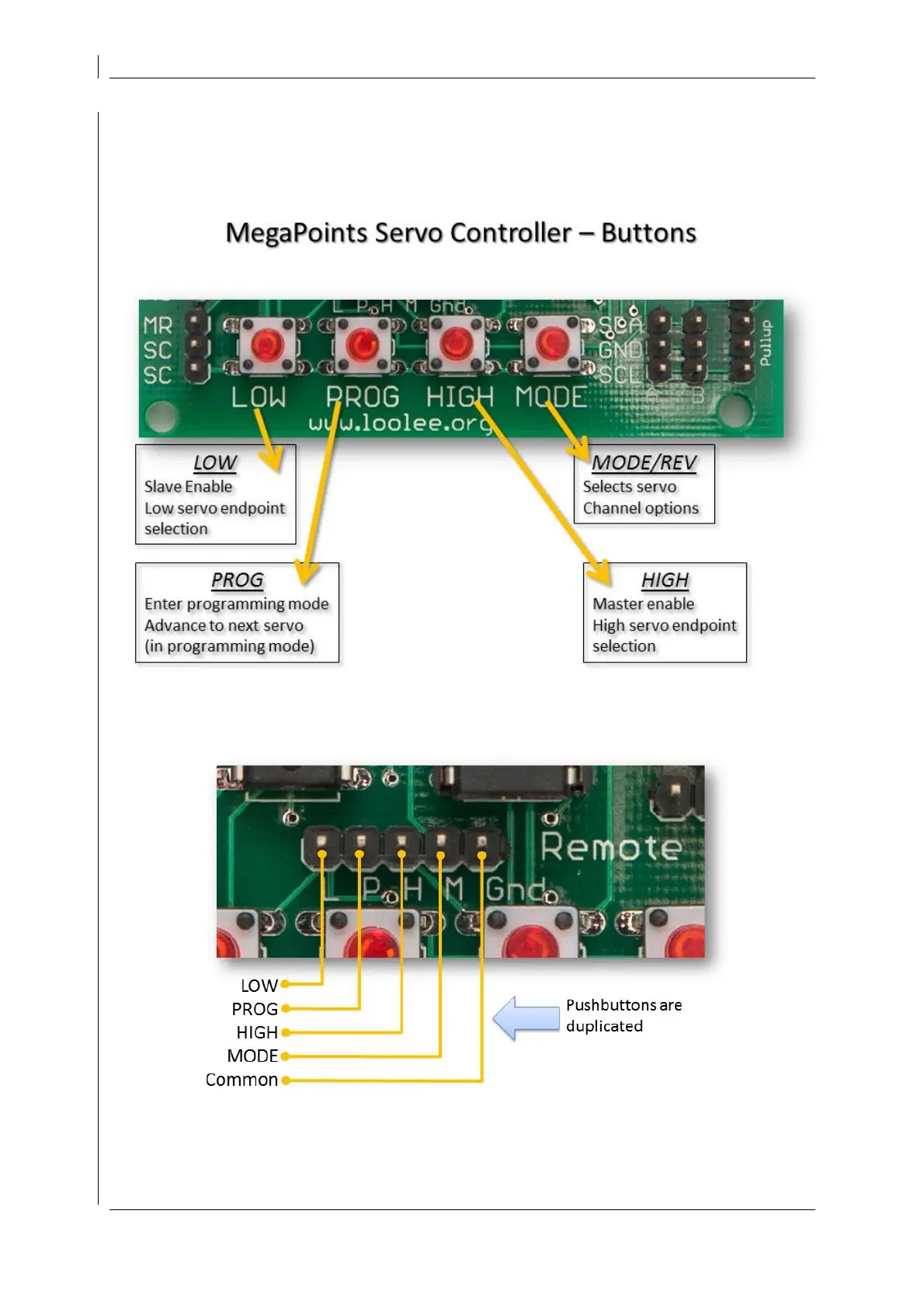

Just above the four setup buttons you will observe the 5 pin remote setup connector. This is an
optional feature and allows you to place the board in an inaccessible location yet retain the ability to
reconfigure all settings remotely.
