DLRO10HD and DLRO10HDX
6
Overview
Overview
This section details an over view of the instrument:

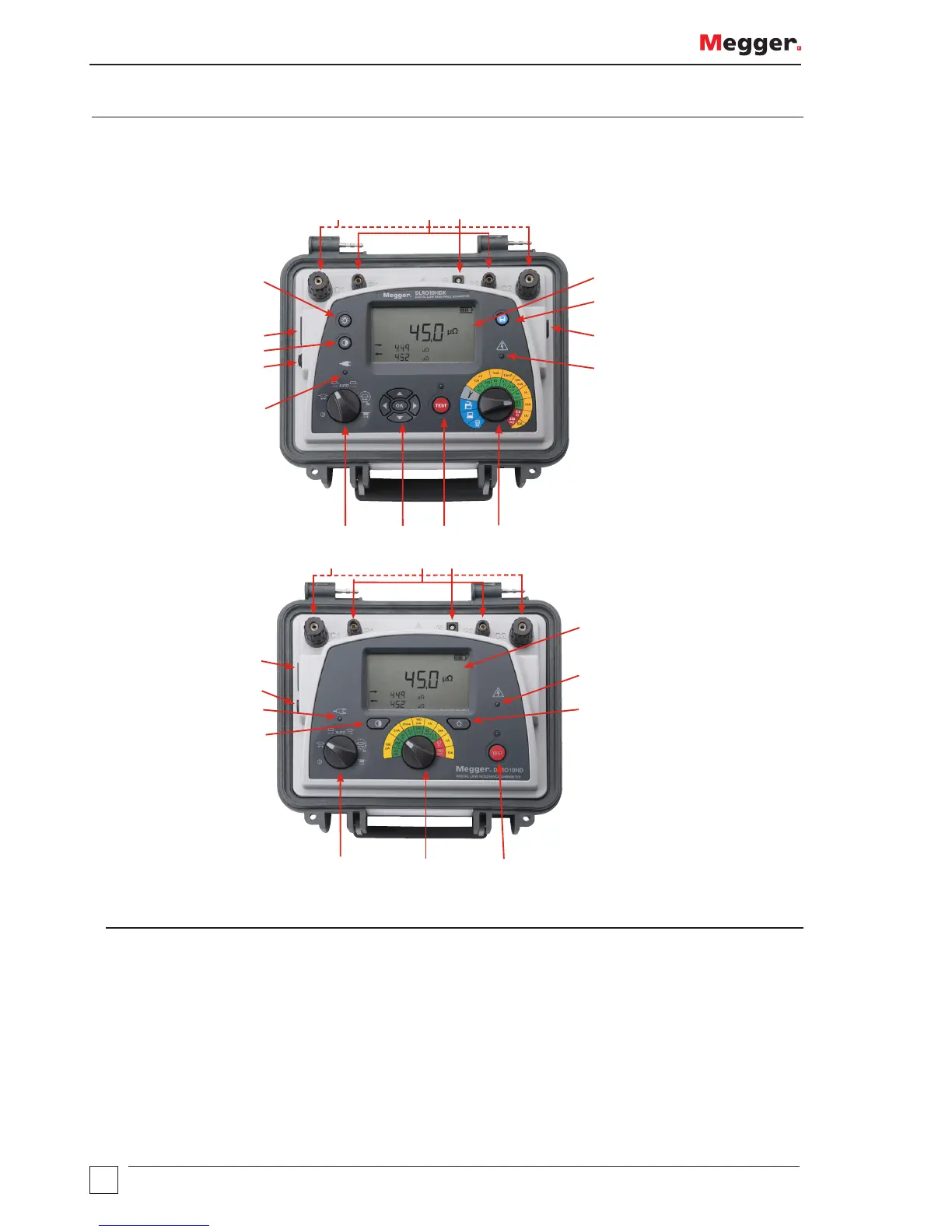

Controls and Connections
DLRO10HDX
3
1 2
4
6
5
7
89
1011
12
13
14
15
16
DLRO10HD
1 2
4
7
16
9811
14
12
13
15
3
Item Description Item Description
1 Current Terminals 9 Test button (Start and stop tests)
2 Potential Terminals 10 Navigation keypad (setup and stored results)
3 Test Lead LED Cable 11 Test modes and Off rotary switch
4 Display 12 Mains Power On LED
5 Save Button 13 Fuse
6 USB socket (download records) 14 Contrast button
7 Hazard warning LED during test 15 Mains Power Socket
8 Range Rotary Switch 16 Back-light
