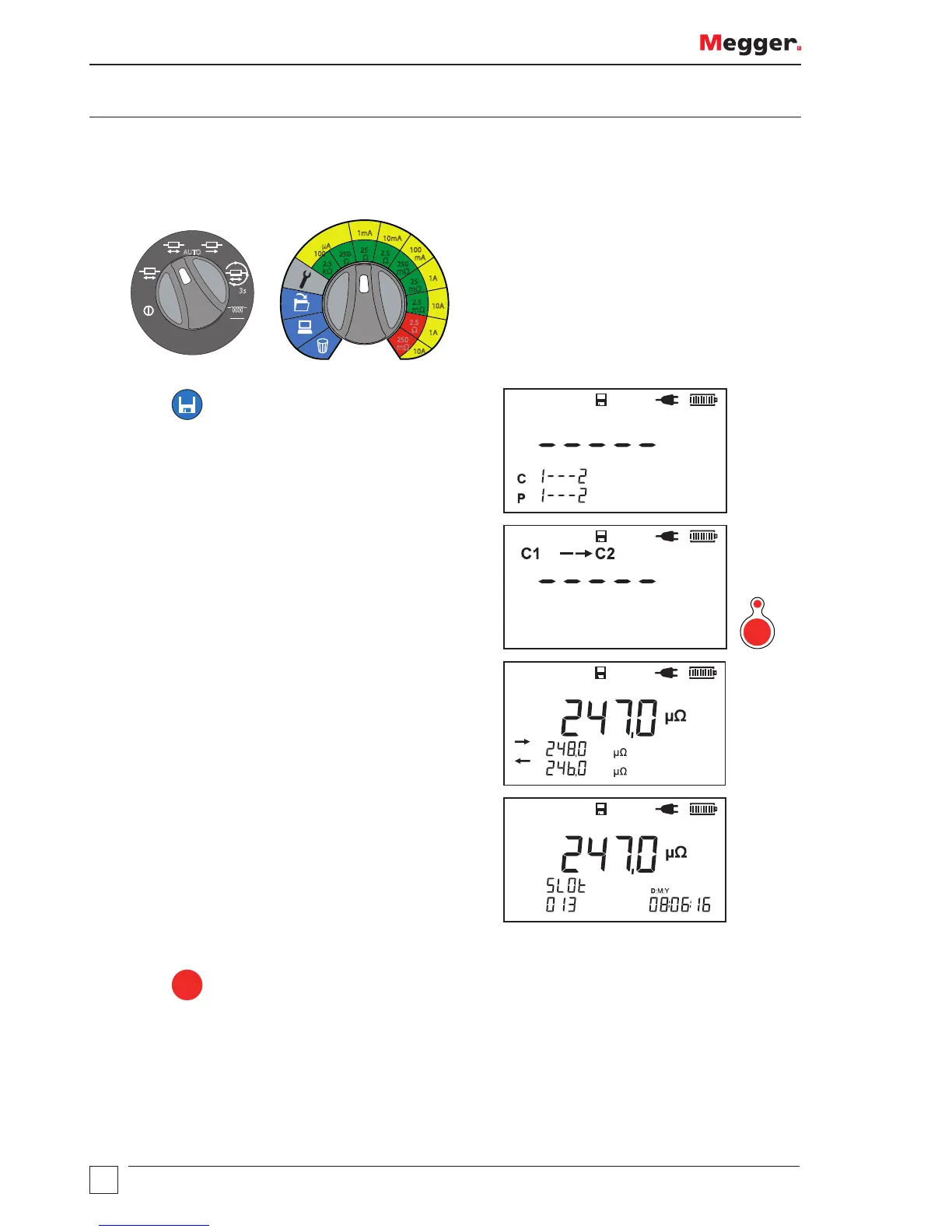

Tests with Automatic Save (DLROHD10X)
Tests with Automatic Save (DLROHD10X)
This section details the instruments test procedures, which can be automatically saved.
For information on test lead connection to a test piece, see Test Lead Connection (page 11).
Automatic Bi-directional Test
AUTO
3s
2.5
Ω
250
mΩ
µA
100
2.5
kΩ
1mA
10mA
100
mA
1A
1A
10A
10A
250
Ω
25
Ω
2.5
Ω
250
mΩ
25
mΩ
2.5
mΩ
1. Press
(acknowledged by a beep sound).
Save function is available until the memory has 200 test
records.
2. Connect the test leads to the test piece.
Test starts (LED shows red).
Arrow direction animated (based on current direction)
and plateau.
TEST
3. Test results for the currently connected test piece are
shown.
Test results are saved and their memory slot number is
shown. The Save screen is shown for three seconds.
4. The test automatically continues for the next connected
test piece.
5. Press
TEST
to stop the test.
