3.4.4 3Ø, 4-Wire, Y-Connection
A three-phase, four-wire potential system can be provided using three output modules. The
vector relationships are referenced below. This Y-Connection has the advantage of being able to
supply a higher line-to-line voltage (1.73 x phase-to-neutral voltage). It is ideally suited for
simulating phase-to-ground faults. Voltage channel #1 is designated as V
a
with its phase
relationship set for 0°. Voltage channel #2 is then designated as V
b
and phase angle set for 120°.
Finally, voltage channel #3 is designated V
c
and phase angle set for 240° (for a 1-2-3 counter
clockwise rotation). V
a
, V
b
and V
c
are connected to the voltage potential binding posts on the
respective test sets. If a neutral is required, it is connected to a ground post on any voltage
output module to ground the load.
f
V
= Desired Fault Voltage
af
V
=
3
3
V
0∠°
bf
V
=
3
3
V
120∠°
cf
V
=
3
3
V
240∠°

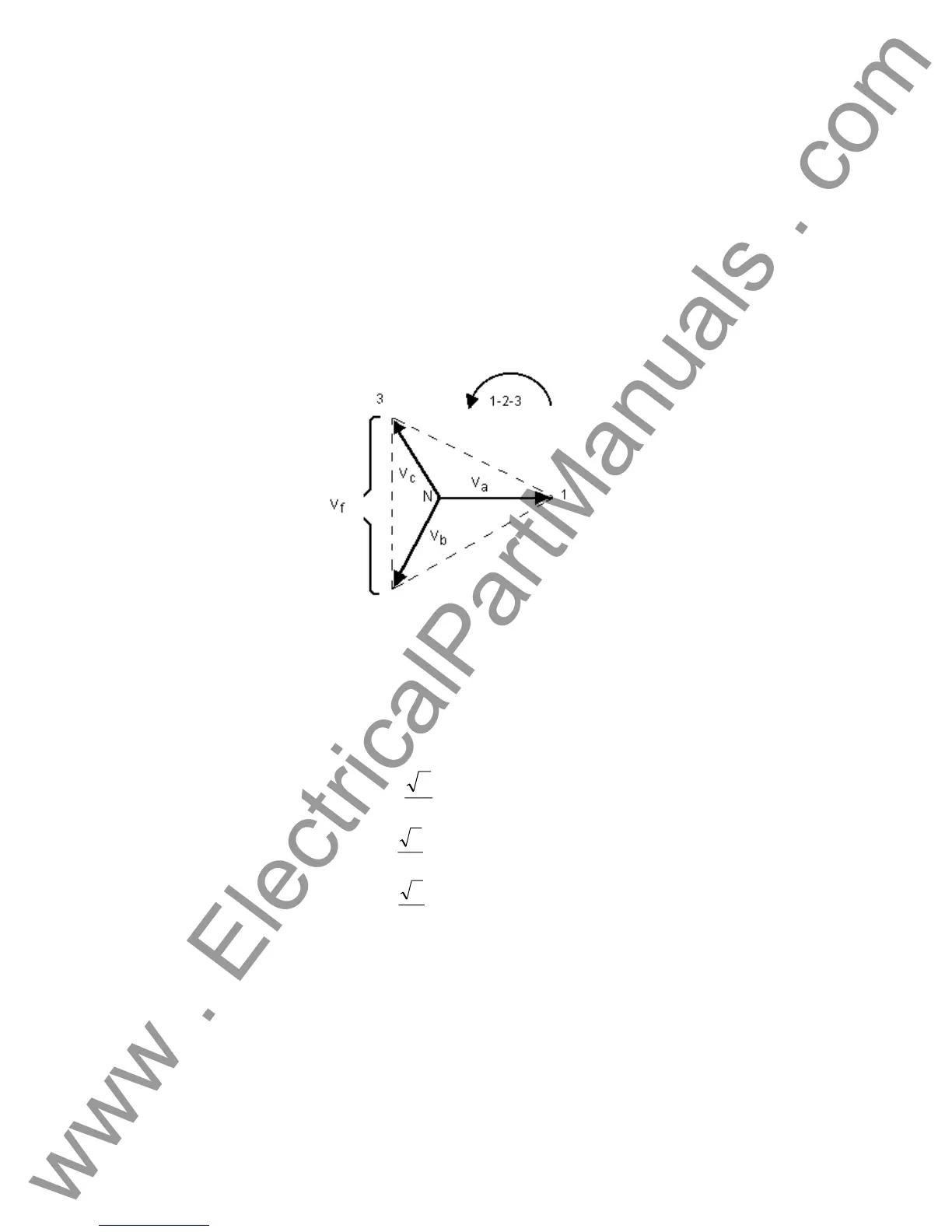

Balanced 3 θ, 4 Wire Y-Connection
39
