Portable RCD test (PAT150)
Testing a portable RCD or extension lead with built-in RCD

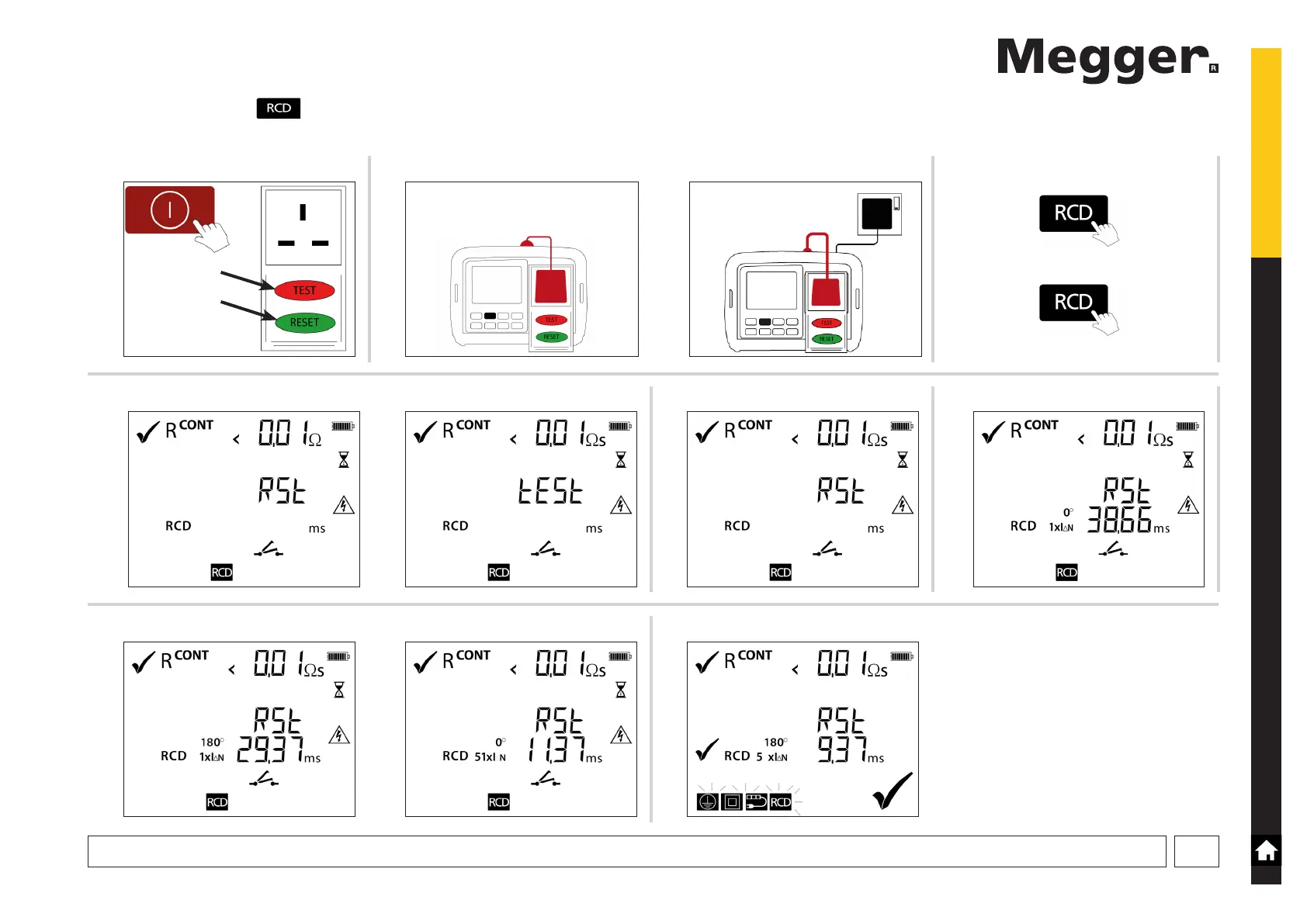

i) ii) Connect RCD iii) See note below
30 mA RCD
OR
10 mA RCD
>2 s
iv) Press RESET on RCD v) Press TEST button on RCD vi) Press RESET on RCD vii) Press RESET on RCD
viii) Press RESET on RCD ix) Press RESET on RCD x) Test complete
Note : The PAT150 defaults to 30 mA
RCD. To change to 10 mA, hold the
RCD button down for more than 2
seconds then release.
TEST (OFF)
RST (EIN)
