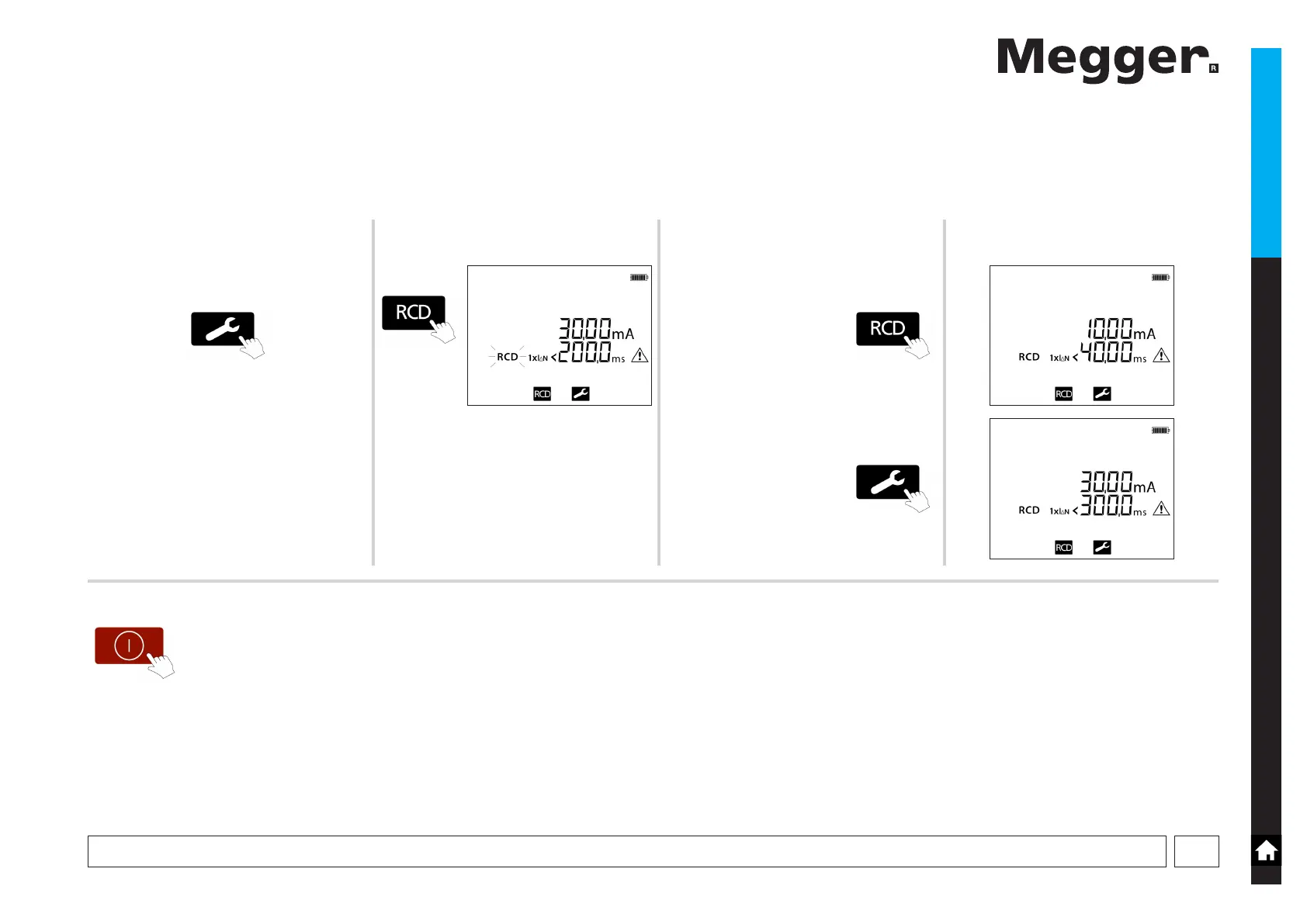

RCD configuration
Portable RCD current rating can be changed between 10 mA and 30 mA
Portable RCD trip time for 30 mA can be set at either 200 ms (for BS 7071 conformity) or 300 ms (for IEC 61540 conformity)
Portable RCD trip current selection
i) ii)
iii) Press RCD button to change from 30 mA
to 10 mA
iv)
For 10mA RCD
To change trip time
To exit RCD configuration
