Megger PAT120 Series User Manual

www.megger.com
22
Quick test (PAT15, 150R)
QT = Quick test - Access to individual
tests within a test group.

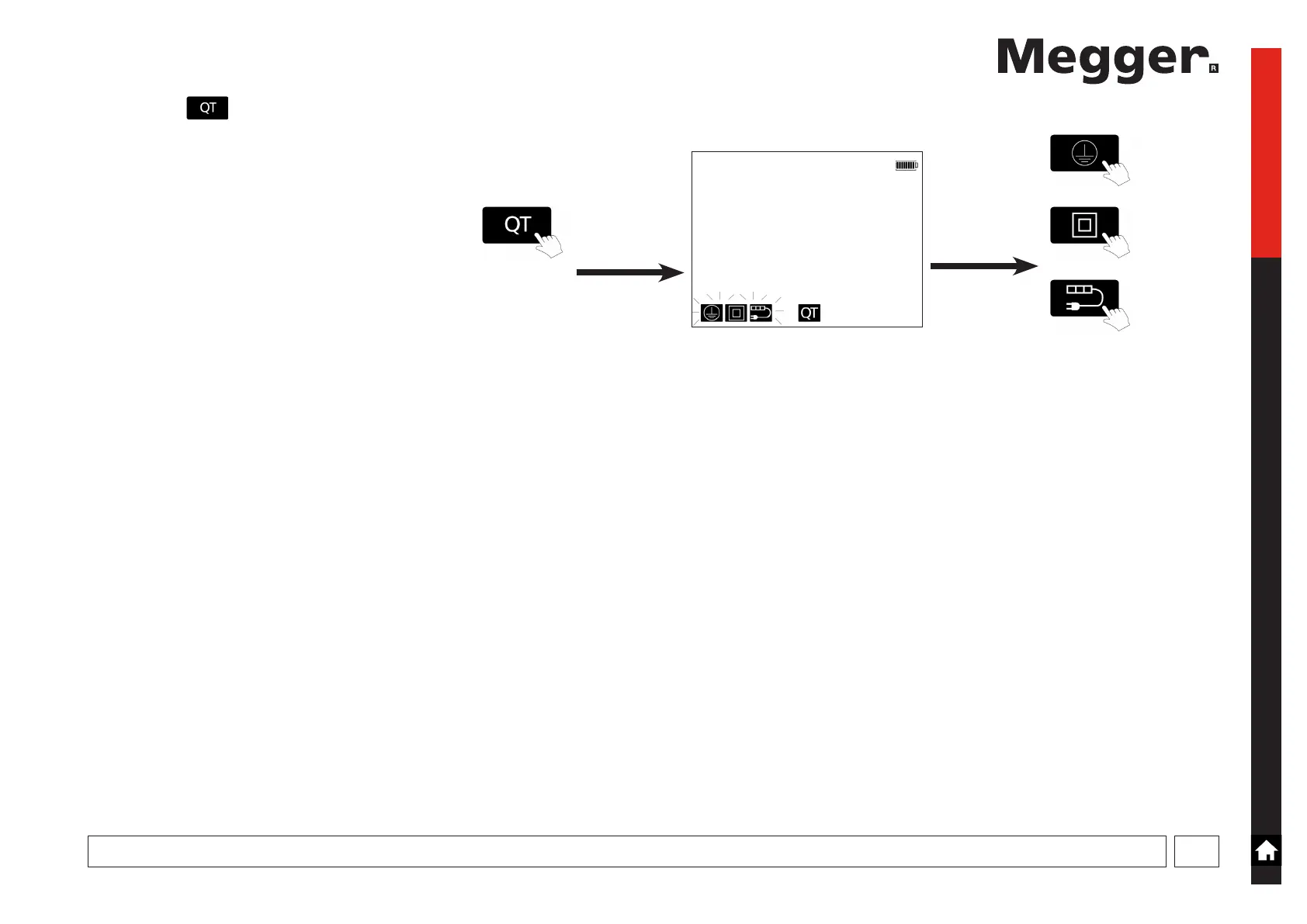

To access Quick Test mode:
or
or
Connection for individual tests differs depending on the test group selected.
Options:
Class I
Continuity (Uses P1 probe)
Insulation 500 V
Insulation 250 V
Substitute Leakage
Mains Leakage (needs mains connection)
Class II
Insulation 500 V (uses P1 probe)
Insulation 250 V (uses P1 probe)
Substitute leakage (uses P1 probe)
Mains leakage (uses mains connection and P1 probe)
SELV measurement (uses P1 and P2 probes)
Extension lead
Continuity (uses extension lead adaptor)
Extension Lead, Insulation 500 V
Extension Lead, Insulation 250 V
Polarity (uses extension lead adaptor)
