TTR Screen

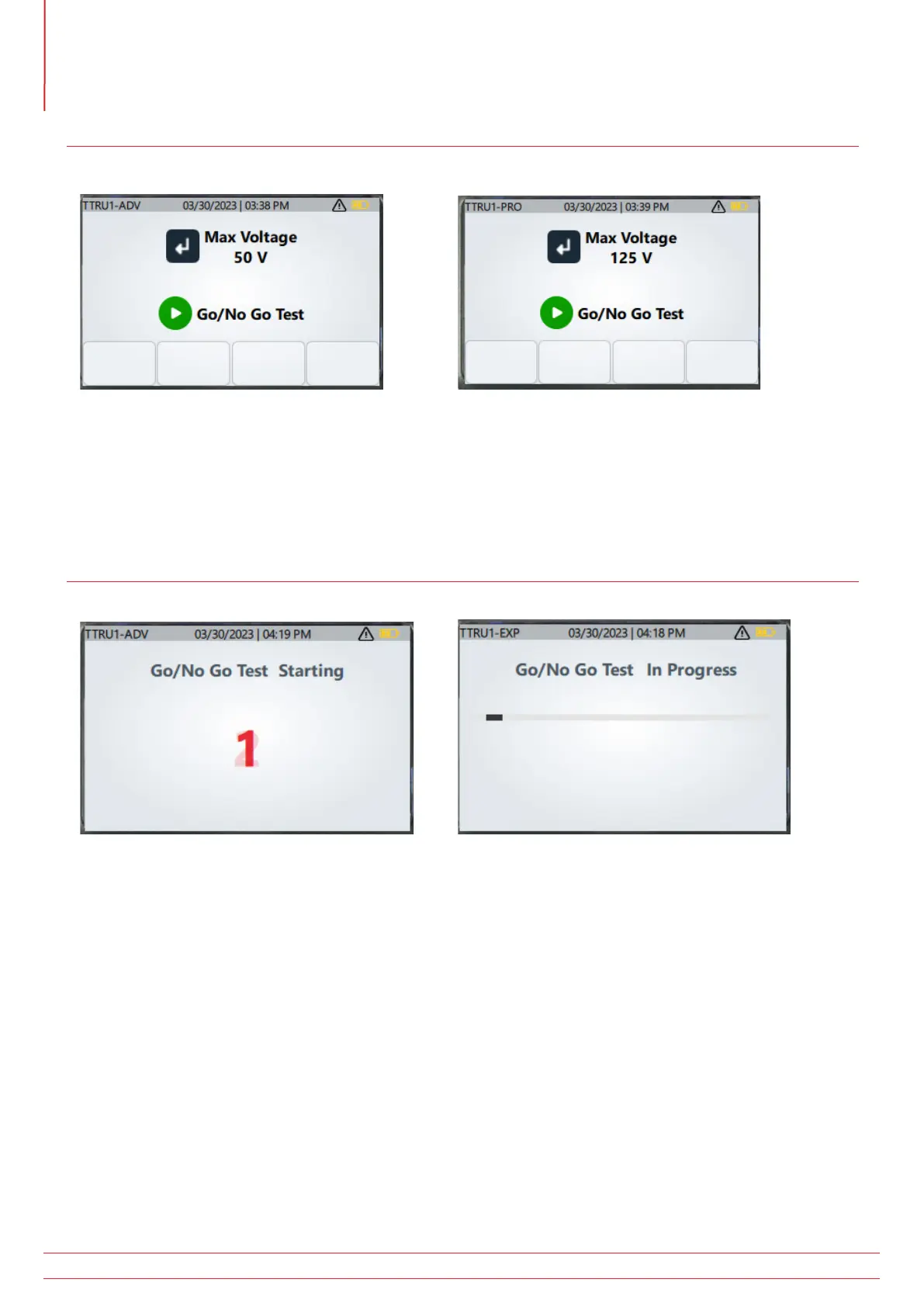

TTRU1 ADV and PRO Go/No Go Impedance Test Setup
The Go/No Go impedance test of the TTRU1 is very similar for the ADV and PRO units. The only difference
being the maximum test voltage allowed.
The vector select options, including custom vectors, are the same as the TTR Test Setup. Please refer to the previous
sections for selecting vectors.
When testing three phase vectors with the TTRU1 PRO, the TTRU1 will guide the user through testing each phase
TTRU1 ADV and PRO Go/No Go Impedance Test in Progress
With a TEST ID entered, clicking the play button will show a brief countdown, followed by a test in progress screen.
To Next Page
