SCR FIELD SERVICE GUIDE
Information subject to change without
Part Number :252851027
2.5. BILL ENTRY GUIDE (BEZEL)
Bezel Installation

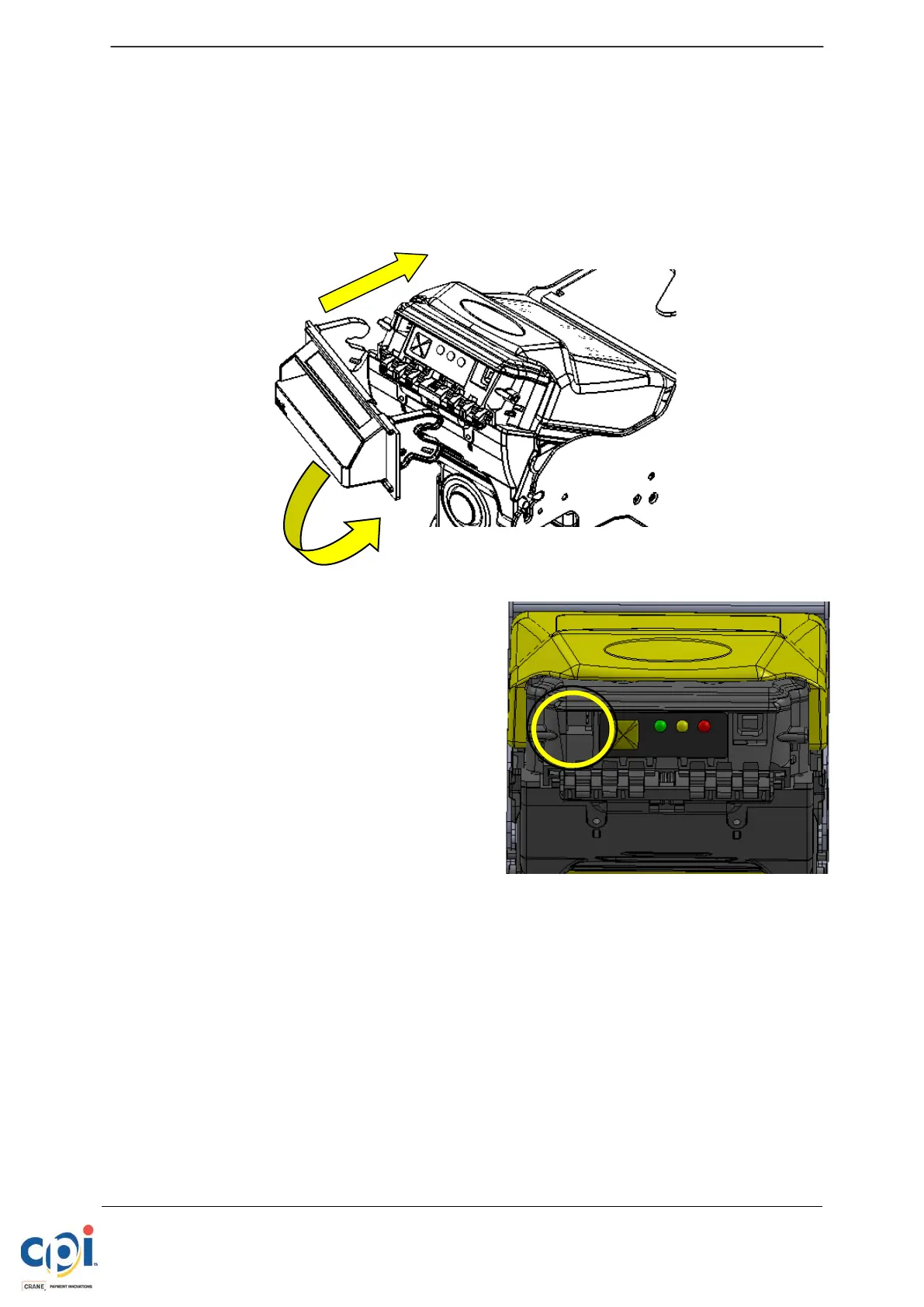

1. Slide the Bezel onto the guides provided on the Acceptor Module. It is easiest
to accomplish by sliding one end first, followed closely by the other end, as
shown in Image 10.
2. If the Bezel contains lights, connect
the harness first before installation.
There is a connection port located to
the left of the MMI lights (Image 11).
