It is not advisable to remove more than the jammed note from this
location. Any note removed from the system will report as missing. Be sure to
report the retrieved notes and account accordingly.
7. Be sure to close each recycling drum access handle prior to shutting the
Transport Section.
8. Reinsert the Vault Module.
4.2 ACCEPTOR JAM
An Acceptor bill jam will be indicated by 2 flashes on the Yellow MMI LED (per
Section 3).

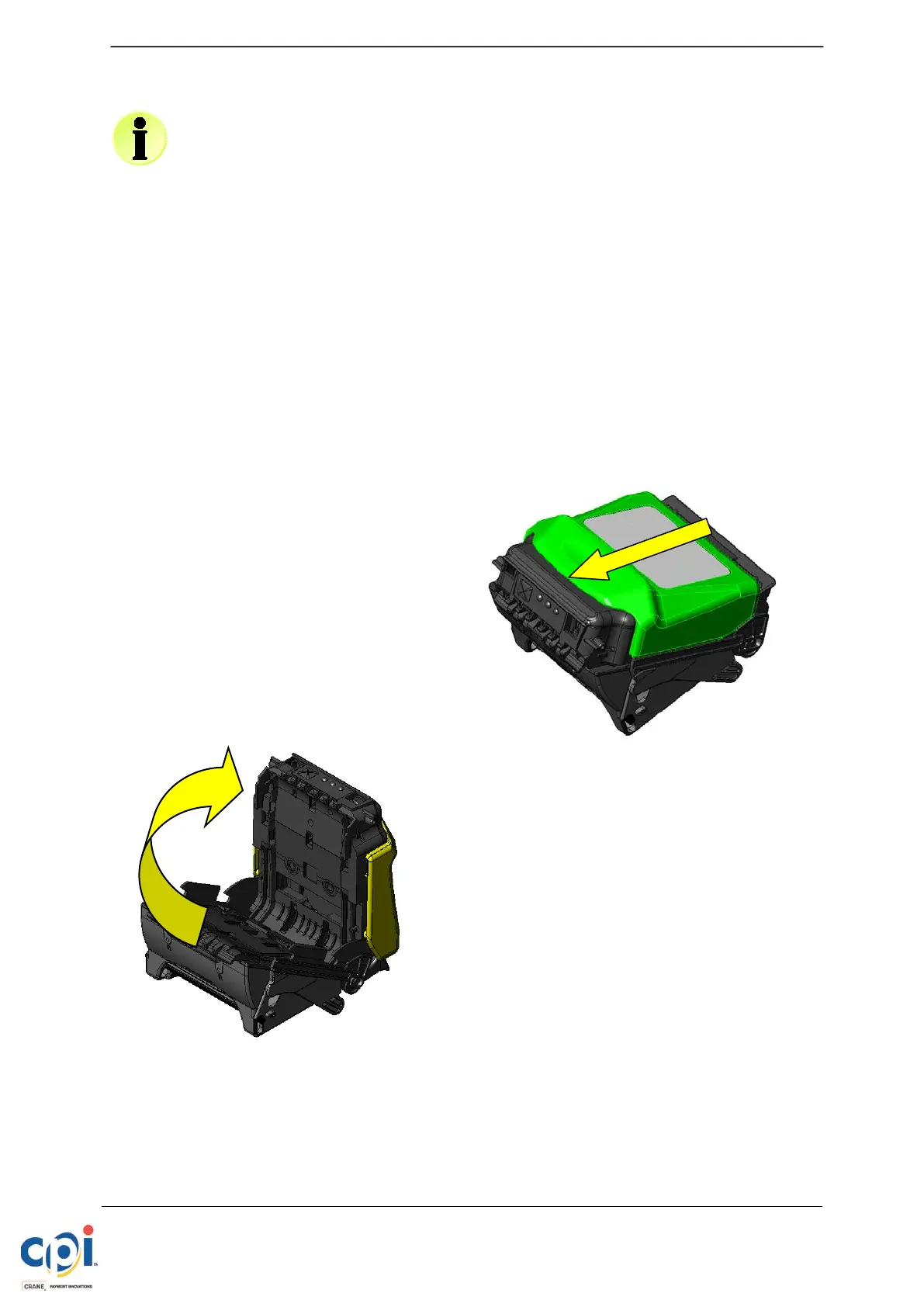

1. Grasp the top latch of the Acceptor
head and pull in the direction of the
arrow to disengage the lid (Image
20).
2. Lift the top portion of the Acceptor head
up, as in Image 21.
3. Check bill path to see if note or debris is
present. Clear obstruction if one exists.
4. Pull on upper latch of acceptor head
again (as in Image 20) and close latch until
seated fully.
