SCR FIELD SERVICE GUIDE
Information subject to change without
Part Number :252851027
5.6 RECYCLER MODULE
There are no Preventative Maintenance recommendations for the Recycler Module.
Should an issue exist with the Recycler, remove the chassis to replace. Send the
Module to the nearest MEI-Authorized Service Centre.

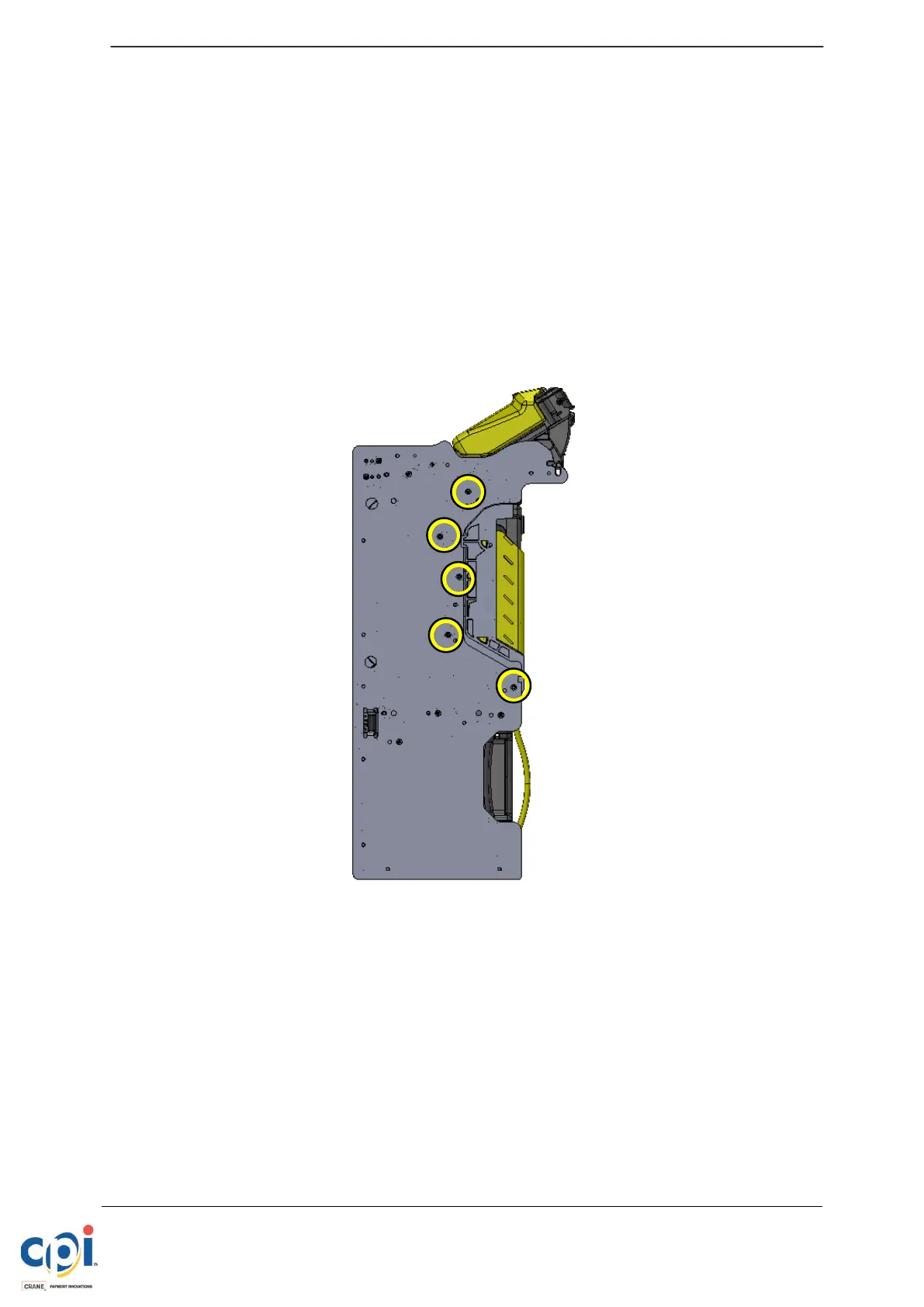

Should the Recycler Module require replacement, the entire Transport-Recycler
Assembly can be removed from the Chassis and replaced. This can be done my
removing the five (5) screws on each side of the chassis, then disconnecting the
harness from the Recycler PCB.
Image 36
