SCR FIELD SERVICE GUIDE
Information subject to change without
Part Number :252851027
5.3 VAULT MODULE
1. Remove the Vault Module from the SCR Chassis as shown in Section 2.2.
2. Manually verify operation of the Vault Module by rotating the drum in the
clockwise direction until an audible “click” is heard. Ensure that the movement
is smooth and free from any unexpected friction.

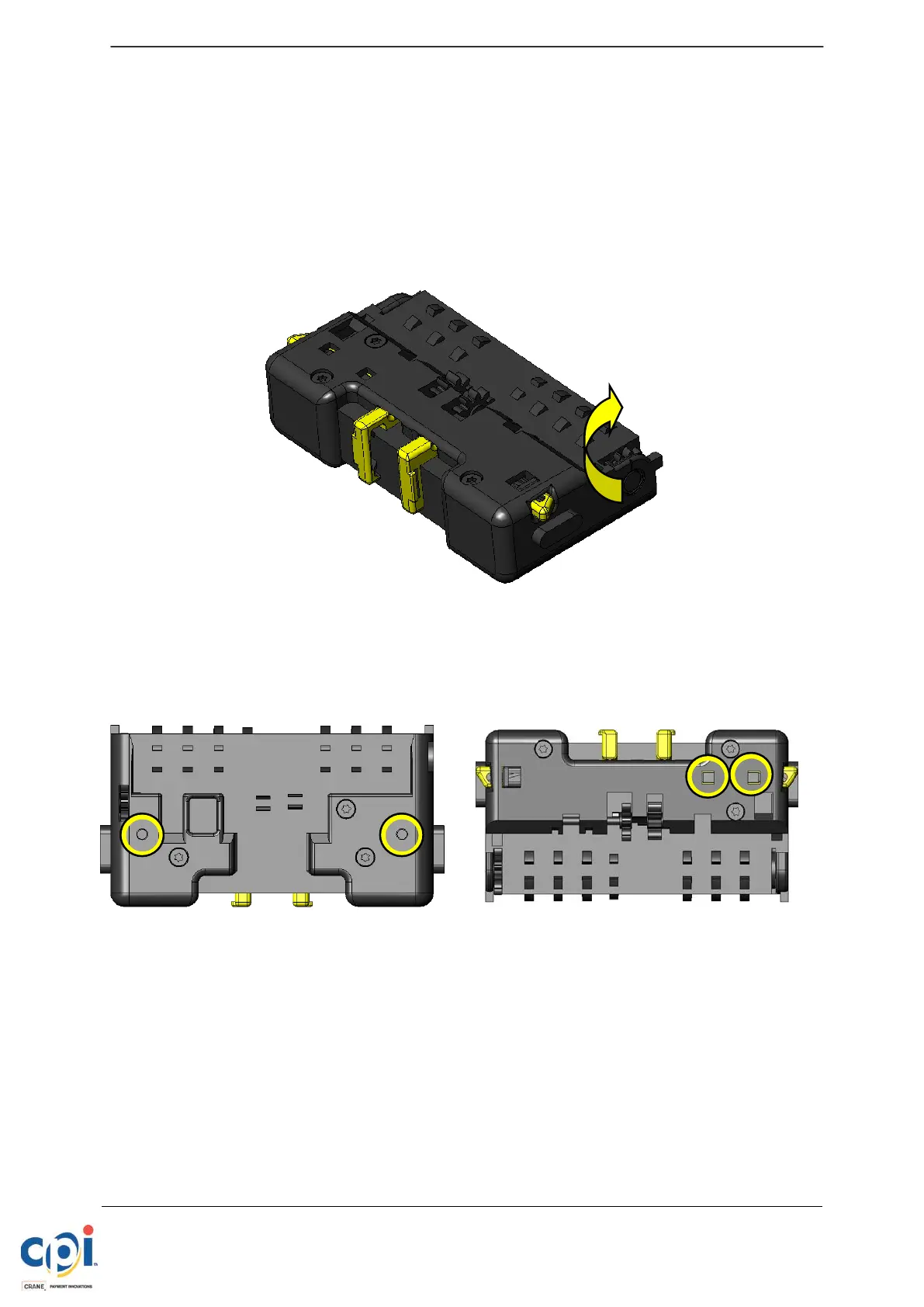

Image 27
3. Clean the transmission gears and optical lenses of dust and debris using a
lint-free swab or cloth.
