Meinberg MicroSync - Programmable Pulse Output; Time Code am (Modulated) Output

5.3 Programmable pulse output
Signal output Programmable pulses
Signal level: TTL, 2.5 V into 50 Ohm
Connector: BNC, female
Cable: shielded coax line
Pulse outputs: Pulse Per Second
Cyclic Pulse
Single Shot
Timer
Idle
All Sync
Time Sync
Position OK
DCF77 Marks
Pulse Per Hour
Pulse Per Min
DCLS Time Code
Serial Time String
Synthesizer Frequency
PTTI 1PPS

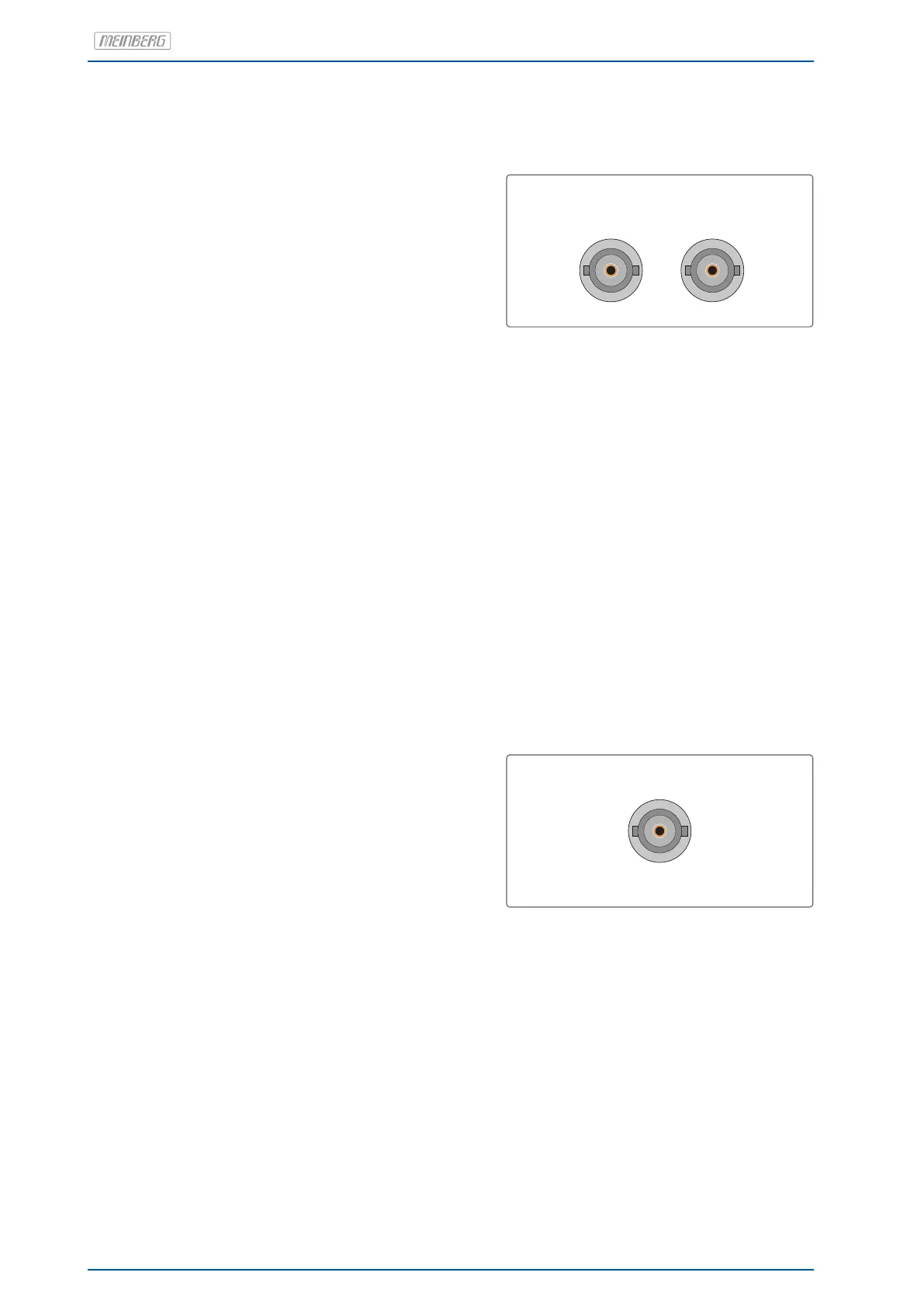

PP 1 Out PP 2 Out
5.4 Time Code AM (modulated) Output
Signal outputs: Unbalanced sine wave-signal
Signal level: 3 Vpp / 1 Vpp (MARK/SPACE)
into 50 Ohm
Carrier frequency: 1 kHz (IRIG-B)
Connection type: BNC female
Cable: shielded coax line
TC AM Out
18 Date: 17th June 2020 microSync
