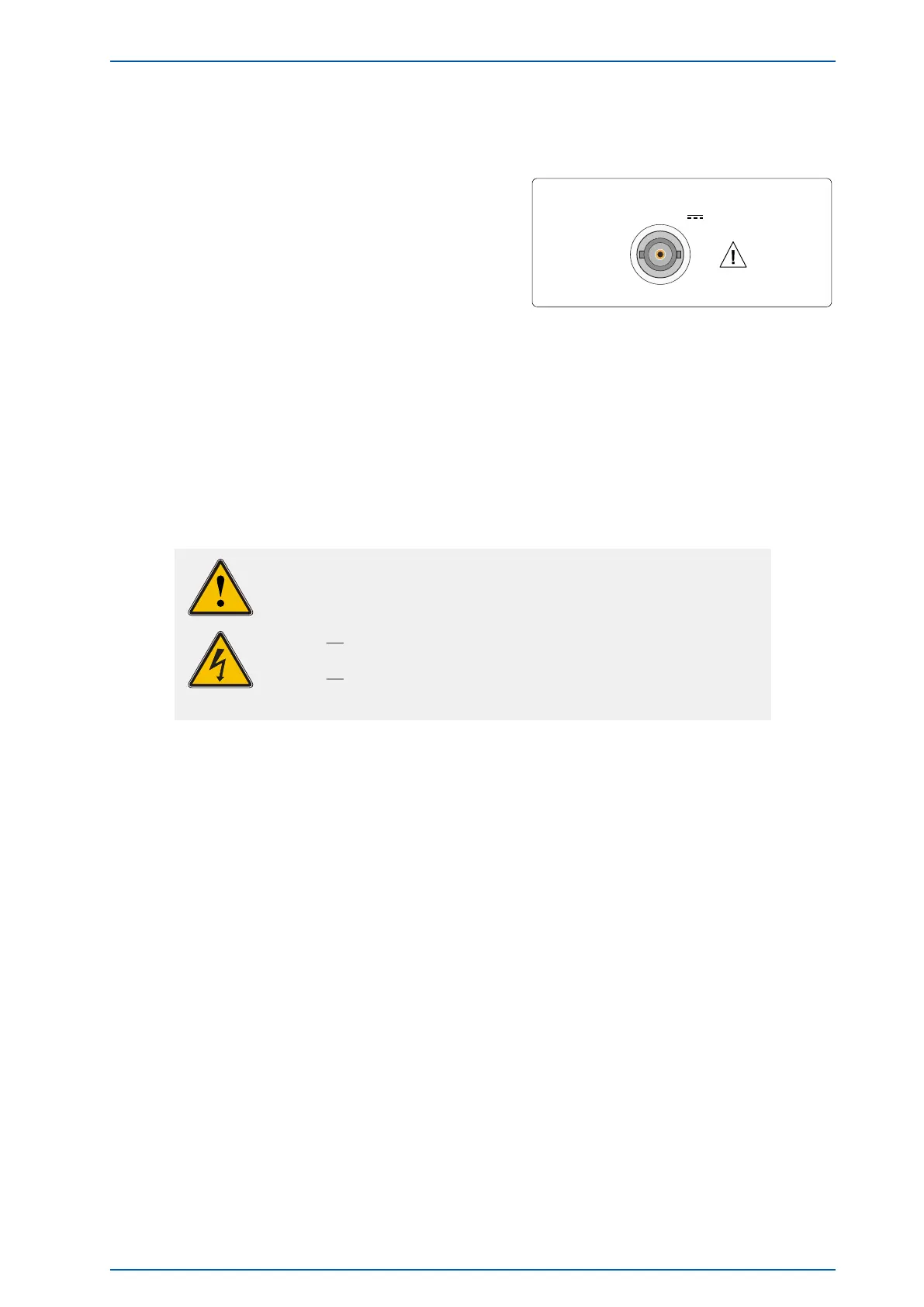

5 microSync RX101/AD10DC20 Connectors
5.2 GPS Antenna
Cable: shielded coax
Cablelength: max. 300m to RG58,
max. 700m to RG213
Connector: BNC female or N-type female
Input GPS: Antenna circuit
1000 V DC insulated
Local Oscillator
to Converter Frequency: 10 MHz
1
First IF Frequency: 35.42 MHz
1
1) these frequencys are transfered via the antenna cable.
Power Supply: 15 V DC, 100mA (from receiver via the antenna cable)
WARNING!
Working on the antenna system during thunderstorms
Danger to life due to electrical shock!
- Do not carry out any work on the antenna system or the antenna cable
if there is a risk of a lightning strike.
- Do not carry out any work on the antenna system if the safety distance
to free lines and sequential circuits is exceeded.
microSync Date: 17th June 2020 17
