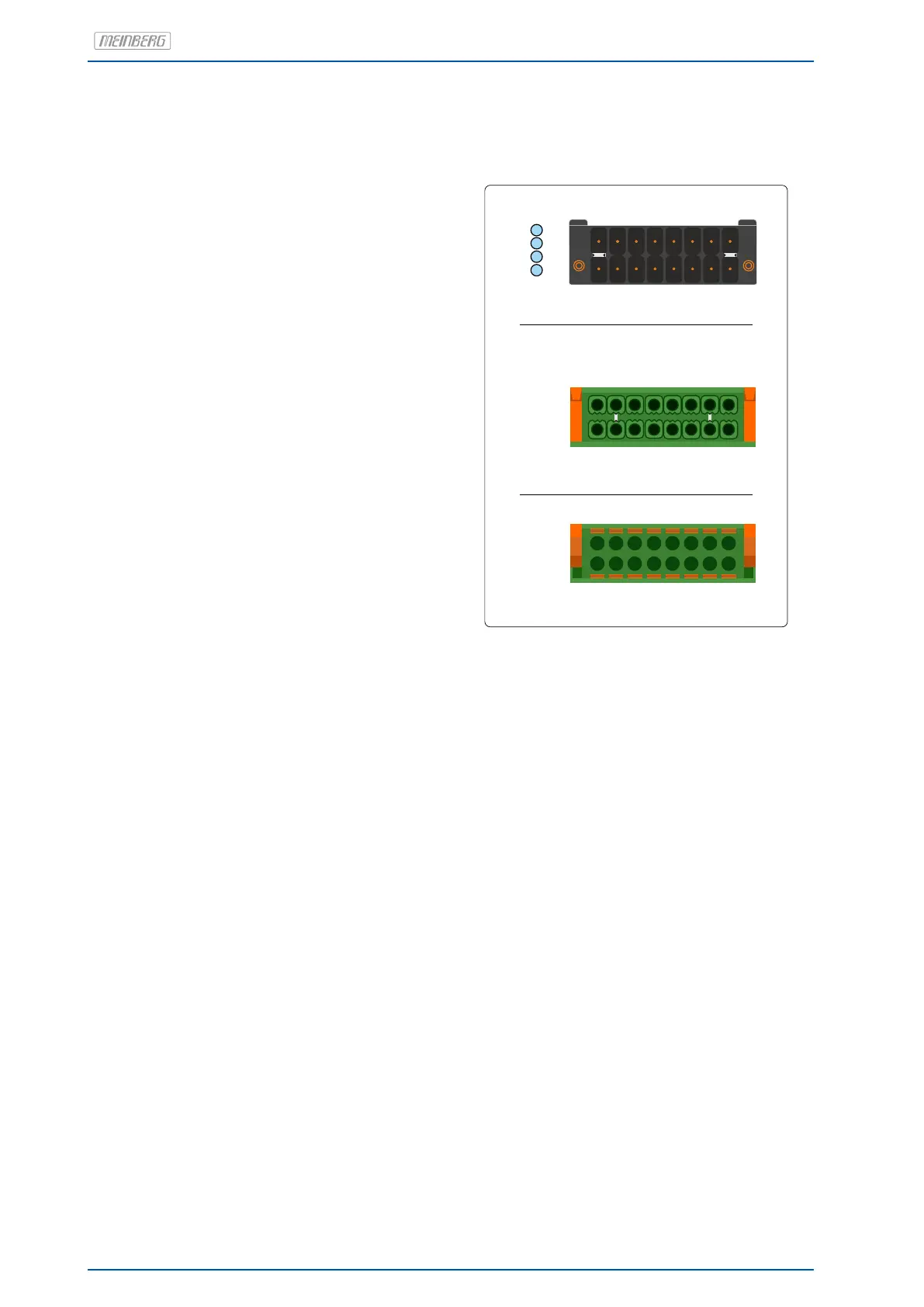

5.12 DMC X1 Terminal Connector
Pin 1 not used
Pin 2 not used
Pin 3 PP 1- programmable pulse
Pin 4 PP 2- programmable pulse
Pin 5 PP 3- programmable pulse
Pin 6 PP 4- programmable pulse
Pin 7 REL-NO Error/Relay (normally open)
Pin 8 REL-CO Error/Relay (common)
Pin 9 not used
Pin 10 not used
Pin 11 PP 1+ programmable pulse
Pin 12 PP 2+ programmable pulse
Pin 13 PP 3+ programmable pulse
Pin 14 PP 4+ programmable pulse
Pin 15 not used
Pin 16 REL-NC Error-Relay (normally closed)
Status-LEDs:
PP 1 . . . PP 4 Status of the programmable
Pulses Out
Status
PP
9
8
16
1
9
8
16
1
X1
9
8
16X1
1
Zum X1-Geräteanschluss
16-pol. Buchse mit Klammer
Kabeleingang
1
2
3
4
