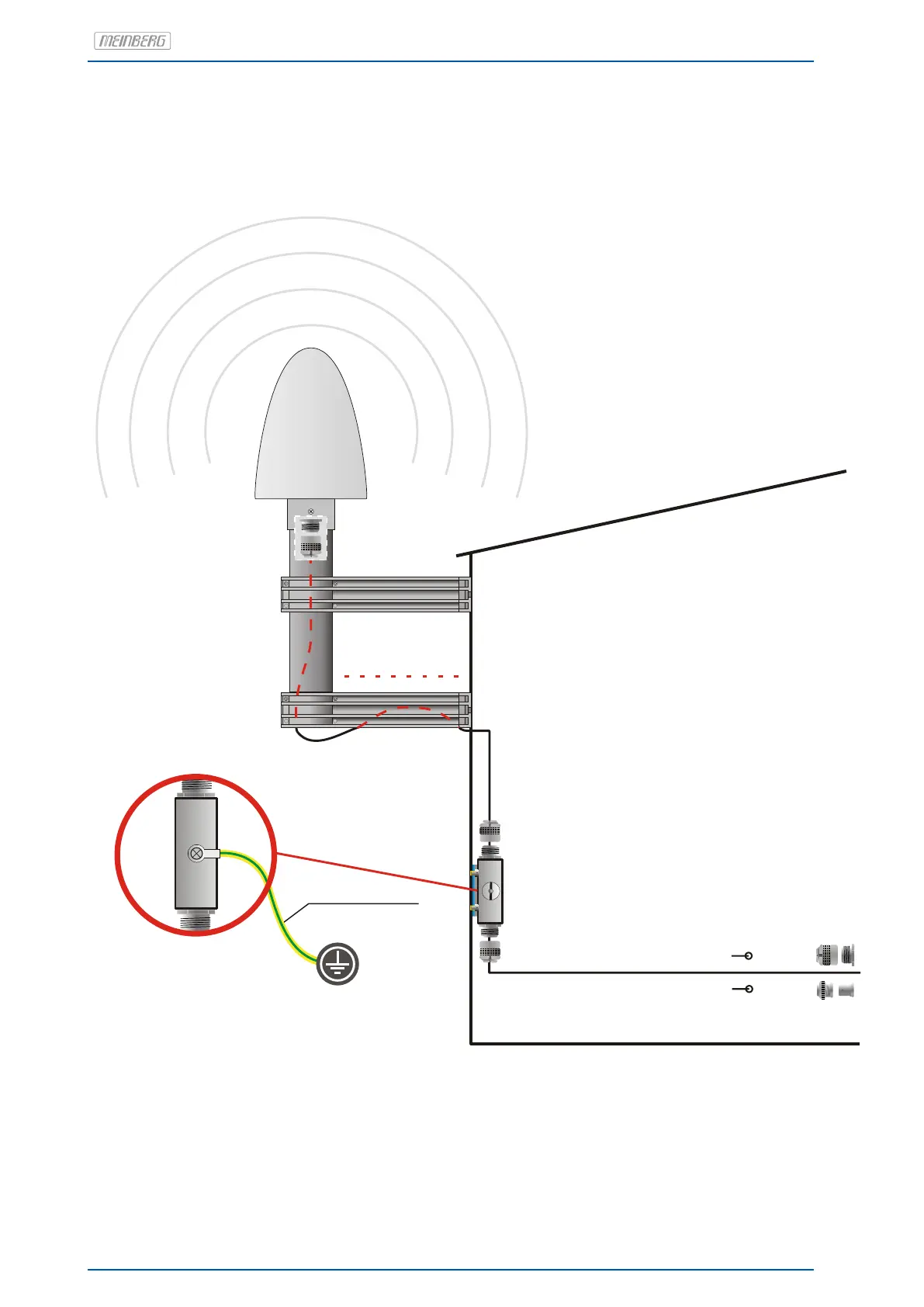

7.2 Antenna Assembly with Surge Voltage Protection
Optional a surge voltage protector for coaxial lines is available. The shield has to be connected to earth as
short as possible by using the included mounting bracket. Normally you connect the antenna converter directly
with the antenna cable to the system.
GPS Antenna
free view to the sky!
Cable Slot
N-Norm female
N-Norm male
N-Norm male
N-Norm female
N-Norm female
N-Norm male
Meinberg GPS
N-Norm male female
or BNC male female
as short as possible
Ground lead to PE rail
(Protective Earth)
Cable ca. 1,5 mm Ø
fastened at the surge protector
30 Date: 17th June 2020 microSync
