Meinberg MicroSync - USB Interface; LAN Network Interfaces

5 microSync RX101/AD10DC20 Connectors

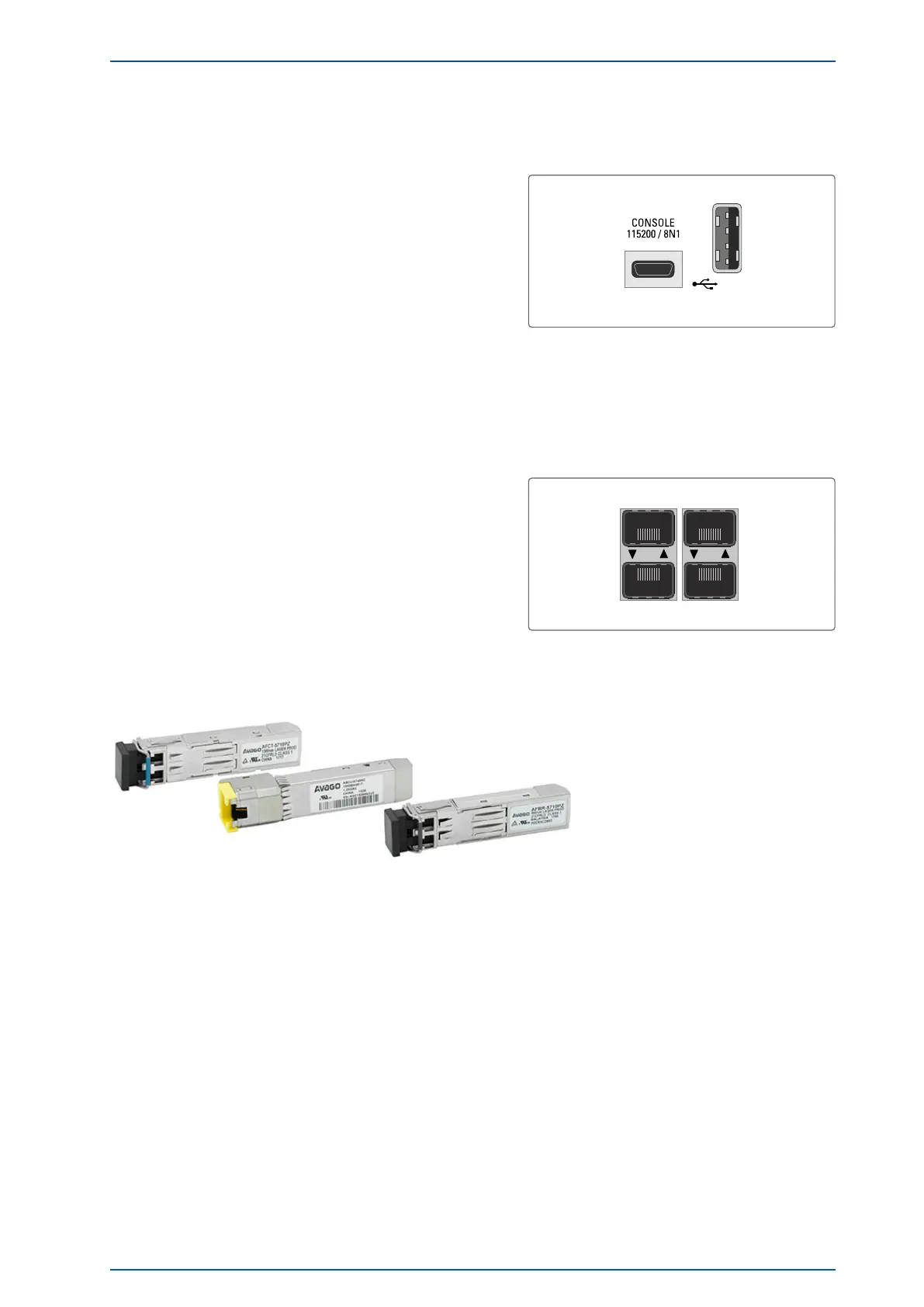

5.8 USB Interface
Signal Signal Type Connector
—————————————————————————–
USB Terminal USB-to- Micro-USB Type B
serial console
USB Host USB connecor USB Type A
management CPU
5.9 LAN Network Interfaces
Gigabit Ethernet (GbE), 100/1000 MBit - SFP
LAN 0, 1: Management / NTP
10/100/1000Mbit RJ45 or 1000FX
LAN 2, 3: Management / NTP
10/100/1000Mbit RJ45 or 1000FX
PTP capable
LAN 0 LAN 2
LAN 1 LAN 3
Recommended and tested Transceivers from other Vendors
MULTI MODE: AVAGO AFBR-5710PZ
FINISAR FTLF8524P3BNL
SINGLE MODE: AVAGO AFCT-5710PZ
FINISAR FTLF1318P3BTL
RJ-45: AVAGO ABCU-5740RZ
FINISAR FCLF8521P2BTL
microSync Date: 17th June 2020 21
