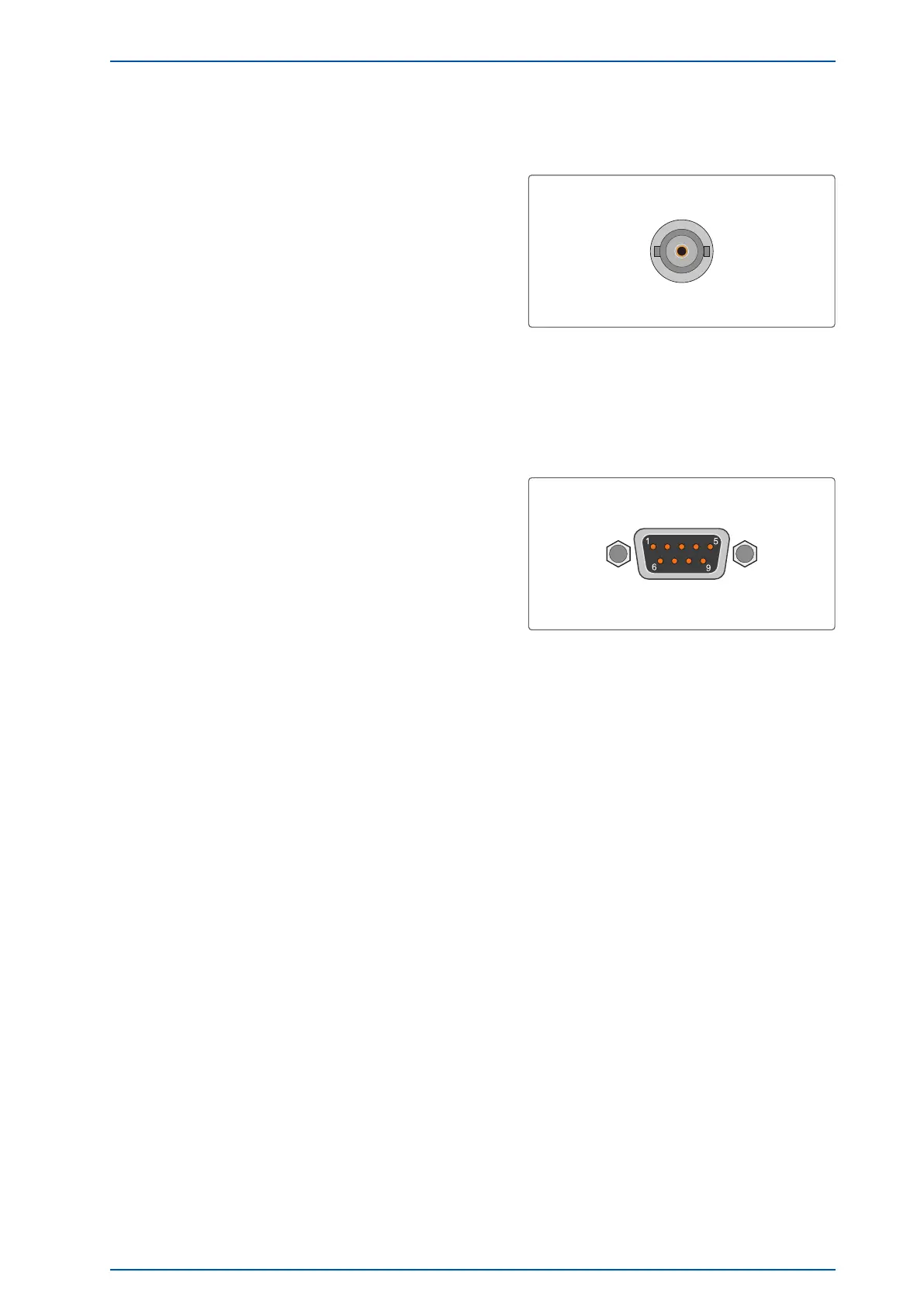

5 microSync RX101/AD10DC20 Connectors
5.5 Frequency Synthesizer Output
Output signal unbalanced sinusoidal signal
Frequency output: 0,1 Hz - 10 MHz
Signal Level: 3 V
pp
into 50 Ω
Connection type: BNC, female
Cable: shielded coax line
5.6 RS-232 COMx Timestring
Data transfer: serial
Baudrate/framing: 19200 / 8N1 (default)
Time-string: Meinberg Standard (default)
Assignment:
Pin 2: RxD (receive)
Pin 3: TxD (transmit)
Pin 5: GND (ground)
Connector: 9pin D-SUB male
Cable: data cable (shielded)
PC connector 1:1
microSync Date: 17th June 2020 19
