DC20 - DC Power Supply

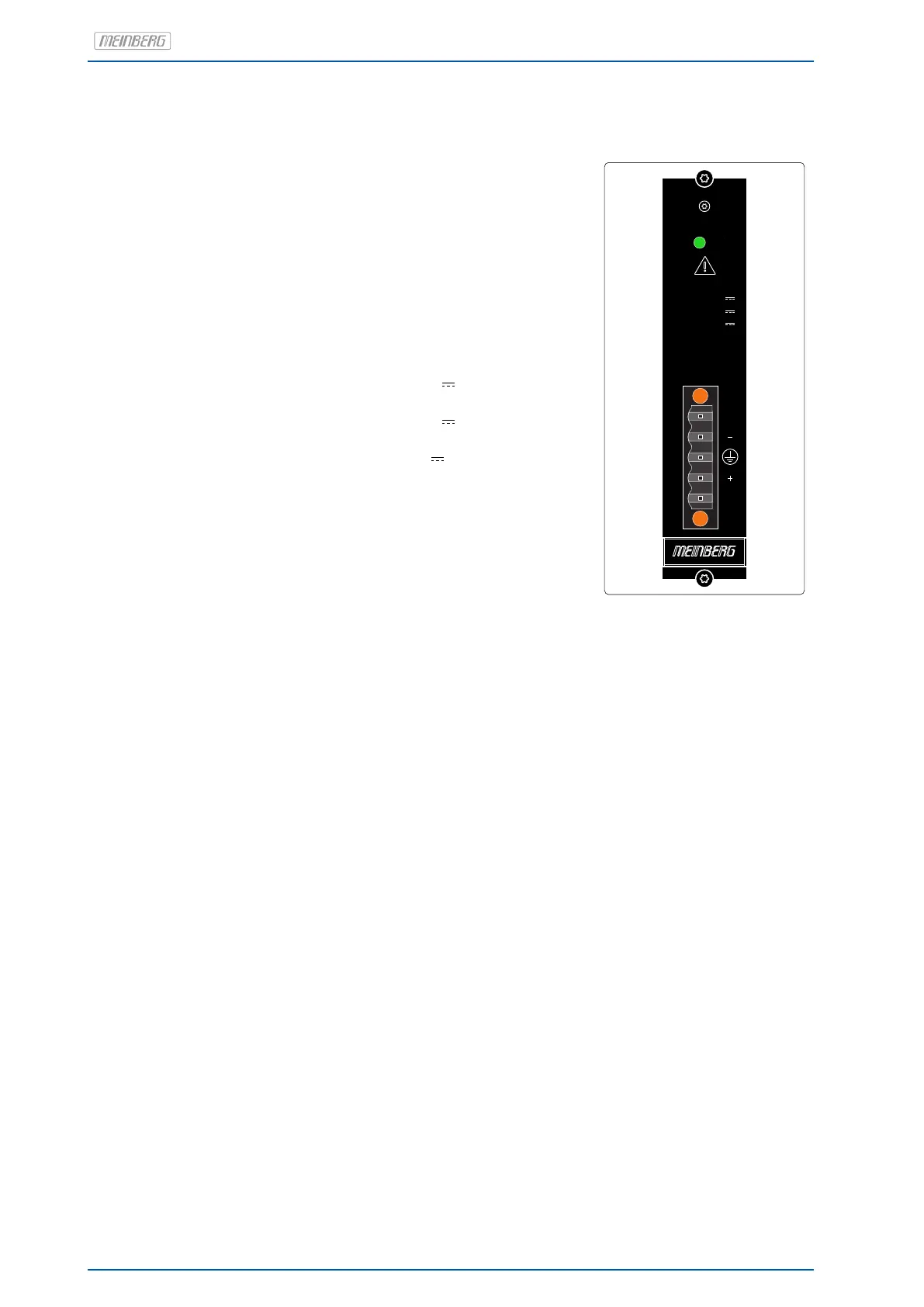

Connector Type: 5pin DFK
Pin Assignment: 1: not connected
2: V
IN
-
3: PE (Protective Earth)
4: V
IN
+
5: not connected
Input Parameter
————————————————————————————
Nominal Voltage Range: UN = 24-48 V
Maximum Voltage Range: Umax = 20-60 V
Nominal Current: IN = 2.10 A
Output Parameter
————————————————————————————
Maximum Power: Pmax = 50 W
Max. Heat Emission: E
therm
= 180.00 kJ/h (170.61 BTU/h)
U = 24 - 48 V
N
U = 20 - 60 V
max
I = 2.10 A
N
Power
DC20MS
