5 microSync RX101/AD10DC20 Connectors
Checking Power Status
The status of the power supplies can be observed in the program Meinberg Device Manager under "Status →
System Status".

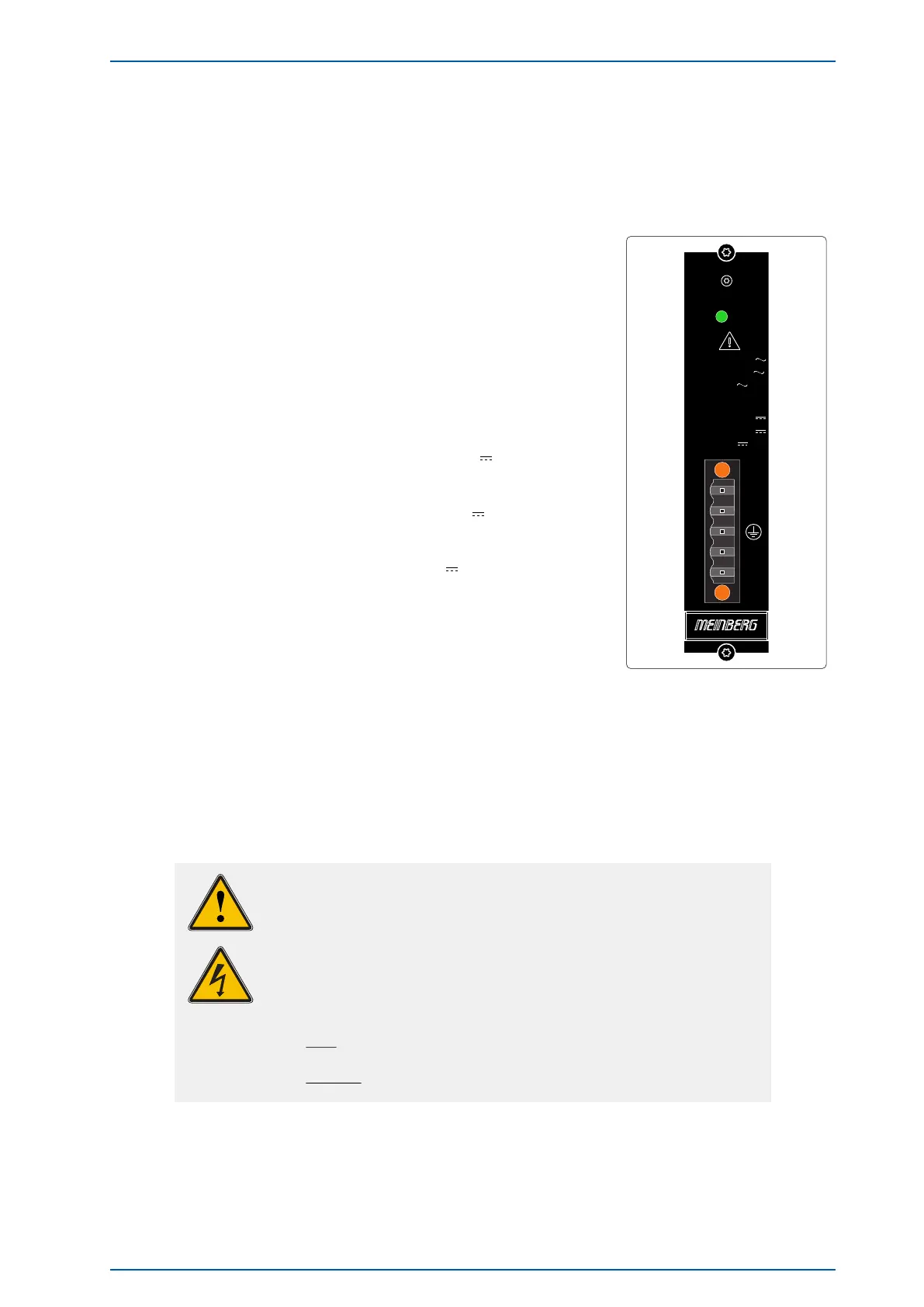

AD10 - AC/DC Power Supply
Connector Type: 5-pol. DFK
Pin Assignment: 1: N/-
2: not connected
3: PE (Protective Earth)
4: not connected
5: L/+
Input Parameter
————————————————————————————
Nominal Voltage Range: UN = 100-240 V ∼
100-200 V
Maximum Voltage Range: Umax = 90-254 V ∼
90-240 V
Nominal Current: IN = 1.0 A ∼
0.6 A
Nominal Frequency Range: fN = 50-60Hz
Maximum Frequency Range: fmax = 47-63Hz
Output Parameter
————————————————————————————
Maximum Power: Pmax = 50 W
Max. Heat Emisson: E
therm
= 180.00 kJ/h (170.61 BTU/h)
N/-
L/+
AD10MS
Power
U = 100 V - 240 V
N
U = 90 V - 254 V
max
I = 1.0A
N
f = 50 - 60Hz
N
U = 100 V - 200 V
N
U = 90 V - 240 V
max
I = 0.6A
N
N/-
L/+
AD10MS
Power
U = 100 V - 240 V
N
U = 90 V - 254 V
max
I = 1.0A
N
f = 50 - 60Hz
N
U = 100 V - 200 V
N
U = 90 V - 240 V
max
I = 0.6A
N
WARNING!
This equipment is operated at a hazardous voltage.
Danger to life due to electrical shock!
- Only qualified personnel (electricians) may connect the device.
- Never work with open terminals and plugs while the power is on.
- All connectors must be protected against touching live parts with
a suitable plug housing!
- Note: Always ensure safe wiring!
- Important: The device must be connected to a proper grounding (PE).
microSync Date: 17th June 2020 15
