7 Information GNSS Antennas
3.

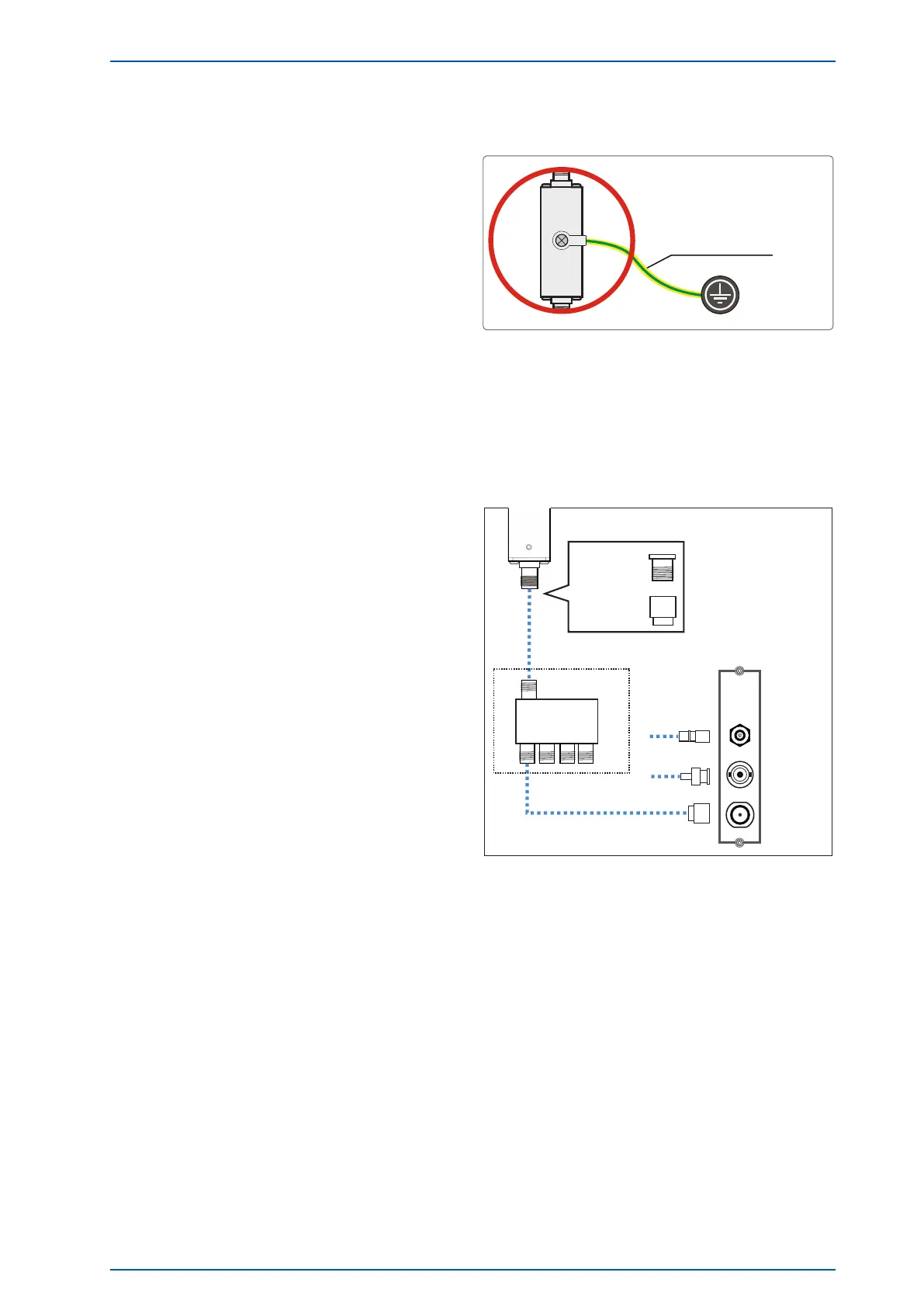

To ground the antenna cable, connect the surge
protection with a grounding cable to a equipotential
bonding rail (see figure).
After installation, connect the other end of the
antenna cable to the socket of the surge protection.
Earth cable to PE rail
Cable circa 1,5 mm Ø
attached to the surge protection
as short as possible
4.
The next step is to connect the supplied coaxial cable
between the surge protector and receiver.
N-Norm (female)
N-Norm (male)
SMA (female)
BNC (female)
N-Norm (male)
N-Norm (female)
BNC (male)
Receiver
Antenna splitter
SMA (male)
MBG S-PRO
Optional
SyncFire 1200 Date: 31st March 2021 33
