10 Indicators and Function Keys on the Front
Panel
LC-Display, 4 x 20 characters
Eight push buttons to set up basic network parameters and to change receiver settings
Four bicolor LEDs
showing status of: Reference time
Time service
Network
Alarm

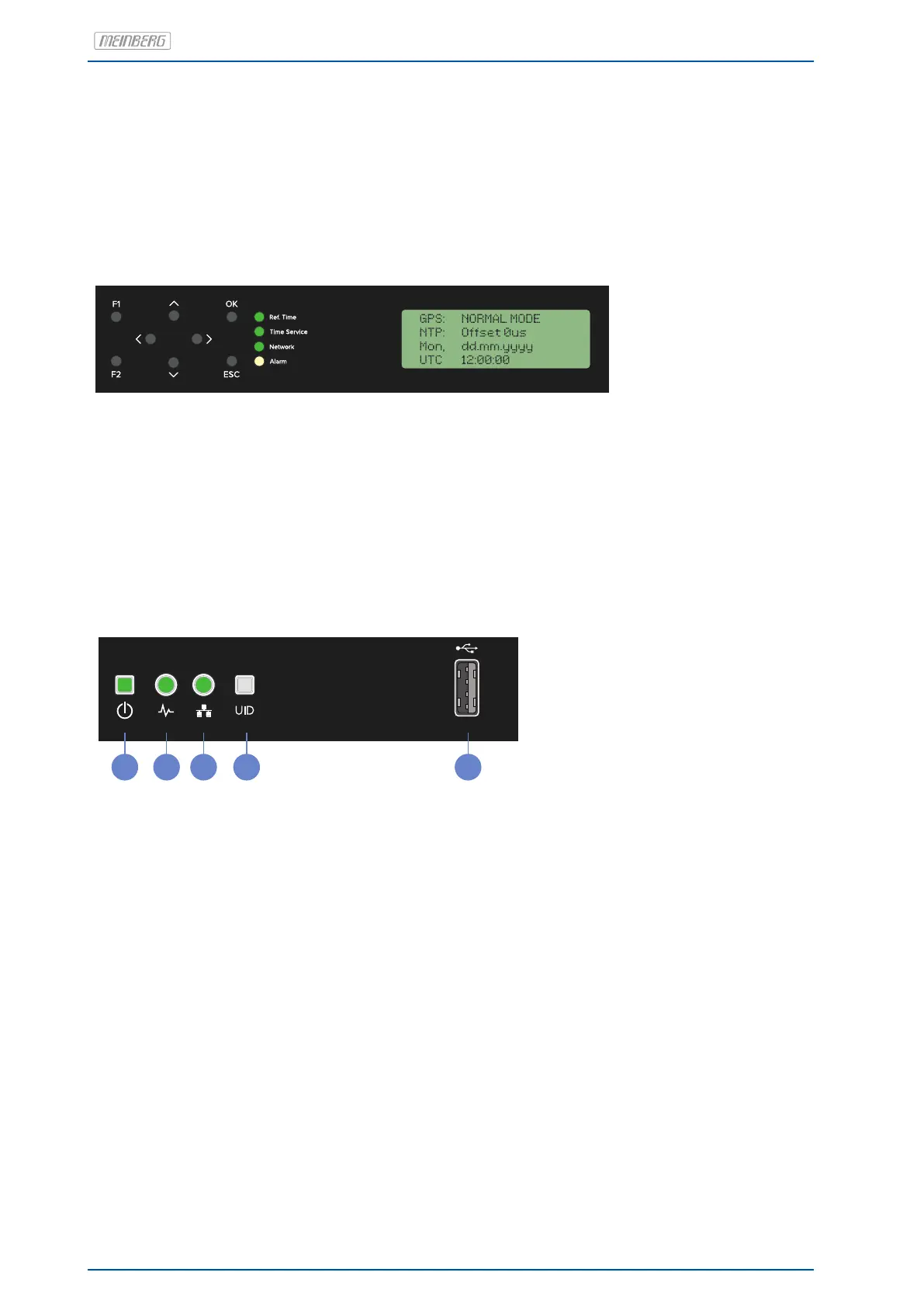

Displays and function keys on the front panel
1 2 3 4 5
1. Power on / standby button and system power LED
2. Health LED
3. NIC status LED
4. UID button / LED
5. USB 3.0 port
38 Date: 31st March 2021 SyncFire 1200
