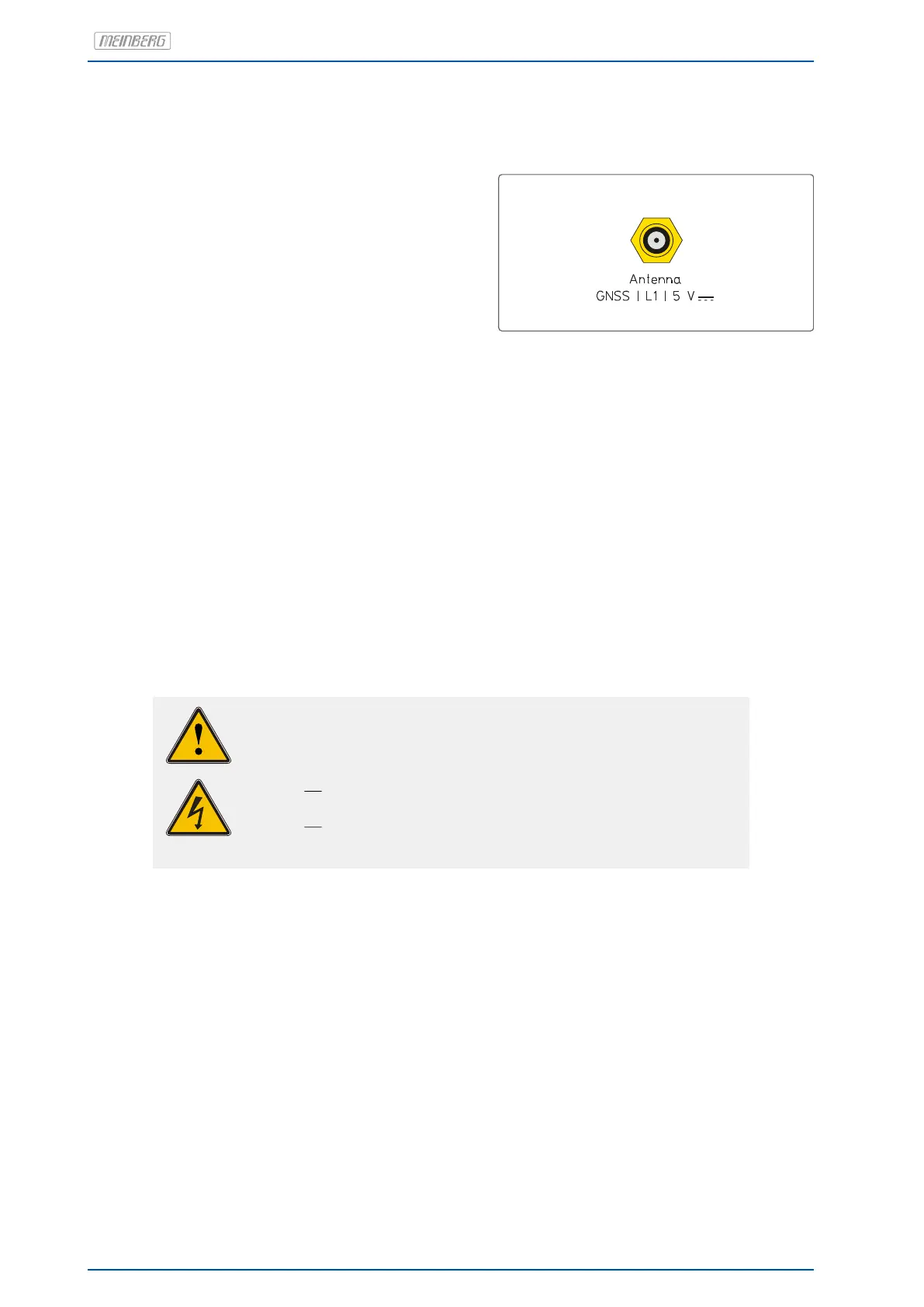

12.6 GNSS Antenna
Antenna type Multi GNSS L1 antenna with
integrated lightning protection
Receiver type 72-channel GPS/Galileo/Glonass/
Beidou
Frequency band L1 / E1 / B1 , 1575.42
+- 10 MHz / 1602-1615 MHz
Signal gain 40 dB
Antenna gain: ≥ 3.5 dBic / ≥ 3 dBic
DC Voltage: 5 V (power supply via antenna cable)
DC Current: max. 100 mA
Nominal impedance: 50 Ohm
Connection type: SMA female
Cable: shielded coaxial line
Cable lenght: max. 70m with Belden H155 coaxial cable
WARNING!
Working on the antenna system during thunderstorms
Danger to life due to electrical shock!
- Do not carry out any work on the antenna system or the antenna cable
if there is a risk of a lightning strike.
- Do not carry out any work on the antenna system if the safety distance
to free lines and sequential circuits is exceeded.
46 Date: 31st March 2021 SyncFire 1200
