QUARTER TURN WALL TOP ASSEMBLY INSTALLATION INSTRUCTIONS
1. Hot cartridge spindle
2. Fibre washer
3. Locking nut
4. Back plate
5. Fixing nut
6. Handle
7. Cold cartridge spindle
7
1
2
3
4
5
6
1. Ensure the seat surface is clean
and smooth, if required, re-seat
and flush. Disassemble the
handle, back plate, locking nut
and fibre washer from the spindle

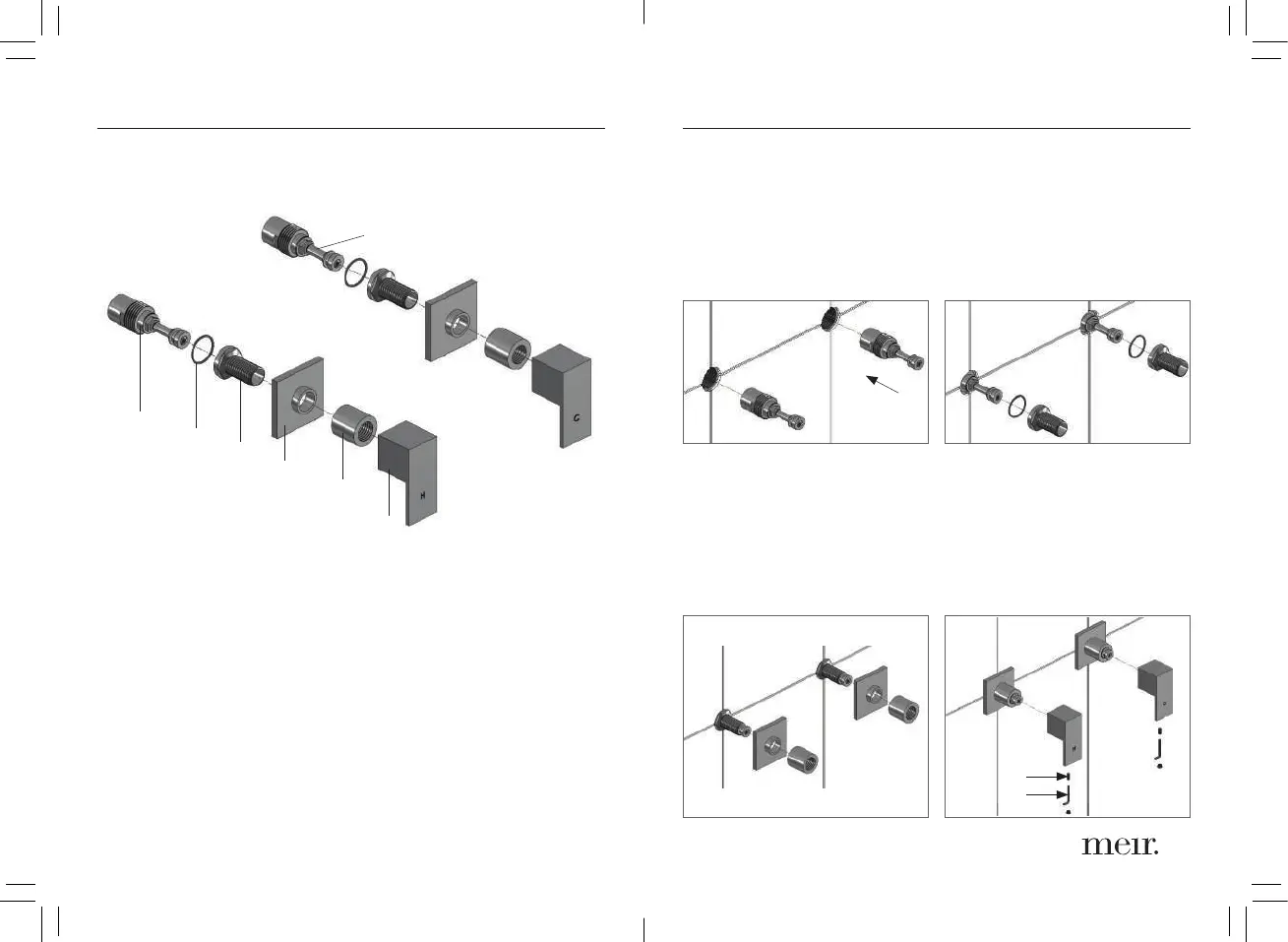

(see image below). Install the
spindle into the breech seat and
ensure the spindle sits correctly.
2. Install the fibre washer then
locking nut back onto the
spindle and tighten.
3. Slide the cover plate and fixing
nut over the spindle and hand
tighten (if there is not enough
thread to tighten the fixing nut
on you will require extended
spindles or spindle extensions,
these can be purchased
separately).
4. Install the handles and tighten
the grub screw (ensure the
spindles are turned to the
o position and the handles
are aligned correctly before
tightening the grub screw). Test
for leaks and to ensure the wall
tops are functioning correctly.
Grub screws
Allen key
