Refer to www.meir.com.au for tolerances, flow rates and other additional information | 2524

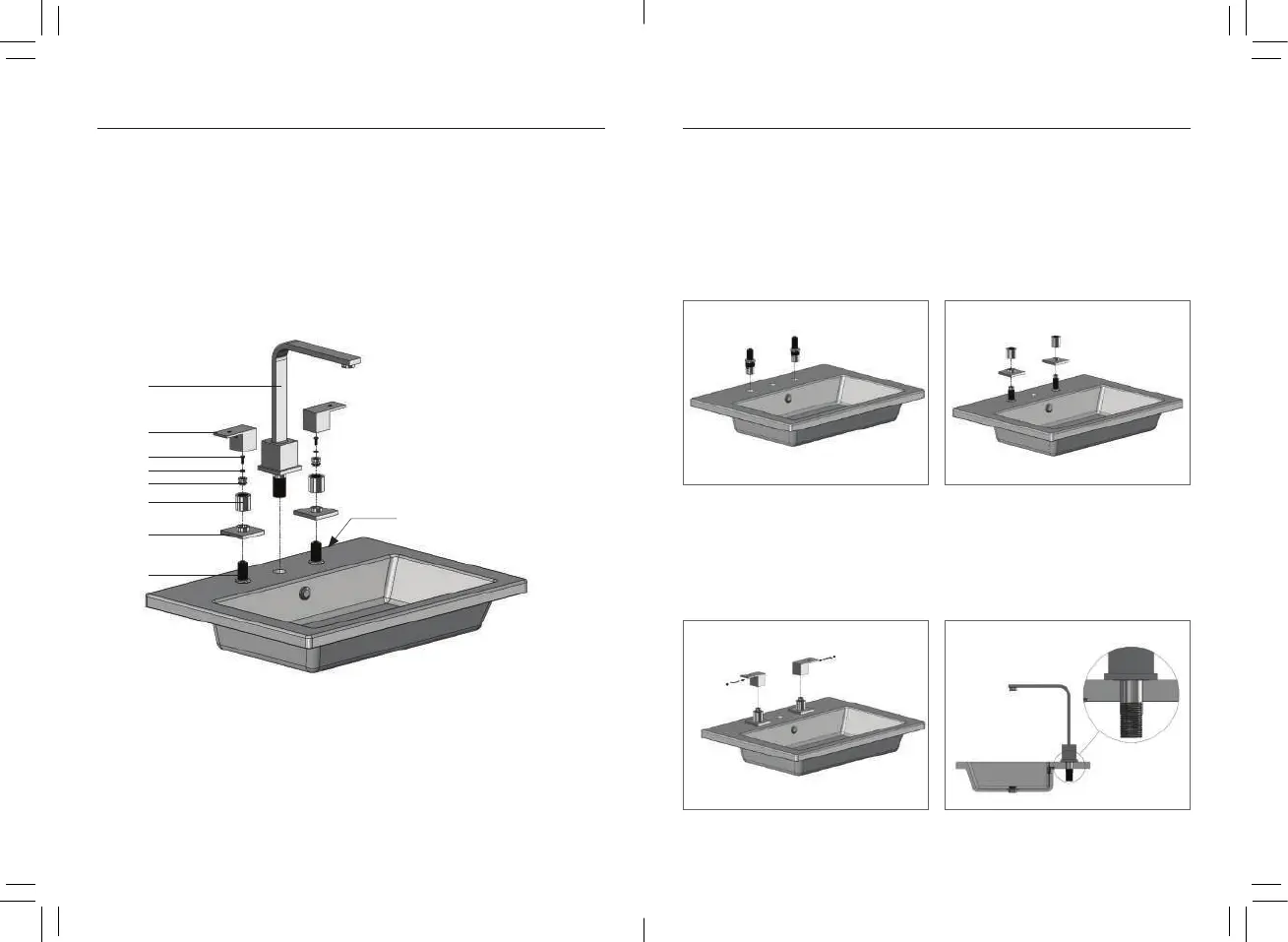

BASIN SET / HOB SET
1. Hot cartridge
2. Back plate
3. Connector
4. Fibre washer
5. Screw
6. Fixing nut
7. Handle
8. Cold cartridge
9. Spout
9
7
5
4
3
6
2
1
8
INSTALLATION INSTRUCTIONS
1. Disassemble the handle, back
plate, locking nut and fibre
washer from the spindle. Install
the supplied breech assembly
under the basin and install the
spindle into the breach seat and
ensure the spindle sits tightly and
correctly.
2. Install the fibre washer then
locking nut back onto the spindle
and tighten. Slide the cover plate
and fixing nut over the spindle
and hand tighten.
3. Install the handles and tighten
the grub screw (ensure the
spindles are turned to the
o position and the handles
are aligned correctly before
tightening the grub screw).
4. Position the spout to the
center of the hole and mount
to assembly breech. Tighten all
fittings and test for leaks.
