| 1514

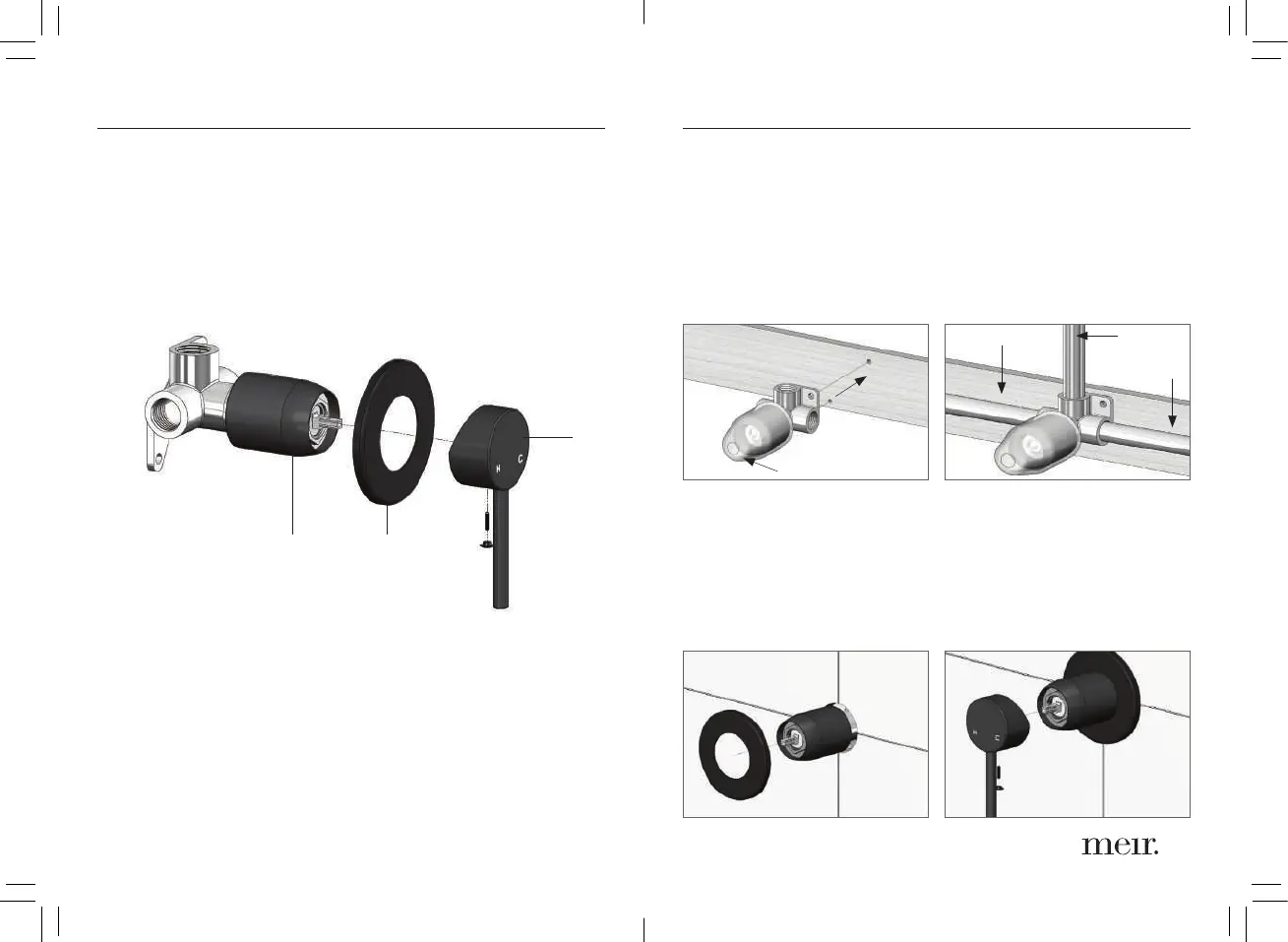

WALL MIXER
1 2
3
1. Body
2. Backplate
3. Handle
INSTALLATION INSTRUCTIONS
1. Fix the body of the mixer to a
suitable fixing plate or noggin.
Ensure the mixer is level and
will have enough of the body
exposed to install the plate
(part 2) and handle (part 4).
IMPORTANT: Ensure the plastic
protector cover remains over
the body during installation.
2. Install the hot (on the left)
and cold (on the right) water
connections. Once all the fittings
have been tightened, check for
leaks and correct operation of
the mixer.
3. Remove the protective covers
and carefully slide the back plate
(part 2) over the mixer/diverter
bodies until it is firm against the
wall (it is recommended to apply
a clear sealant behind the back
plate to ensure water cannot run
behind the plate).
4. Fit the handle (part 3) ensuring
they are secured correctly after
tightening.
Protective Plastic cover
for during installation.
Hot water inlet
Cold water
inlet
Outlet to
shower
