PULL-OUT KITCHEN MIXER INSTALLATION INSTRUCTIONS

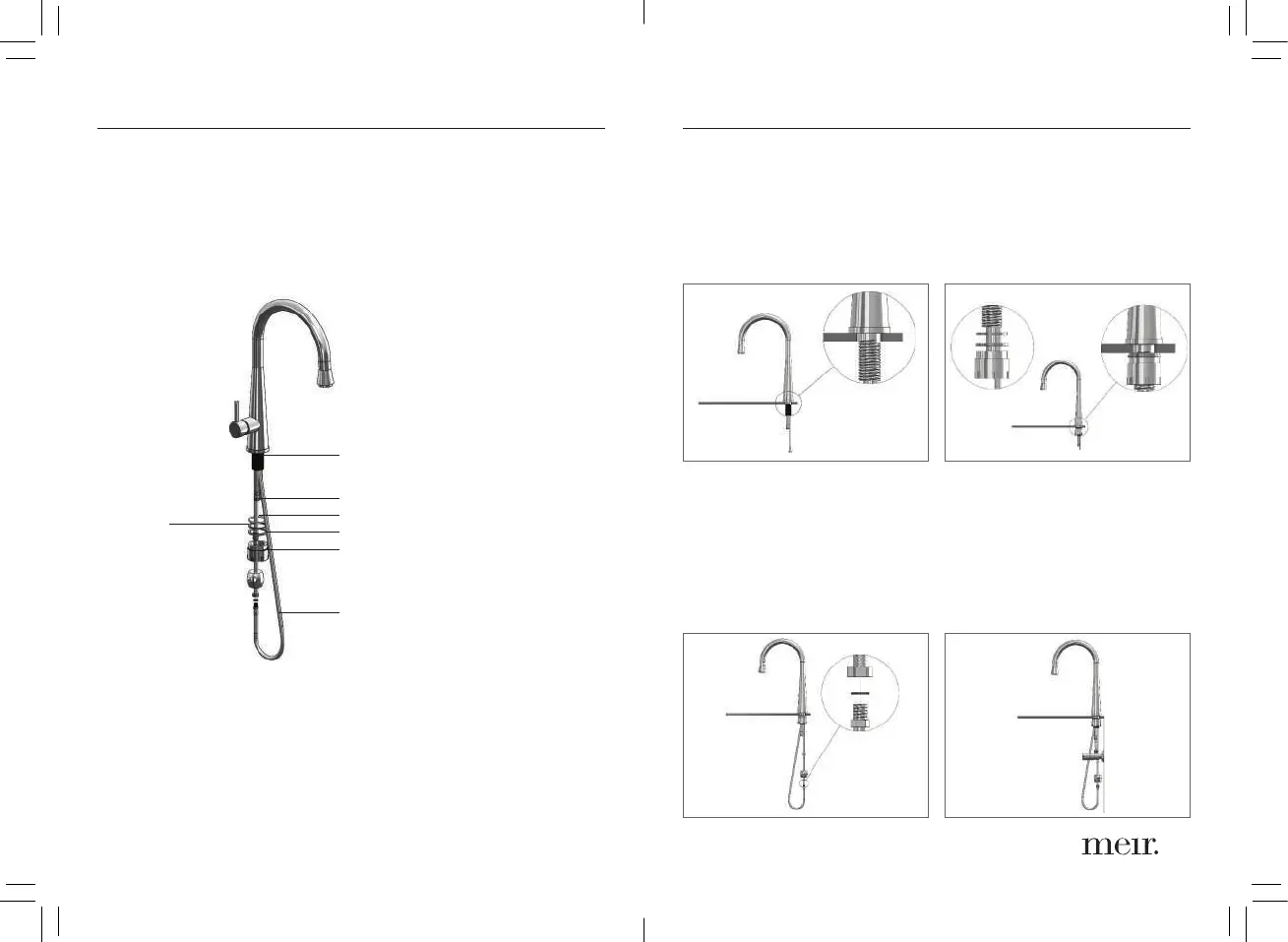

1. Position the mixer over the
center of the hole to be used
for mounting. Ensuring the
flexible hoses and threaded
tube are pushed through first.
2. Place the rubber seal (part 2)
over the flexible hoses and push
up until it is firm against the
surface being mounted on, then
push (part 5 + part 6) the fixing
plate and fixing nut over the
flexible hoses and tighten firmly.
3. Attach the counter weight to
the pull out flexible hose (part 2)
DO NOT TIGHTEN (as the
counter weight will need to be
adjusted later on. Connect the
flexible hoses and tighten (part 7)
to the water outlet ensuring the
rubber seal is not missed.
4. Adjust the counter weight now
to ensure the hose will retract
correctly, then tighten. Connect
the flexible hoses to the isolating
stop cocks (check that as the
hoses are being tightened that
they are not loosening on the
mixer body). Test for leaks.
1
2
3
5
6
7
1. Threaded tube
2. Flexible hoses
3. O-ring
4. Rubber seal
5. Fixing plate
6. Fixing nut
7. Inlet hoses
4
