WALL SPOUT AND MIXER

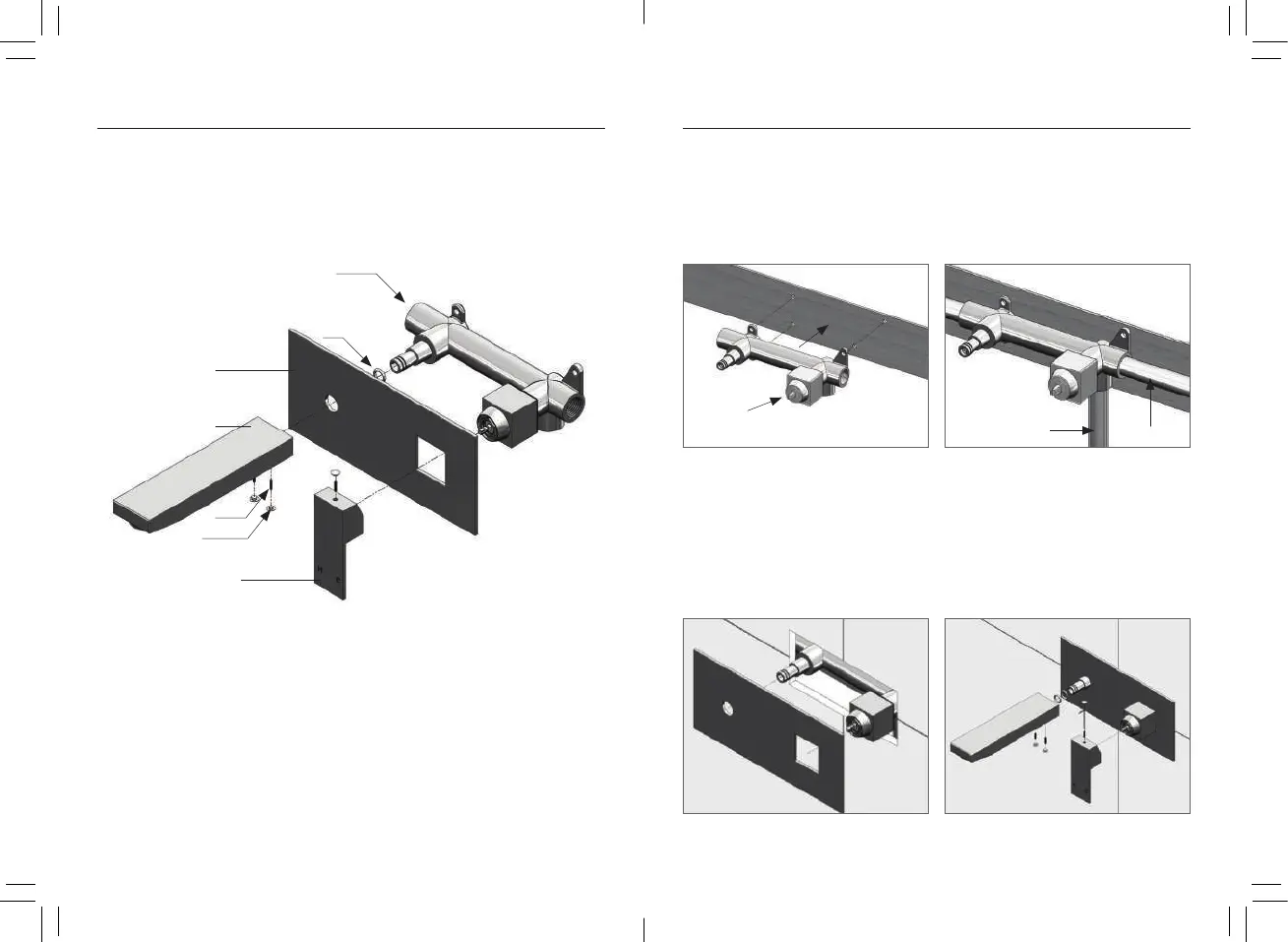

1. Body
2. Back plate
3. Spout
4. Handle
5. O-ring
6. Screw
7. Decor knob
1
7
6
5
2
4
3
INSTALLATION INSTRUCTIONS
1. Fix the body of the mixer to a
suitable fixing plate or noggin.
Ensure the mixer is level and
will have enough of the body
exposed to install the plate
(part 2) and spout (part 3).
2. Install the hot (Bottom) and
cold (Right) water connections.
Once all of the fittings have been
tighten, check for leaks and
correct operation of the mixer.
3. Remove the protective covers
and carefully slide the back plate
(part 2) over the mixer and spout
bodies until it is firm against the
wall (it is recommended to apply
a clear sealant behind the back
plate to ensure water cannot run
behind the plate).
4. Fit the handle (part 4) and
spout (part 3) ensuring they are
secured correctly (the spout has
two grub screws which need to
be tightened at the same time
in sequence) failure to follow
this step can result in the spout
not lining up.
Protective Plastic cover
for during installation.
Hot water inlet
Cold
water inlet
