WALL SET
(CONCEALED SHOWER/BASIN/BATH
BREECH ASSEMBLY SHOWN IS SOLD SEPARATELY)

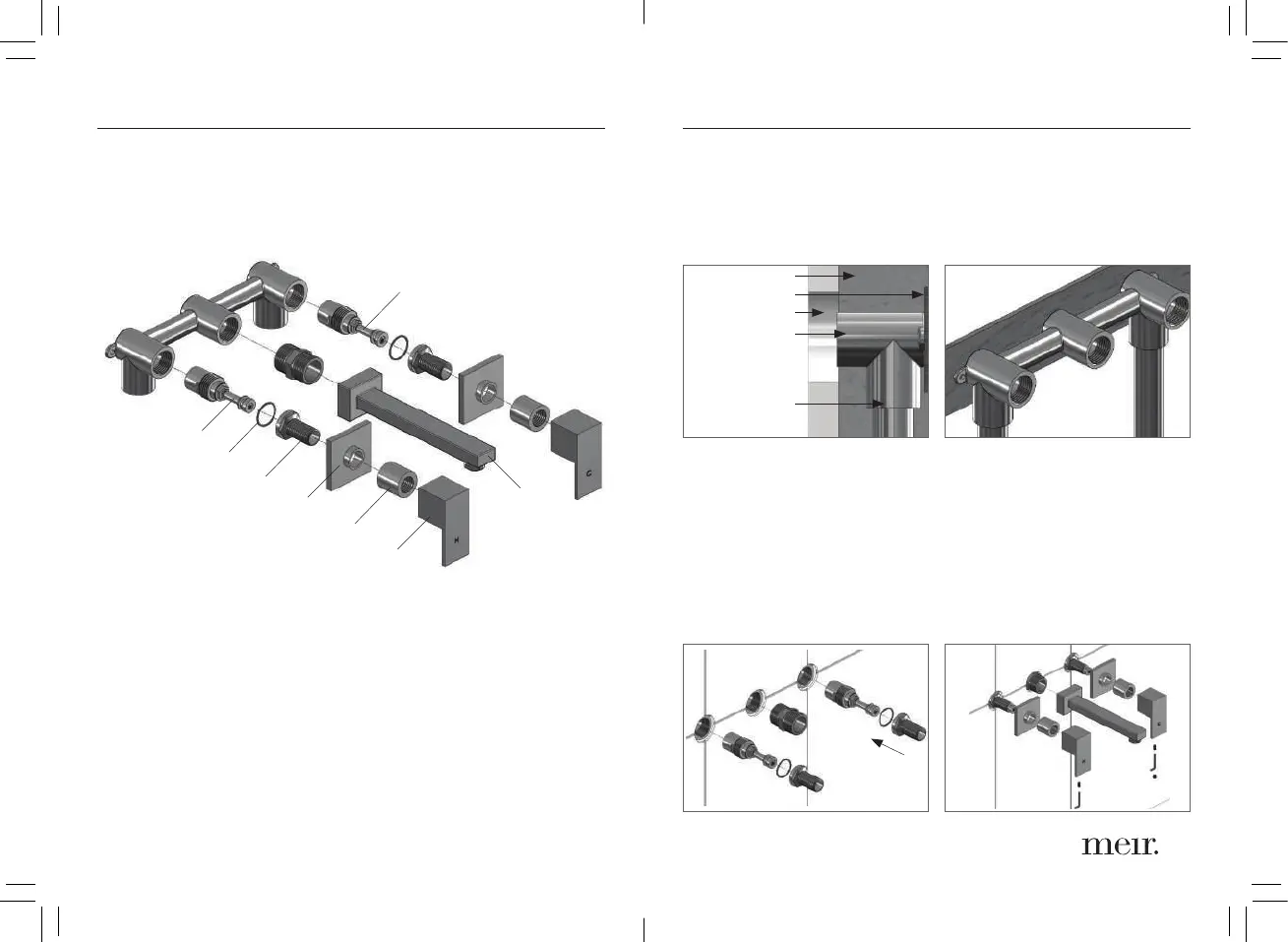

1. Hot cartridge spindle
2. Fibre washer
3. Locking nut
4. Back plate
5. Fixing nut
6. Handle
7. Cold cartridge
8. Spout
1
2
3
7
4
5
6
8
INSTALLATION INSTRUCTIONS
1. (A Typical Installation) Fix the
concealed assembly to a suitable
fixing plate or noggin. Ensure the
assembly is finished level with
surface face as per the below
diagram.
2. Install the hot (bottom left)
and cold (bottom right) water
connections. Once all the fittings
have been tightened, check for
leaks and correct operation of
the assembly.
3. Now install the wall tops and
insert a 1/2-inch male BSP
threaded pipe into the center
outlet using threaded tape or
plumbers tape (not provided)
ensuring all the fittings are
tight and tested for leaks and
operation. Apply clear sealant
if required.
4. Fit the handles, plates and
spout ensuring they are secured
correctly, as per their individual
installation guides.
Wall stud area
Wall covering/tiles
Top seat body
The seat should
be positioned
5-20mm away
from the front of
the wall/tiles
Noggin
