MELAG MELAprint 42 - Initial Commissioning: Connections; Preparing and Connecting Cables

Chapter 2 – Commissioning
9
Chapter 2 – Commissioning
Preparing the connections
1. Tie a loop in the connection cable c. 2 cm from the socket.
2. Surround the bow in the connection cable with the EMC filter.

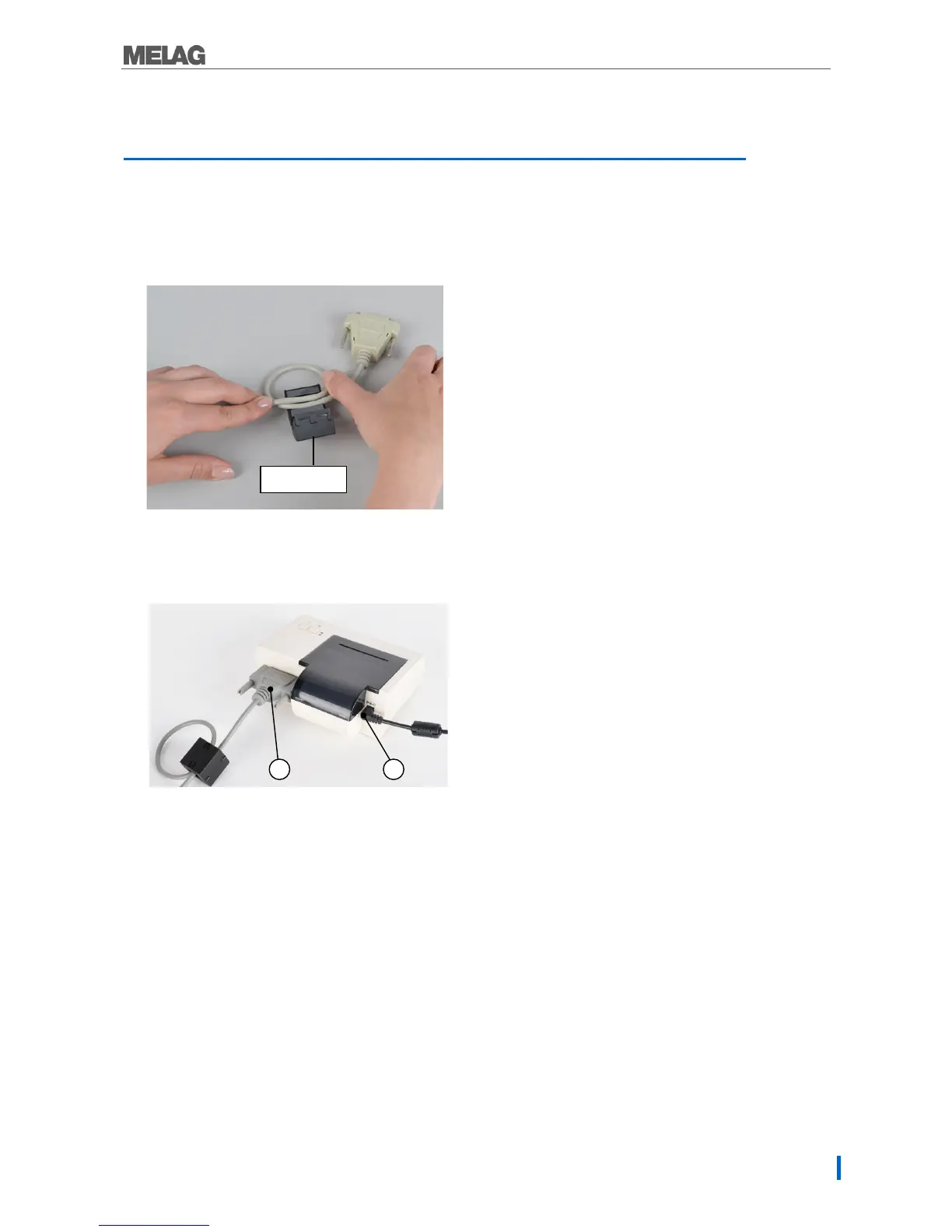

Fig. 5: Preparing the connection cable
3. Insert the socket (Fig. 6, pos. 1) of the connection cable in the RS232 connection of the log printer.
Fig. 6: Connecting the log printer
4. Connect the power supply (Fig. 6, pos. 2) with the DC connection of the log printer.
EMC filter
2
1
