SERVICE - UIS
1
3
9
8
6
7
4
12
11
page 20

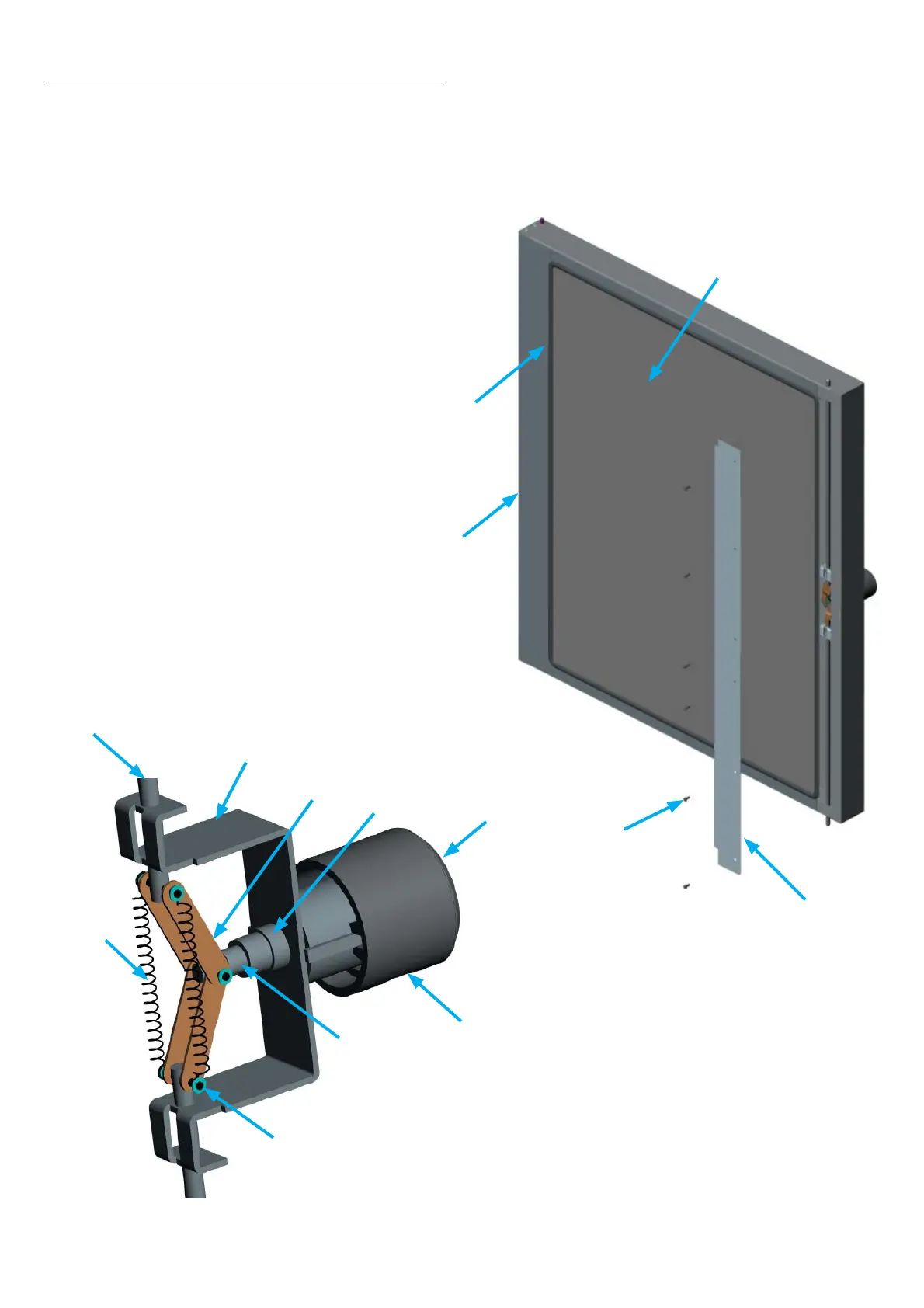

19.3. Door closure – maintenance and dismantling
Release the screws and remove the closure cover. (On Models 600-800 there is no closure cover,
only unscrew and lift the radiation shield)
On back-ventilated doors the insulation has to be removed completely and the air guides removed.
The door closure can now be dismantled in the order 1 to 5
After removing the clips (12) it is possible to dismantle the tension spring (11), the spindles (10),
the closure arms (9) and the closure bolt (8).
•
•
•
•
Closure cover
Screws
Door
Door seal
Radiation shield
