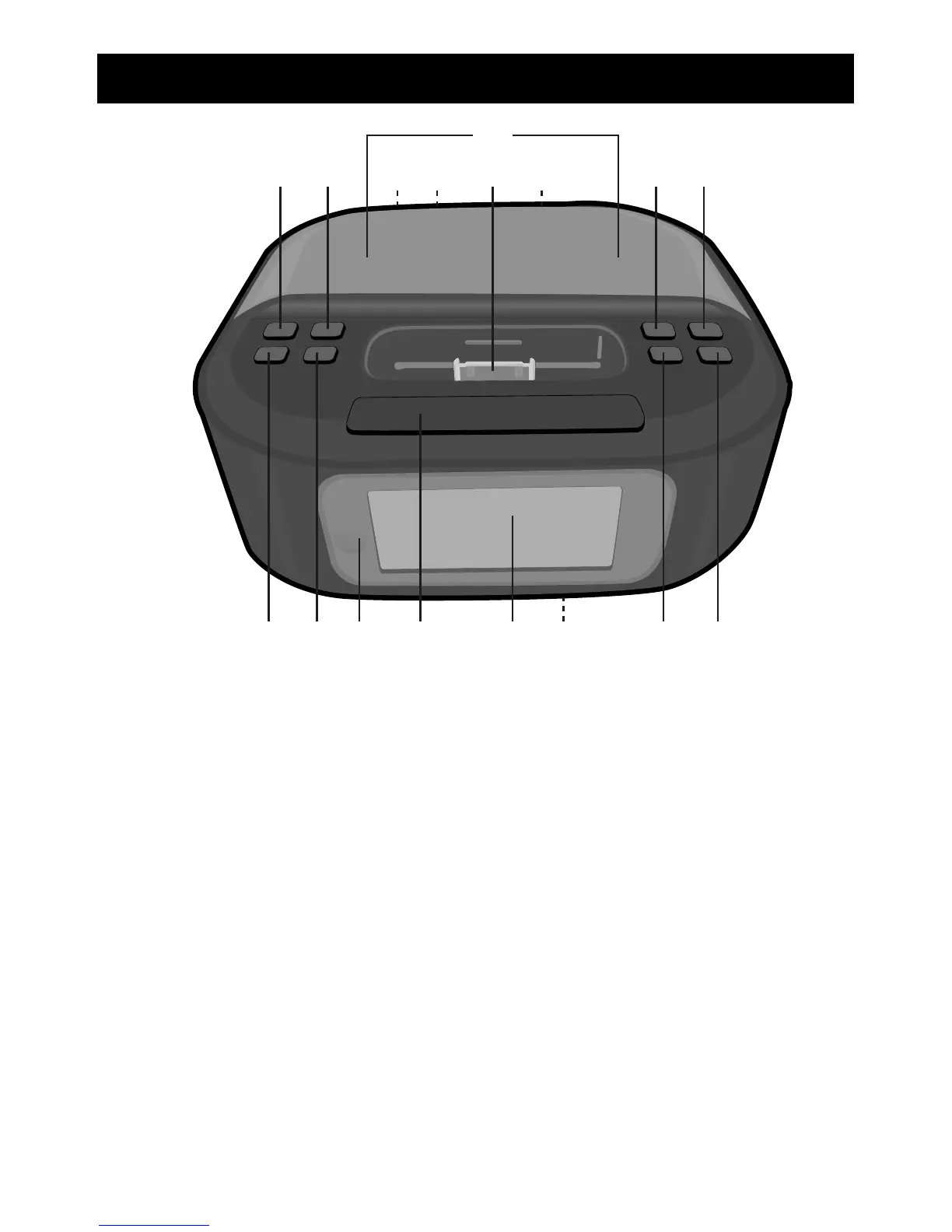

LOCATION OF CONTROLS
1
9
10 12 1311 14 15 16
2 7 85
17
3 4 6
1. TIME SET/Tune/Skip/
Search Down o Button
2. ALARM SET/Tune/Skip/
Search Up n Button
3. FM Wire Antenna (Rear of
Unit)
4. LINE IN Jack (Rear of Unit)
5. iPod Compartment with
Connector (for use with
Universal Docks)
6. DC 9V Jack (Rear of Unit)
(AC ADAPTER PART NO.
2295-05268-E300*)
7. ALARM Button
8. VOLUME +/MIN (Minute) +
Button
9. Power Button
10. Play/Pause (®p) Button
11. Remote Sensor
12. SNOOZE/DIMMER Button
13. Display
14. Battery Compartment
(Bottom of Unit)
(BATTERY COVER PART
NO. 4622-05268-0010*)
15. MODE Button
16. VOLUME –/HR (Hour) +
Button
17. Speakers
*Consumer Replaceable Part
(See page 18 to order.)
FRONT/TOP
