11

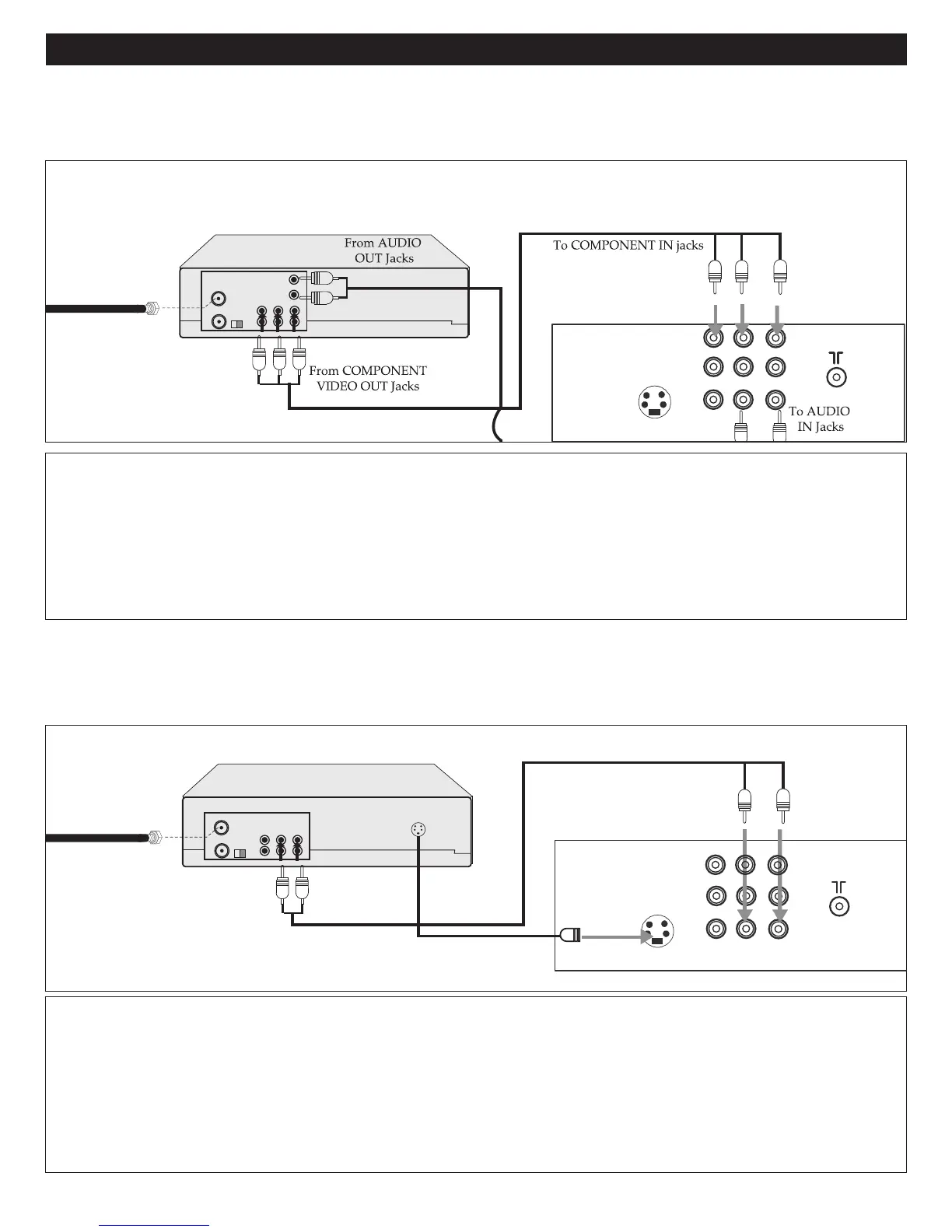

CONNECTION FROM AN EXTERNAL UNIT (CONTINUED)
CONNECTION USING S-VIDEO CABLE:
Follow the instructions below to connect an S-VIDEO VCR/DVD to your television using an S-video cable. (CABLES NOT
INCLUDED.)
1. For VCR, connect the cable, satellite or incoming antenna to the ANT jack on the rear of the VCR.
2. Connect the left and right audio cable from the DVD/ VCR’s Audio OUT jacks to the TV’s left and right AUDIO 1 IN
jacks.
3. Connect the DVD/VCR’s S-VIDEO OUT jack to the TV’s S-VIDEO IN jack.
4. Press the INPUT button until S-VIDEO appears on the TV screen.
NOTE: If the S-VIDEO is not in use, please unplug the cable. Otherwise, AV1 signal cannot be shown.
VCR/DVD
AUDIO Cord
From VCR OUT jacks
INCOMING CATV
CABLE (VCR)
To S-VIDEO IN jack
1. Connect the cable, satellite or incoming antenna to the VHF/UHF IN jack on the rear of the VCR or DVD player.
2. Connect the left and right audio cable from the DVD/ VCR’sAudio OUT jacks to the TV’s left and right AUDIO 1 IN jacks.
3. Connect the component cables (not included) from the DVD's Y, Pb/Cb, Pr/Cr OUT jacks to the TV’s Component IN (Y, Cr, Cb) jacks.
4. Press the INPUT button until component appears on the TV screen.
VCR/DVD
AUDIO/VIDEO Cord
INCOMING CATV
CABLE (VCR)
CONNECTION USING A COMPONENT CABLE:
Follow the instructions below to connect an external unit, such as a VCR or a DVD player, to your unit using the Y, Pb, Pr
jacks. (CABLES NOT INCLUDED.)
VCR or DVD player
To Next Page
