POWER SOURCE

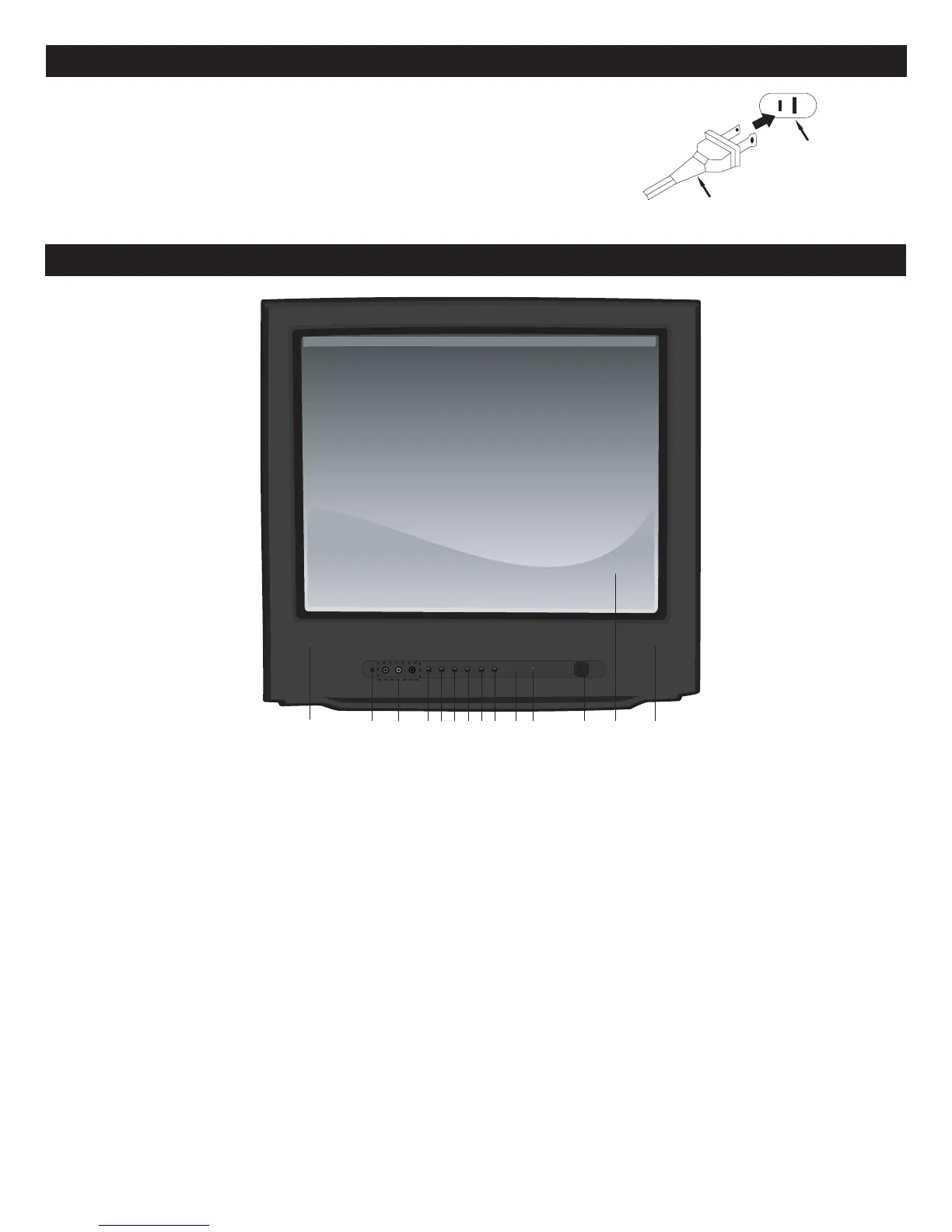

LOCATION OF CONTROLS
1. Headphones Jack
2. Audio 2 IN/Video 2 IN Jacks–Insert A/V cables from
another unit (i.e. DVD player) into the A/V 2 IN jacks.
3. TV/AV Button–Press to select the desired source.
4. MENU Button–Press to access the on-screen menu.
5. VOLUME Down Button–Press to lower the volume
or navigate left in the setting menu.
6. VOLUME Up Button–Press to raise the volume or
navigate right in the setting menu.
7. CHANNEL Down Button–Press to select a lower-
numbered channel or navigate down in the
setting menu.
8. CHANNEL Up Button–Press to select a higher-
numbered channel or navigate up in the setting menu
9. Remote Sensor
10. Power Indicator–Standby light red, Power On light
green–Lights red when the unit is Standby mode and
lights green when the unit is on.
11. Power Button–Press to turn the TV on; the Power
indicator will light green. Press again to turn the TV off;
the Power indicator will light red.
12. Screen
13. Speakers
FRONT
Insert the AC plug (with the 2 blades) into a conveniently located AC outlet having
120V, 60Hz.
NOTE: The AC plug supplied with the unit is polarized to help minimize the possibility
of electric shock. If the AC plug does not fit into a nonpolarized AC outlet, do not file
or cut the wide blade. It is the user’s responsibility to have an electrician replace the
obsolete outlet.
NOTE:
When setting the TV Menus, the Channel Up/Down buttons are used as Navigation Up/Down and the
Volume Up/Down buttons are used as Navigation Right/Left.
To Next Page
