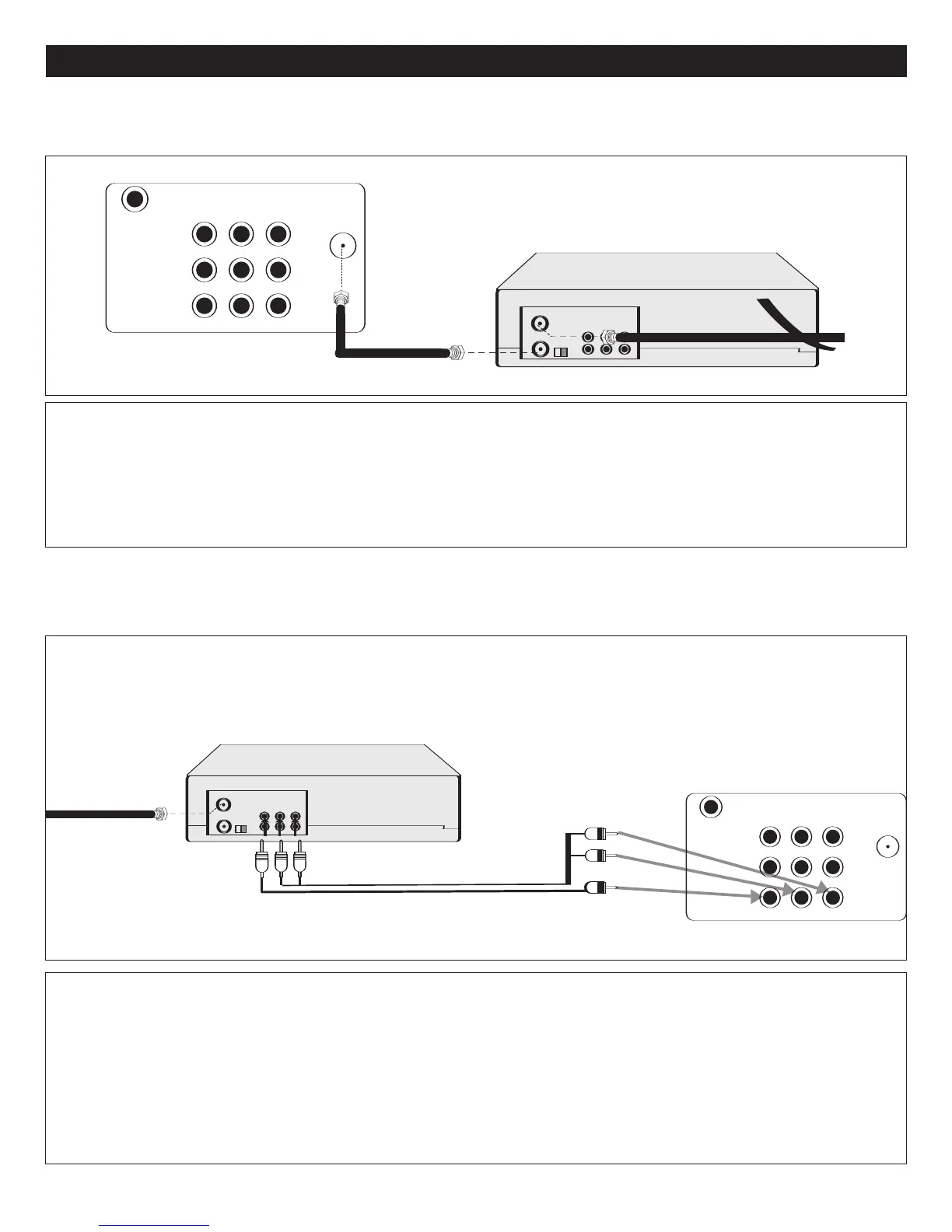

CONNECTION FROM AN EXTERNAL UNIT
CONNECTION USING COAXIAL CABLE:
Follow the instructions below to connect an external unit, such as a VCR, to your unit using a 75 ohm coaxial cable. (CABLES
NOT INCLUDED.)
1.
Connect the cable, satellite or incoming antenna to the VHF/UHF IN jack on the rear of the external unit.
2. Connect a 75 ohm coaxial cable from the external unit’s 75 ohm OUT jack to the TV Antenna jack on the rear of the unit.
3. Press the TV/AV button until regular TV or CATV appears on the TV screen and press PLAY on the external unit to view.
NOTE: If you are in the inner DVD mode, press the TV/DVD button to change to TV/AV mode first.
1. Connect the cable, satellite or incoming antenna to the VHF/UHF IN jack on the rear of the VCR.
2. Connect the left and right audio cables from the external unit’s Audio OUT jacks to this unit’s AUDIO 2 IN jacks.
Connect the external unit’s Video OUT jack to this unit’s VIDEO 2 IN jack.
3. Press the TV/AV button until VIDEO2 appears on the TV screen.
NOTE: If you are in the inner DVD mode, press the TV/DVD button to change to TV/AV mode first.
VCR/DVD
AUDIO/VIDEO Cord
From VCR OUT jacks
INCOMING CATV
CABLE (VCR)
CONNECTION USING AUDIO/VIDEO CABLES:
Follow the instructions below to connect an external unit, such as a VCR or a second DVD player, to your unit using
Audio/Video cables. (CABLES NOT INCLUDED.)
VCR
VCR (or second DVD)
