13
CONNECTION TO AN EXTERNAL UNIT (CONTINUED)

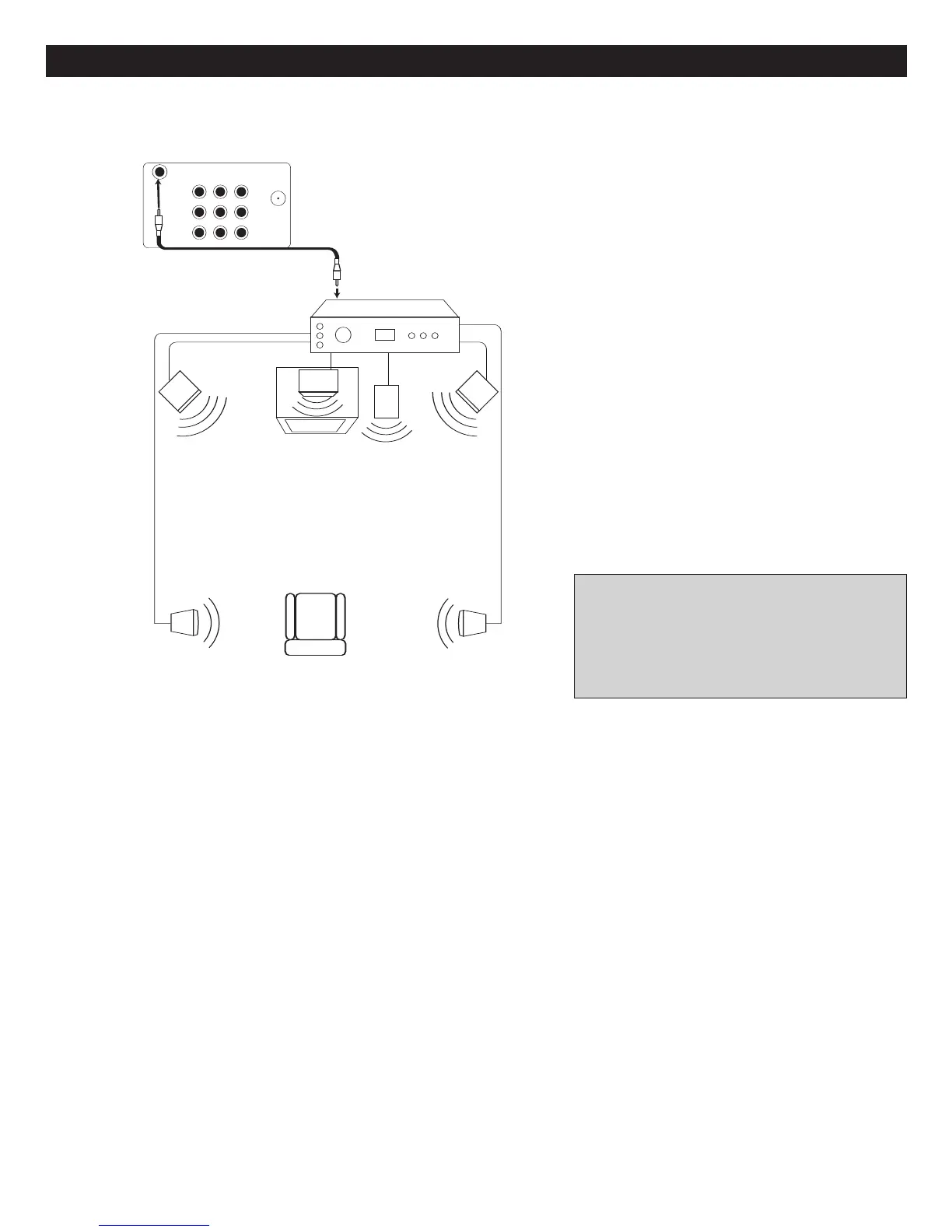

CONNECTION USING THE COAXIAL JACK
1
3
2
9
5
4
6
78
Coaxial Cable
To Digital
A
udio Input
F
rom
D
igital Out
From
V
ideo Out
NOTES FOR CONNECTING TO A SUBWOOFER:
•
When connecting, make sure the power is of
f and all units are unplugged before making any connections.
Place the subwoofer, front, rear and center
speakers in locations as shown/described
here. After correctly positioning the speakers,
perform the Tone Test on the AV Amplifier and
adjust the volume controls until the desired
sound is achieved. For best results, sit in the
viewing position and have someone adjust the
volumes for you; this will enable you to set the
optimal levels.
1. Front Left Speaker
2. This Unit
3. Center Speaker–can be located on top or below the
Television.
4.
Sub-woofer–
can be located anywhere in the room.
5. Front Right Speaker
6. Viewing/Listening Position–
The best listening position
is obtained by positioning the chair, sofa, etc. in the
middle of all the speakers.
7. Rear Left Speaker
8.
Rear Right Speaker
9. AV Amplifier w/Dolby Digital Decoder/DTS Decoder
NOTE:
• The rear speakers can also be located on
the side wall facing the viewing position and
each other. Make sure the viewing position
is located between the two speakers in this
case. Experiment to find optimal position.
To Next Page
